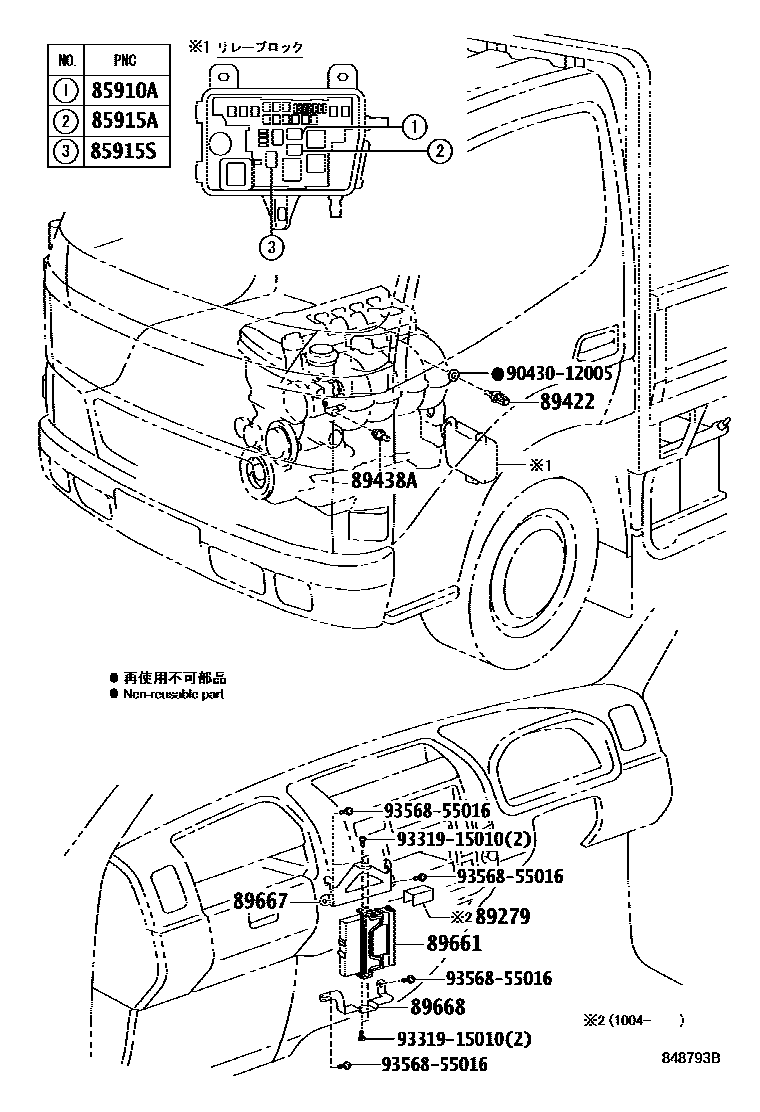

ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iTRU300,340,500200705-201106

85915ARELAY, MAIN

main90987-02012iTRU300,340,500200705-201106

85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)

main90987-02012iTRU300,340,500200705-201106

89279COVER, ENGINE CONTROL COMPUTER

main89279-37070iTRU300,340,500201004-201106

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iTRU300,340,500200705

89438ASWITCH, POWER STEERING OIL PRESSURE

main89438-33010iTRU300,340,500200705-201106

89661COMPUTER, ENGINE CONTROL

main89661-37780iTRU300,340,500200705

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-37110iTRU300,340,500200705

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-37100iTRU300,340,500200705

9043012005

main90430-12005

9331915010

main93319-15010

9356855016

main93568-55016

12 parts on this diagram · 1 diagram in section
