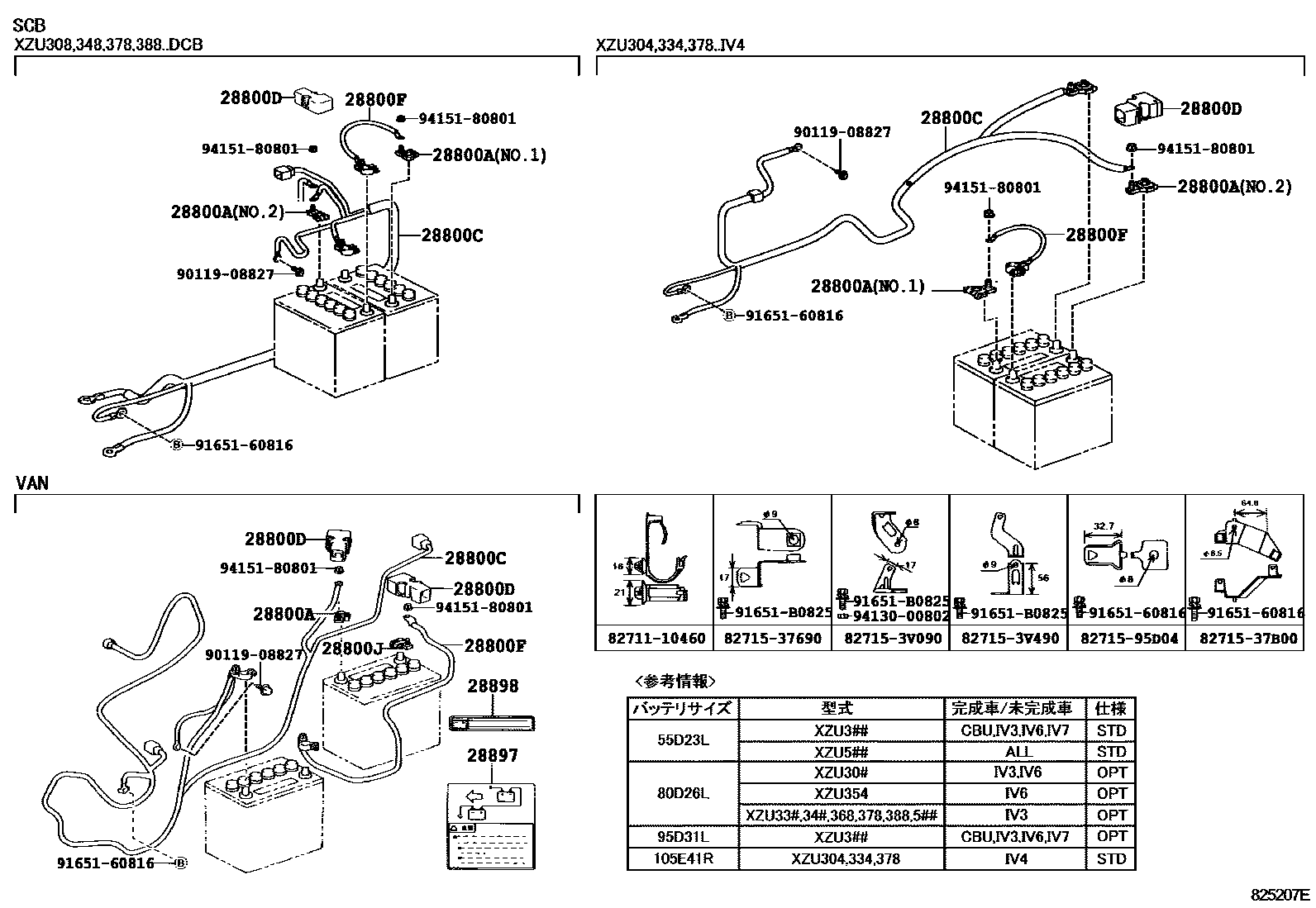

BATTERY & BATTERY CABLE

0001 1 0002 1 0003 1

28800ATERMINAL, BATTERY POSITIVE

main90982-05040iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB200610

main90982-05044iN04C..XZU508..VAN200610

main90982-05056iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB200610

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82122-37B80iN04C..XZU304..6FC..(CBU,IV3);N04C..XZU304,354,554..MTM..(CBU,IV3,IV6);N04C..XZU308,314,33#,34#,50#,538,548..(DCB,SCB)..(CBU,IV3,IV6)200610

main82122-37B90iN04C..XZU304..IV7200610

main82122-37C00iN04C..XZU324,524200610

main82122-37C10iN04C..XZU304,334..IV4200610

main82122-37C20iN04C..XZU368,378,388,568..CBU,IV3200610

main82122-37C30iN04C..XZU378..IV4200610

main82122-37C40iN04C..XZU508..VAN200610

main82122-37D50i2TRFE..TRU300..T4..20T200705

main82122-37D60i2TRFE..TRU300,340,500..SCB200705

main82122-37D70i2TRFE..TRU340,500..T4..IV3200705

main82122-37D80i1BZFPE..BZU300..DM6,T4200705

main82122-37D90i1BZFPE..BZU340;1BZFPE..BZU300..T3;1BZFPE..BZU300..T4..20T..IV3200705

main82122-37E00iN04C..XZU30#,33#,34#,354,508,538,548,554..(DCB,SCB)..6FC..DCRTJ200610

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-37071×2i1BZFPE..BZU340;N04C,1BZFPE..BZU300,XZU508..03S,06S,T3;1BZFPE,2TRFE..BZU300,TRU340,500..T4..20T..IV3; N04C,2TRFE..TRU300,XZU304,334,34#,354,378,388,548;N04C,1BZFPE,2TRFE..BZU300,TRU340,500,XZU308,314,324,338,368,50#,524,538,554,568..DM5,DM6,DM7,T2,T4,T5200610

28800FCABLE, BATTERY TO BATTERY

main82123-37150iN04C..XZU508..VAN200610

main82123-37170iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB200610

main82123-37180i2TRFE..TRU340,500..T4..IV3200705

main82123-37190i1BZFPE..BZU340;1BZFPE..BZU300..T3;1BZFPE..BZU300..T4..20T..IV3200705

28800JTERMINAL, BATTERY NEGATIVE

main90982-06028iN04C..XZU508..VAN200610

28897PLATE, BATTERY CAUTION

main28897-54030i1BZFPE..BZU340;1BZFPE..BZU300..T3;1BZFPE,2TRFE..BZU300,TRU340,500..T4..20T..IV3200705

main28897-78020iN04C..XZU508..VAN200610

28898PLATE, BATTERY

main28898-78010×2iN04C..XZU508..VAN200610

8271110460WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10460

8271537690BRACKET,WIRING HARNESS CLAMP

main82715-37690

8271537B00BRACKET,WIRING HARNESS CLAMP

main82715-37B00

827153V090BRACKET,WIRING HARNESS CLAMP

main82715-3V090

827153V490BRACKET,WIRING HARNESS CLAMP

main82715-3V490

8271595D04BRACKET,WIRING HARNESS CLAMP

main82715-95D04

9011908827

main90119-08827

9165160816

main91651-60816

91651B0825

main91651-B0825

9413000802

main94130-00802

9415180801

main94151-80801

18 parts on this diagram · 3 diagrams in section
