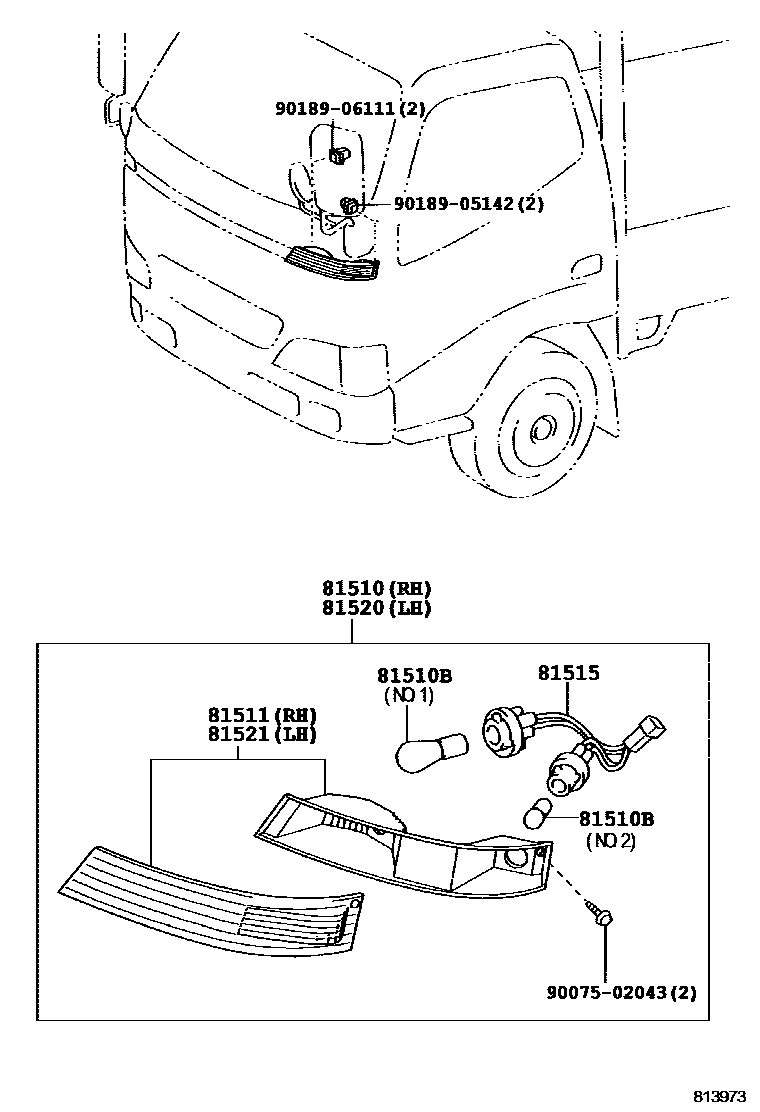

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-37101iXZU334,344,354..35T,40T200610-200908

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-16014×2iXZU334,344,354..35T,40T200610-200908

main90981-16017×2iXZU334,344,354..35T,40T200610-200908

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-37100iXZU334,344,354..35T,40T200610-200908

81515WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main81515-37100×2iXZU334,344,354..35T,40T200610-200908

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-37101iXZU334,344,354..35T,40T200610-200908

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-37100iXZU334,344,354..35T,40T200610-200908

9007502043

main90075-02043

9018905142

main90189-05142

9018906111

main90189-06111

9 parts on this diagram · 1 diagram in section
