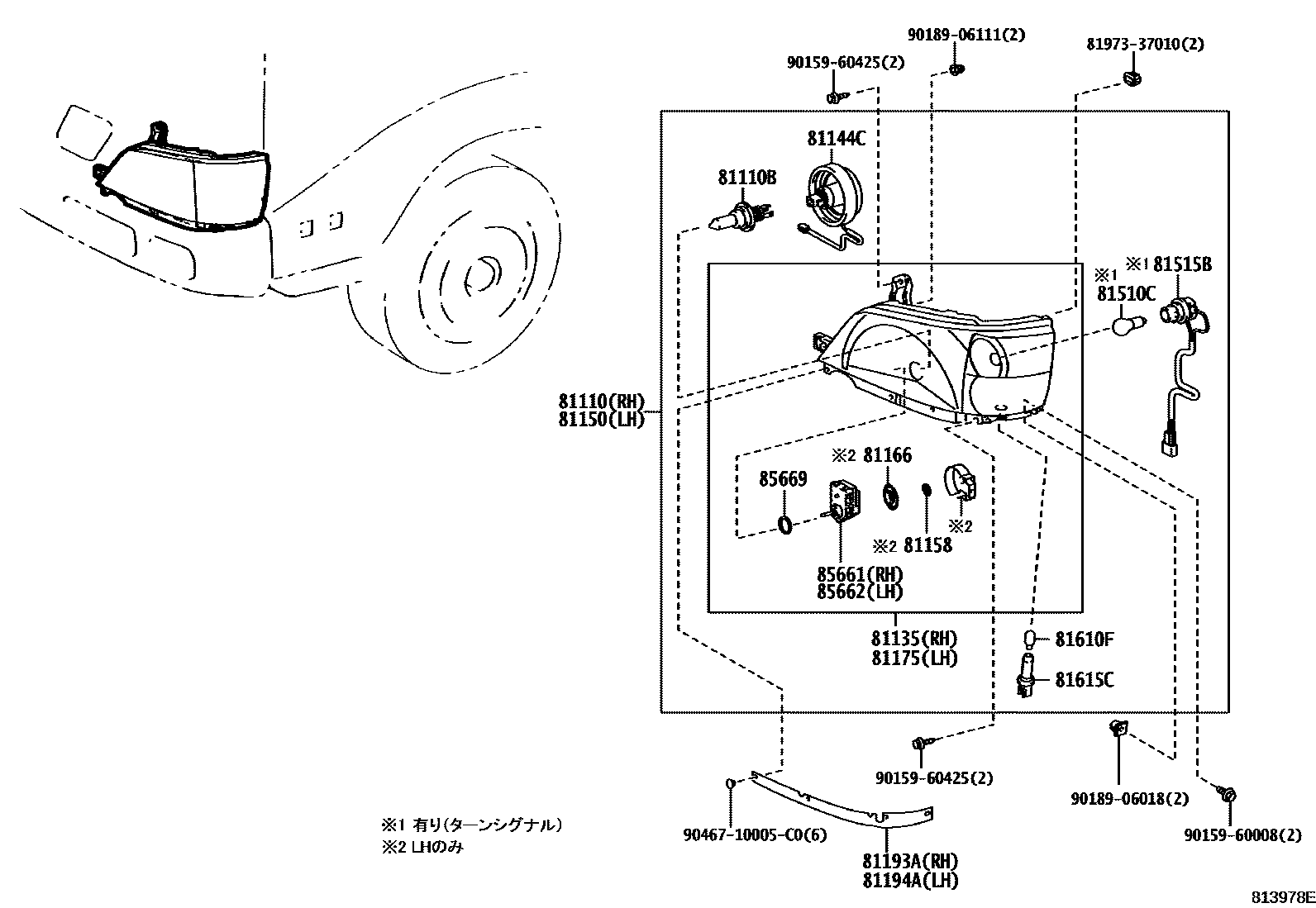

HEADLAMP

81110HEADLAMP ASSY, RH

main81110-37280iBZU300,340,TRU300,340,500200705-201005

main81110-37281iBZU300,340,TRU300,340,500201006-201106

main81110-37290iXZU334..6FC;XZU308..T5..6FC;XZU338..5F..DCRTH;XZU508,538..DCRUD,DCRUE;XZU304..T4..5F..20T..DCRTJ;XZU338,348,508..(03S,06S,T2)..5F;XZU368,378,388,504..DCRTJ,DCRTK,DCRUD;XZU308,324,354,568..(DM5,DM7,T2,T4)..20T;XZU304,338,34#,50#,538,548,554..6FC..(DCRTH,DCRTJ);XZU308,334,504..(T3,T5)..5F..(20T,30T)..(DCRTH,DCRTK);XZU304,314,34#,524,548,554..(20T,30T)..(DCRTH,DCRTK,DCRTM,DCRUE)200610-201003

main81110-37291iXZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568201004-201106

main81110-37310iXZU334,344,354..35T,40T200610-200908

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058×2iBZU300,340,TRU300,340,500200705

main90981-17019×2iXZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

81135UNIT ASSY, HEADLAMP, RH

main81130-37280iBZU300,340,TRU300,340,500200705

main81130-37290iXZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T200610

main81130-37310iXZU334,344,354..35T,40T200610-200908

81144CCOVER, HEADLAMP SOCKET

main81138-37280×2iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

81150HEADLAMP ASSY, LH

main81150-37280iBZU300,340,TRU300,340,500200705-201005

main81150-37281iBZU300,340,TRU300,340,500201006-201106

main81150-37290iXZU334,344,354..35T,40T200908-201003

main81150-37291iXZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568201004-201106

main81150-37310iXZU334,344,354..35T,40T200610-200908

81158BRACKET, HEADLAMP, LH

main81158-25233iXZU334,344,354..35T,40T200908-201106

81166PLATE, HEADLAMP, LH

main81166-25233iXZU334,344,354..35T,40T200908-201106

81175UNIT ASSY, HEADLAMP, LH

main81170-37280iBZU300,340,TRU300,340,500200705

main81170-37290iXZU334,344,354..35T,40T200908

main81170-37310iXZU334,344,354..35T,40T200610-200908

81193APROTECTOR, HEADLAMP, RH

main81193-37060iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

81194APROTECTOR, HEADLAMP, LH

main81193-37060iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-16014×2iXZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T200610

main99132-11210×2iBZU300,340,TRU300,340,500200705

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81138-37200×2iXZU34#..6FC;XZU338..5F..DCRTH;XZU504..DCRTJ,DCRUD;XZU304..5F..30T..IV6;XZU304..6FC..30T..DCRTJ;XZU508,538..DCRUD,DCRUE;XZU33#,50#,538,548..6F,6FC;XZU308,554..(DM5,T5)..(6F,6FC);XZU338,348,508..(03S,06S,T2)..5F;XZU304,324..(DM6,DM7,T4)..20T..DCRTJ;XZU308,354,368,378,388,568..(DM5,T2,T3,T4)..(20T,30T);XZU308,334,504..(T3,T5)..5F..(20T,30T)..(DCRTH,DCRTK);XZU304,314,324,34#,524,548,554..(20T,30T)..(DCRTH,DCRTK,DCRTM,DCRUE)200610-201004

main81138-37351×2iXZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568201004

81610FBULB(FOR CLEARANCE LAMP)

main90981-12015×2iXZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

main99132-12050×2iBZU300,340,TRU300,340,500200705

81615CSOCKET & WIRE, CLEARANCE LAMP

main90075-60004×2iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

8197337010

main81973-37010

9015960008

main90159-60008

9015960425

main90159-60425

9018906018

main90189-06018

9018906111

main90189-06111

9046710005C0

main90467-10005C0

23 parts on this diagram · 1 diagram in section
