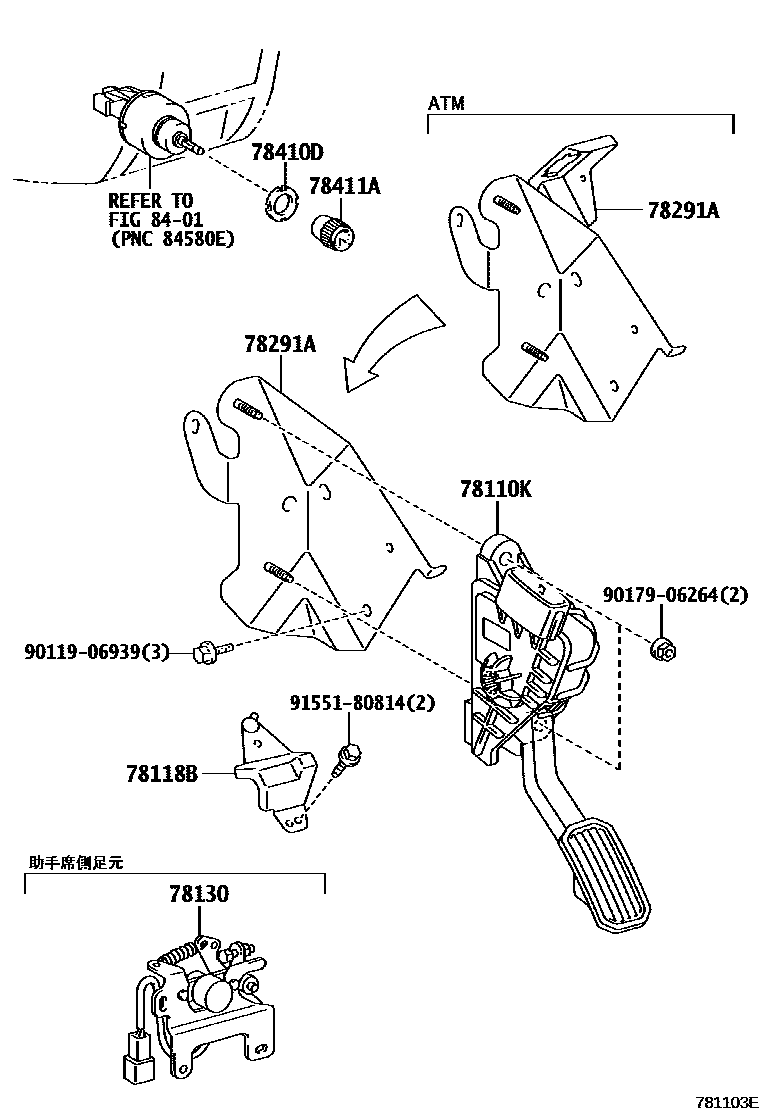

ACCELERATOR LINK

0001 1 0002 1

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78120-35460iTRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106

78118BSTOPPER, ACCELERATOR PEDAL

main78118-37020iTRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

78130BELLCRANK ASSY, ACCELERATOR

main78130-37131iXZU368..T4;XZU368..DM5..IV3;XZU304..(T3,T4,T5)..CBU;XZU304,314,324,354,524,554..IV3,IV4,IV6,IV7;XZU308,33#,34#,378,388,50#,538,548,568..DCB,SCB200610

78291ABRACKET, ACCELERATOR LINK

main78291-37070iTRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM200610

main78291-37090iXZU30#,33#,34#,354,50#,538,548,554..6FC200610

78410DNUT, THROTTLE

main78314-95010iBZU300,340,XZU30#,314,324,33#,34#,354..DCRUE,LPG200705-201106

main78413-95J00iXZU508..T2..5F;XZU504..DCRTJ,DCRUD;XZU508,538,548..DCRUD,DCRUE;XZU50#,538,548,554..SCB..6FC;XZU30#,314,324,33#,34#,354,368,378,388,568;XZU504,524,554..(DM5,DM7,T5)..(DCRTH,DCRUE)200610-200904

78411AKNOB, THROTTLE CONTROL CABLE

main78411-95J01iBZU300,340,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906939

main90119-06939

9017906264

main90179-06264

9155180814

main91551-80814

10 parts on this diagram · 2 diagrams in section
