SEAT & SEAT TRACK

0001 1������ 0002 1������ SCB ��(����������) OR 0003 1������� 2����� ��� 0004 1������� ������ ��� (1+1 ����)0005 1������� 0006 1�� ��� 0007 1�� ��� ��(���� ���� �����) 0008 1�� ��� 0009 1�������

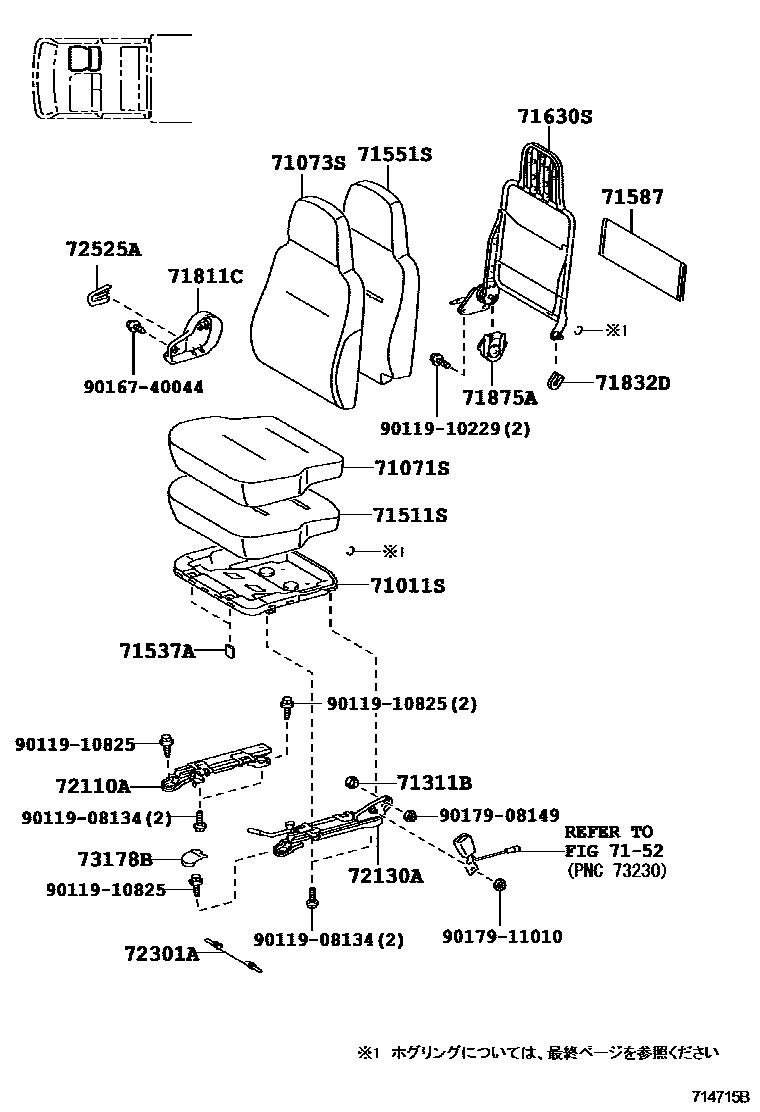

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71610-37010iXZU508..VAN200610

main71610-37020iXZU368,378,388,568..SCB200610

main71610-37050iXZU378,388..DCB;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,50#,524,538,548,554..DCB,SCB200610

main71610-37060iXZU368,378,388,568..SCB200610

sub71610-37061

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-37630-B0iXZU314,324,33#,344,354,368,378..SCB..(CBU,IV3);XZU30#,348,388,50#,524,538,548,554,568..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3)200610-201106

sub71071-37630

main71071-37680-B0iXZU508..VAN200610-200706

main71071-37760-B0iXZU304..(T3,T4,T5)..IV3;XZU304..(DM6,T3,T4,T5)..(CBU,IV6);BZU300,340,TRU300,340,500,XZU308,33#,34#,354,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..(CBU,IV3,IV6)200610-201106

main71071-37770-B0iXZU368,378,388,568..SCB200610-201106

main71071-37770-B1iXZU378,388..DCB;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,50#,524,538,548,554..DCB,SCB200610-201106

main71071-37810-B0iXZU508..VAN200705-201106

sub71071-37810

main71071-37810-B1iXZU508..VAN200705-201106

sub71071-37810

main71071-37820-B0iXZU508..VAN200610-200705

sub71071-37810

main71071-37830-B0iXZU508..VAN200706-201106

sub71071-37830

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71027-37070-B0iTRU300,XZU308,348,378,388..DCB..20T200610-201106

main71027-37080-B0iTRU300,XZU30#,334,348,378,388..DCB200610-201106

main71027-37110-B0iXZU508..VAN200705-201106

sub71027-37110

main71027-37120-B0iXZU304..(T3,T4,T5)..IV3;XZU304..(DM6,T3,T4,T5)..(CBU,IV6);BZU300,340,TRU300,340,500,XZU308,33#,34#,354,368,378,388,50#,538,548,568..SCB..(T2,T3,T4,T5)200610-201106

sub71027-37120

main71027-37130-B0iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB200610-201106

sub71027-37130

main71073-37790-B0iXZU508..VAN200610-200706

main71073-37850-B0iXZU314,324,33#,344,354,368,378..SCB..(CBU,IV3);XZU30#,348,388,50#,524,538,548,554,568..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3)200610-201106

sub71073-37850

main71073-37A00-B0iXZU508..VAN200610-200705

sub71027-37110

main71073-37A10-B0iXZU508..VAN200706-201106

sub71073-37A10

71311BBUSH (FOR FRONT SEAT HINGE PIN)

main90386-12051iXZU508..VAN200610-200705

main90386-12053iXZU508..VAN200610-200705

main90386-12053iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB200610

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-37080iXZU508..VAN200610

main71511-37110iXZU508..VAN200610-200705

main71511-37130iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB200610

main71511-37140iXZU508..VAN200705

7152

71537APROTECTOR, FRONT SEAT CUSHION

main71537-26010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB200610

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-37100iXZU508..VAN200610-200705

sub71551-25060

main71551-37100iXZU314,324,33#,344,354,368,378..SCB..(CBU,IV3);XZU30#,348,388,50#,524,538,548,554,568..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3)200610

sub71551-25060

main71551-37140iXZU508..VAN200706

sub71551-25060

main71551-37210iTRU300,XZU30#,334,348,378,388..DCB200610

main71551-37220iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB200610

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-37020iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB200610

sub71587-37021

main71587-37030iXZU508..VAN200610-200704

sub71587-37020

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-37030iXZU314,324,33#,344,354,368,378..SCB..(CBU,IV3);XZU30#,348,388,50#,524,538,548,554,568..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3)200610

sub71630-25050

main71630-37110iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB200610

sub71630-25060

main71630-37130iXZU508..VAN200610

sub71630-25070

71811CCOVER, RECLINING ADJUSTER, RH

main71811-37010-B0iXZU368,378,388,568..SCB200610-200909

MD.CHARCOAL,TRIM1#

sub71811-37011

main71811-37010-B0iXZU508..VAN200610-200910

sub71811-37011

main71811-37011-B0iXZU314,324,33#,344,354,368,378,388,50#..(SCB,VAN)..(CBU,IV3);XZU30#,348,524,538,548,554,568..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,I200910-201106

main71811-37020-B0iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB200610-200909

MD.CHARCOAL,TRIM1#

sub71811-37021

main71811-37021-B0iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB200910-201106

MD.CHARCOAL,TRIM1#

sub71811-37022

71832DCOVER, FRONT SEAT HINGE, LH

main71832-37010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB200610

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71875-37010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB200610

72110ATRACK ASSY, FRONT SEAT, OUTER RH

main72110-37020iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

72130ATRACK ASSY, FRONT SEAT, INNER RH

main72130-37020iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

72301AWIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH

main72301-37020iXZU368,378,388,568..SCB200610

main72301-37030iXZU508..VAN200610-200704

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-37010-B0iXZU508..VAN200610-201106

MD.CHARCOAL,TRIM1#

main72525-37010-B0iXZU508..VAN200610-201106

main72525-37020-B0iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB200610-201106

MD.CHARCOAL,TRIM1#

73178BCAP, SEAT BELT ANCHOR COVER

main72137-37010-B0iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106

DK.CHARCOAL,TRIM1#

9011908134

main90119-08134

9011910229

main90119-10229

9011910825

main90119-10825

9016740044

main90167-40044

9017908149

main90179-08149

9017911010

main90179-11010

24 parts on this diagram · 9 diagrams in section
