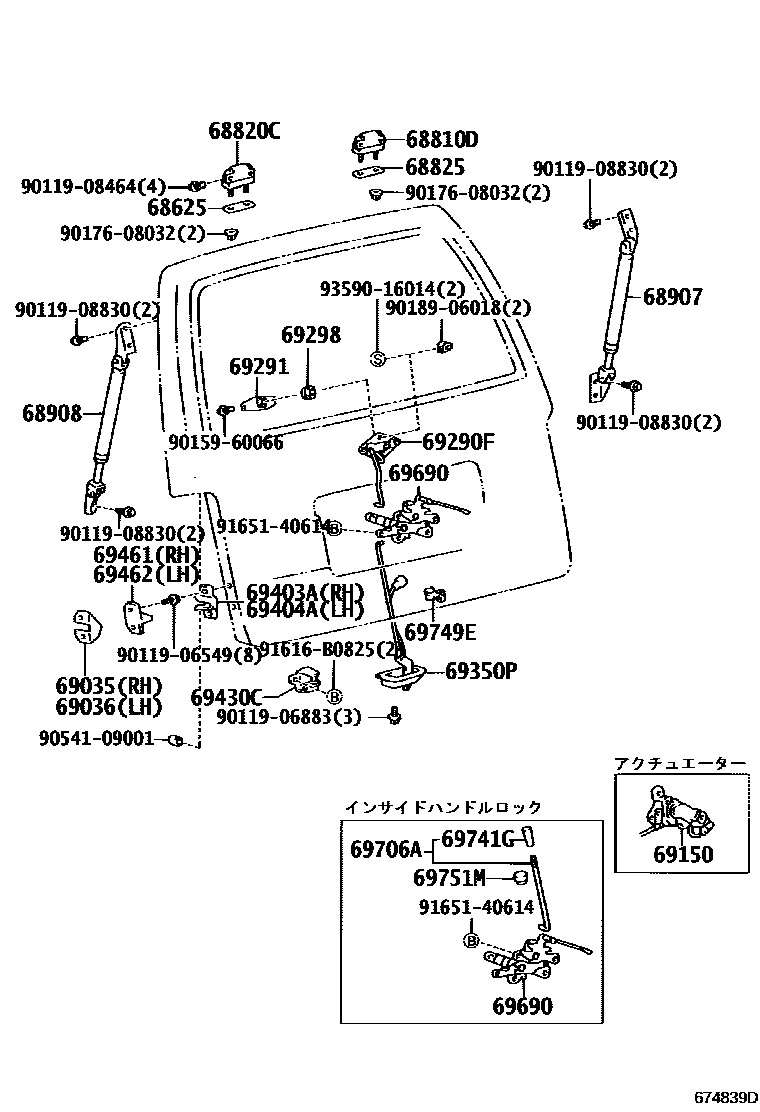

BACK DOOR LOCK & HINGE
68625COVER, BACK DOOR CHECK GUIDE, RH
MD.CHARCOAL,TRIM1#
68810DHINGE ASSY, BACK DOOR, RH
68820CHINGE ASSY, BACK DOOR, LH
68825PLATE, BACK DOOR HINGE
68907STAY SUB-ASSY, BACK DOOR DAMPER, RH
68908STAY SUB-ASSY, BACK DOOR DAMPER, LH
69035GUIDE SUB-ASSY, BACK DOOR SIDE STOPPER, RH
69036GUIDE SUB-ASSY, BACK DOOR SIDE STOPPER, LH
69150ACTUATOR ASSY, BACK DOOR LOCK
69290FHANDLE ASSY, BACK DOOR INSIDE
69291HANDLE ASSY, BACK DOOR INSIDE
MD.CHARCOAL,TRIM1#
69298COVER, BACK DOOR INSIDE HANDLE
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH
69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH
69430CSTRIKER ASSY, BACK DOOR LOCK
69461STOPPER, BACK DOOR SIDE MALE, RH
69462STOPPER, BACK DOOR SIDE MALE, LH
69690CONTROL ASSY, BACK DOOR REMOTE
69706AROD SUB-ASSY, BACK DOOR LOCK REMOTE CONTROL
69741GKNOB, DOOR LOCK CONTROL
BLACK
69749ECLAMP, BACK DOOR LOCK LINK
69751MHOLDER, DOOR LOCK CONTROL KNOB
9011906549
main90119-06549
9011906883
main90119-06883
9011908464
main90119-08464
9011908830
main90119-08830
9015960066
main90159-60066
9017608032
main90176-08032
9018906018
main90189-06018
9054109001
main90541-09001
91616B0825
main91616-B0825
9165140614
main91651-40614
9359016014
main93590-16014
34 parts on this diagram · 3 diagrams in section
