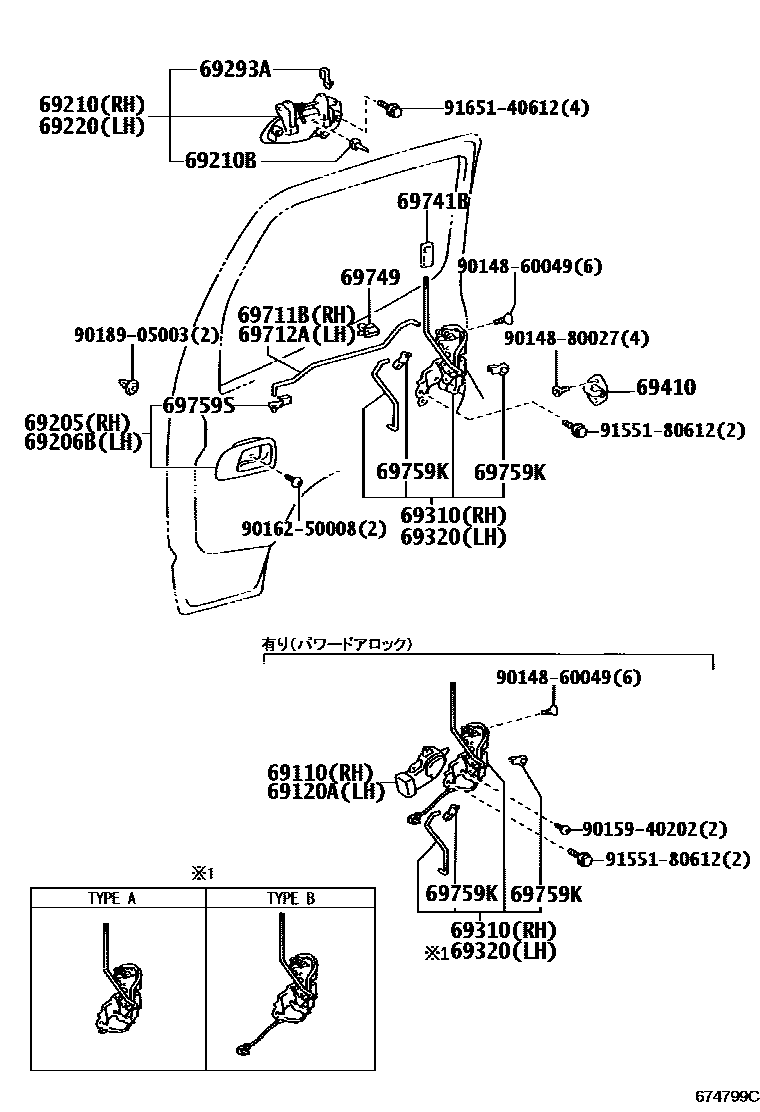

FRONT DOOR LOCK & HANDLE
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
main69110-37060iXZU308,314,324,338,34#..(20T,30T)..(DCRTH,DCRTJ,DCRTK,DCRUE);XZU304,334,354,368,378,388,50#,524,538,548,554,568..(20T,30T)..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV200610
69120AACTUATOR ASSY, FRONT DOOR LOCK, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-37010-B0iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106
MD.CHARCOAL,TRIM1#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-37010-B0iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106
MD.CHARCOAL,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-37020iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69220-37020iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
main69293-12050iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
main69293-12060iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
main69293-12060iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
69310LOCK ASSY, FRONT DOOR, RH
main69310-37070iXZU354..4NO;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,368,378,388,50#,524,538,548,554,568200610
main69310-37080iBZU300,340,TRU300,340,500,XZU308,314,324,338,34#..(20T,30T)..(DCRTH,DCRTJ,DCRTK,DCRUE,EFI,LPG);XZU304,334,354,368,378,388,50#,524,538,548,554,568..(20T,30T)..(DCRTH200610
main69310-37090iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
69320LOCK ASSY, FRONT DOOR, LH
main69320-37060iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
main69320-37110iBZU300,340,TRU300..SCB..(T3,T4);TRU340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..SCB..(T2,T3,T4,T5)..(DCRTH,DCRTJ,DCRUD,DCRUE,EFI)..(CBU,IV3)200610
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69711LINK, FRONT SLIDE DOOR KEY CYLINDER
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
main69711-37010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
main69712-37010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
sub69712-37041
69741BKNOB, FRONT DOOR LOCK CONTROL
main69741-12040-B3iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106
MD.CHARCOAL,TRIM1#
sub69741-12040
69749CLAMP, FRONT DOOR LOCK LINK
main69749-12070iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
69759KSNAP, DOOR LOCK CONTROL LINK
main69759-20040iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
main69759-20050iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
main69759-24010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
main69759-24020iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
69759SSNAP, FRONT DOOR INSIDE HANDLE
main69759-22040iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
main69759-22050iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
9014860049
main90148-60049
9014880027
main90148-80027
9015940202
main90159-40202
9016250008
main90162-50008
9018905003
main90189-05003
9155180612
main91551-80612
9165140612
main91651-40612
25 parts on this diagram · 2 diagrams in section
