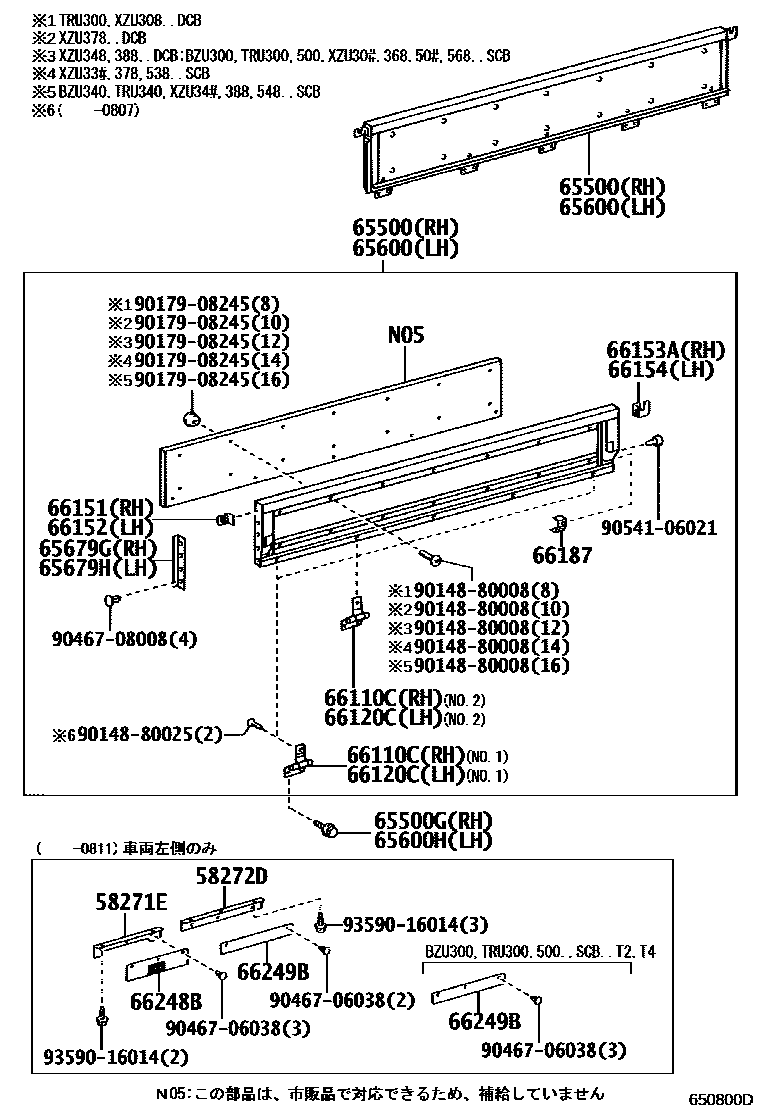

REAR BODY SIDE PANEL

0001 1 0002 1TECS=������� 0005 1TECS=�������� 0008 1�������� ���� 0009 1�������� ���� 0010 15���� ���� 0011 1����� ���

58271EPLATE, FLOOR SIDE, NO.1

main58271-37100iBZU300,TRU300..T3..CBU; BZU300..T4..30T..CBU200705-200811

main58271-37110iBZU340,TRU340,500..CBU;BZU300,TRU300..SCB..T4..CBU200705-200811

58272DPLATE, FLOOR SIDE, NO.2

main58272-37120iBZU300,TRU300..T3..CBU; BZU300..T4..30T..CBU200705-200811

main58272-37130iBZU300,TRU300,500..SCB..(T2,T4)..CBU200705-200811

main58272-37140iBZU300..T4..30T..CBU; BZU340,TRU340..CBU200705-200811

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-37A00iXZU504..DCRTJ..CBU200610-201106

main65500-37A10iXZU504..DCRTJ..CBU200610-201106

main65500-37A20iXZU338,538..CBU200610-201106

main65500-37A30iBZU300,TRU300,XZU304..T3..CBU200610-201106

main65500-37A40iXZU334,378..SCB..CBU200610-201106

main65500-37A80iBZU300,TRU300,500,XZU30#,368,50#,568..SCB..(T2,T4,T5)..WT..CBU200610-201106

main65500-37A90iTRU300,XZU308..DCB..CBU200610-201106

main65500-37B00iXZU308..T2..5F..CBU;XZU508..T2..5F..DCRTH..CBU200610-200908

main65500-37B10iXZU304,504..T4..MTM..CBU;XZU508..T4..5F..(DCRTH,DCRUD)..CBU;XZU308..T5..MTM..(DCRTJ,DCRUE)..CBU;XZU308..SCB..T4..(DCRTJ,DCRUE)..CBU200610-201106

main65500-37C90iXZU348..T4..6FC..CBU;XZU344,548..T4..20T..CBU200705-201106

main65500-37D00iXZU344..20T..CBU;XZU348..T4..6FC..CBU200705-201106

main65500-3V530iBZU300..T4..30T..CBU200705-201106

main65500-3V670iBZU340,TRU340,XZU34#,388,548..SCB..CBU200610-201106

main65500-3V700iXZU378..T3..20T..CBU200610-201106

main65500-3V710iXZU348,388..DCB..CBU200610-201106

main65500-3V720iXZU348..SCB..T4..MTM..(DCRTJ,DCRUE)..CBU200610-201106

main65500-3V730iXZU348..SCB..T4..MTM..(DCRTJ,DCRUE)..CBU200610-201106

main65500-3V810iBZU300..T4..30T..CBU200705-201106

main65500-3V840iXZU504..ST..CBU200610-201106

main65660-37030iBZU300..T4..30T..CBU200705-201106

65500GBOLT, W/WASHER(FOR SIDE GATE, RH)

main90119-08464×8iBZU300,TRU300,500,XZU30#,33#,368,378,50#,538,568..SCB..(T2,T3,T4,T5)..CBU; BZU340,TRU340,XZU34#,388,548..SCB..CBU; TRU300,XZU308,378..DCB..CBU; XZU304,504..T4..MTM..CBU;XZU508..T4..5F..(DCRTH,DCRUD)..CBU;XZU308..T5..MTM..(DCRTJ,DCRUE)..CBU;XZU308..SCB..T4..(DCRTJ,DCRUE)..CBU; XZU348,388..DCB..CBU; XZU348..SCB..T4..MTM..(DCRTJ,DCRUE)..CBU; XZU504..DCRTJ..CBU200610

main90119-08465×2iXZU308..T2..5F..CBU;XZU508..T2..5F..DCRTH..CBU200610-200908

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-37A00iXZU504..DCRTJ..CBU200610-201106

main65600-37A10iXZU504..DCRTJ..CBU200610-201106

main65600-37A20iXZU338,538..CBU200610-201106

main65600-37A30iBZU300,TRU300,XZU304..T3..CBU200610-201106

main65600-37A40iXZU334,378..SCB..CBU200610-201106

main65600-37C50iXZU348..T4..6FC..CBU;XZU344,548..T4..20T..CBU200705-201106

main65600-37C60iXZU344..20T..CBU;XZU348..T4..6FC..CBU200705-201106

main65600-3V300iTRU300,XZU308..DCB..CBU200610-201106

main65600-3V530iBZU300..T4..30T..CBU200705-201106

main65600-3V600iBZU300,TRU300,500,XZU30#,368,50#,568..SCB..(T2,T4,T5)..WT..CBU200610-201106

main65600-3V610iXZU308..T2..5F..CBU;XZU508..T2..5F..DCRTH..CBU200610-200908

main65600-3V620iXZU304,504..T4..MTM..CBU;XZU508..T4..5F..(DCRTH,DCRUD)..CBU;XZU308..T5..MTM..(DCRTJ,DCRUE)..CBU;XZU308..SCB..T4..(DCRTJ,DCRUE)..CBU200610-201106

main65600-3V670iBZU340,TRU340,XZU34#,388,548..SCB..CBU200610-201106

main65600-3V700iXZU378..T3..20T..CBU200610-201106

main65600-3V710iXZU348,388..DCB..CBU200610-201106

main65600-3V720iXZU348..SCB..T4..MTM..(DCRTJ,DCRUE)..CBU200610-201106

main65600-3V730iXZU348..SCB..T4..MTM..(DCRTJ,DCRUE)..CBU200610-201106

main65600-3V810iBZU300..T4..30T..CBU200705-201106

main65600-3V840iXZU504..ST..CBU200610-201106

main65670-37030iBZU300..T4..30T..CBU200705-201106

65600HBOLT, W/WASHER(FOR SIDE GATE, LH)

main90119-08464×6iBZU300,TRU300,500,XZU30#,33#,368,378,50#,538,568..SCB..(T2,T3,T4,T5)..CBU; BZU340,TRU340,XZU34#,388,548..SCB..CBU; TRU300,XZU308,378..DCB..CBU; XZU304,504..T4..MTM..CBU;XZU508..T4..5F..(DCRTH,DCRUD)..CBU;XZU308..T5..MTM..(DCRTJ,DCRUE)..CBU;XZU308..SCB..T4..(DCRTJ,DCRUE)..CBU; XZU348,388..DCB..CBU; XZU348..SCB..T4..MTM..(DCRTJ,DCRUE)..CBU; XZU504..DCRTJ..CBU200610

main90119-08465×2iXZU308..T2..5F..CBU;XZU508..T2..5F..DCRTH..CBU200610-200908

65679GSEAL, SIDE GATE

main65679-37010×3iBZU300..T4..30T..CBU200705-201103

main65679-37011×3iBZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU; BZU300..T4..30T..CBU201104-201106

65679HSEAL, SIDE GATE

main65679-37010iBZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU200610-201103

main65679-37011iBZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU; BZU300..T4..30T..CBU201104-201106

66110CHINGE ASSY, SIDE GATE, NO.1 RH

main65010-37040×2iBZU300,TRU300,500,XZU30#,33#,368,378,50#,538,568..SCB..(T2,T3,T4,T5)..CBU; BZU340,TRU340,XZU34#,388,548..SCB..CBU; TRU300,XZU308,378..DCB..CBU; XZU348,388..DCB..CBU; XZU348..SCB..T4..5F..DCRTJ..CBU200610-200807

main65010-37041×5iBZU300,TRU300,500,XZU30#,33#,368,378,50#,538,568..SCB..(T2,T3,T4,T5)..CBU; BZU300..T4..30T..CBU; BZU340,TRU340,XZU34#,388,548..SCB..CBU; TRU300,XZU308,378..DCB..CBU; XZU348,388..DCB..CBU; XZU348..SCB..T4..DCRUE..CBU201101-201106

main65010-37060×2iBZU300..T4..30T..CBU200807-201012

main65010-37061×2iBZU300..T4..30T..CBU201101-201106

main65050-37080×2iBZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU200610-200807

main65050-37100×2iBZU300..T4..30T..CBU200705-200807

main65535-37080×7iXZU344..20T..CBU;XZU348..T4..6FC..CBU; XZU348..T4..6FC..CBU;XZU344,548..T4..20T..CBU200705-201106

66120CHINGE ASSY, SIDE GATE, NO.1 LH

main65010-37040×4iBZU300,TRU300,500,XZU30#,33#,368,378,50#,538,568..SCB..(T2,T3,T4,T5)..CBU; BZU340,TRU340,XZU34#,388,548..SCB..CBU; TRU300,XZU308,378..DCB..CBU; XZU348,388..DCB..CBU; XZU348..SCB..T4..5F..DCRTJ..CBU200610-200807

main65010-37041×6iBZU300,TRU300,500,XZU30#,33#,368,378,50#,538,568..SCB..(T2,T3,T4,T5)..CBU; BZU300..T4..30T..CBU; BZU340,TRU340,XZU34#,388,548..SCB..CBU; TRU300,XZU308,378..DCB..CBU; XZU348,388..DCB..CBU; XZU348..SCB..T4..DCRUE..CBU201101-201106

main65010-37060×2iBZU300..T4..30T..CBU200807-201012

main65010-37061×2iBZU300..T4..30T..CBU201101-201106

main65050-37080×2iBZU300..T4..30T..CBU200705-200807

main65050-37100×2iBZU300..T4..30T..CBU200705-200807

main65535-37080×8iXZU344..20T..CBU;XZU348..T4..6FC..CBU; XZU348..T4..6FC..CBU;XZU344,548..T4..20T..CBU200705-201106

66151LATCH, SIDE GATE FEMALE, RH

main66151-37010iXZU548..T4..CBU;XZU348..T4..6FC..CBU;XZU344..20T..DCRTJ..CBU200705

main66151-92703iBZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU200610

66152LATCH, SIDE GATE FEMALE, LH

main66152-37020iXZU344..20T..CBU201003

main66152-92703iBZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU200610

66153ALATCH, TAIL GATE FEMALE, RH

main66153-37010iBZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU200610

mainC536595700iXZU308..T5..5F..DCRTJ..CBU;XZU504..(DCRTJ,DCRUD)..CBU;XZU504..5F..WT..DCRTH..CBU;XZU508..T4..5F..(DCRTH,DCRUD)..CBU;XZU308..SCB..T4..(DCRTJ,DCRUE)..CBU;XZU304,348..SCB..T4..5F..(DCRTJ,DCRUE)..CBU200610

66154LATCH, TAIL GATE FEMALE, LH

main66154-37010iBZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU200610

mainC536695700iXZU308..T2..5F..CBU;XZU508..T2..5F..DCRTH..CBU200610-200908

66187HANDLE, SIDE GATE LATCH, CENTER NO.2

main66187-37010iBZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..(T2,T3,T4,T5)..CBU200610

66248BPROTECTOR, REAR BODY SIDE PANEL, RH

main66248-37010iBZU300,TRU300..T3..CBU; BZU300..T4..30T..CBU200705-200811

main66248-37020iBZU340,TRU340,500..CBU;BZU300,TRU300..SCB..T4..CBU200705-200811

66249BPROTECTOR, REAR BODY SIDE PANEL, LH

main66249-37010iBZU300..T4..30T..CBU; BZU340,TRU340..CBU;BZU300,TRU300..T3..CBU200705-200811

main66249-37020iBZU300,TRU300,500..SCB..(T2,T4)..CBU200705-200811

9014880008

main90148-80008

9014880025

main90148-80025

9017908245

main90179-08245

9046706038

main90467-06038

9046708008

main90467-08008

9054106021

main90541-06021

9359016014

main93590-16014

24 parts on this diagram · 7 diagrams in section
