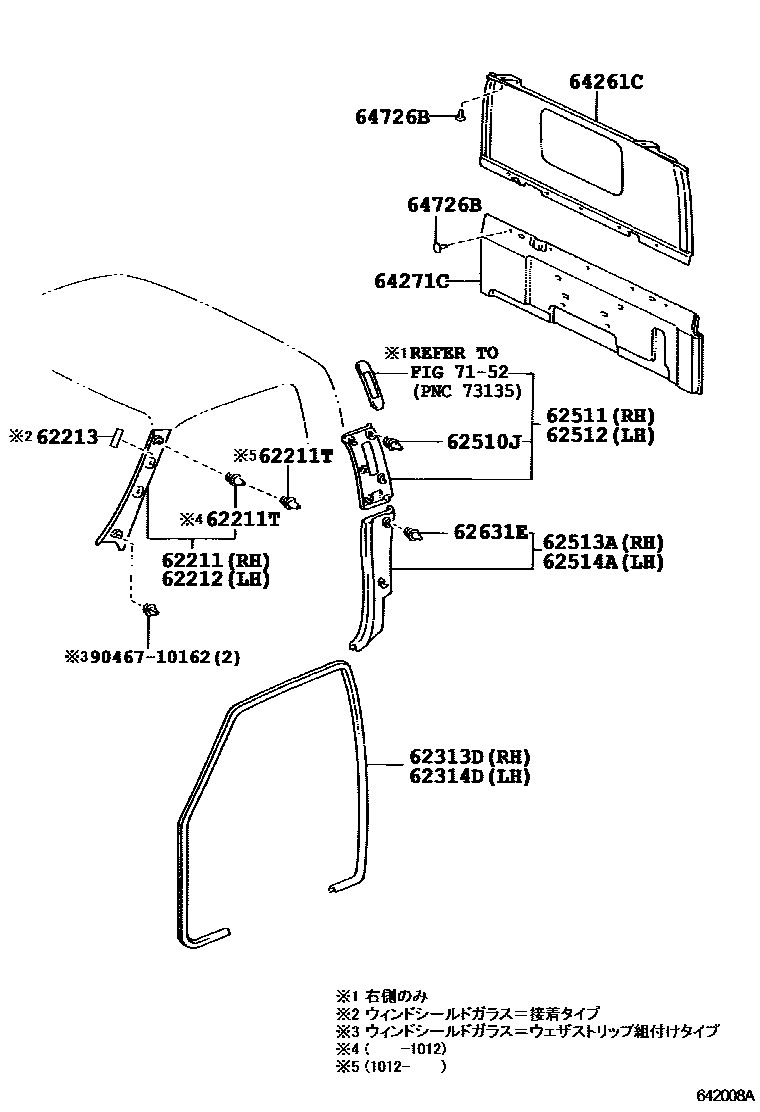

INSIDE TRIM BOARD
62211GARNISH, FRONT PILLAR, RH
main62211-37011-B0iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-200910
sub62211-37012
main62211-37012-B0iXZU33#,34#..(T3,T4)..5F..DCRTJ;XZU30#..(DM3,T3,T5)..5F..DCRTJ..(CBU,IV3);XZU304,314,324..(DM5,DM7,T4)..5F..30T..DCRTJ200911-201106
main62211-89106-B1iXZU504..ST..DCRTH..IV3;XZU508,538..DCRTH..IV3;XZU368..30T..DCRTJ..IV3;XZU304,338..SCB..(DCRTH,DCRTK);XZU304..(DM3,DM6)..(DCRTJ,DCRTM);XZU368,388..SCB..(DM5,T3)..DCR200610-201106
62211TCLIP(FOR FRONT PILLAR GARNISH)
main90467-10148iXZU504..ST..DCRTH..IV3;XZU508,538..DCRTH..IV3;XZU368..30T..DCRTJ..IV3;XZU304,338..SCB..(DCRTH,DCRTK);XZU304..(DM3,DM6)..(DCRTJ,DCRTM);XZU368,388..SCB..(DM5,T3)..DCR200610-201106
main90467-10188iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106
62212GARNISH, FRONT PILLAR, LH
main62212-37011-B0iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-200910
sub62212-37012
main62212-37012-B0iXZU34#..6FC;XZU308..T2,T4;XZU33#..6F,6FC;XZU338..5F..DCRTH;XZU338,348..T2..5F;XZU304..5F..30T..IV6;XZU308..T5..(6F,6FC);XZU304..6FC..30T..DCRTJ;XZU308,334..(T3,T5).200911-201106
main62212-89107-B1iXZU504..ST..DCRTH..IV3;XZU508,538..DCRTH..IV3;XZU368..30T..DCRTJ..IV3;XZU304,338..SCB..(DCRTH,DCRTK);XZU304..(DM3,DM6)..(DCRTJ,DCRTM);XZU368,388..SCB..(DM5,T3)..DCR200610-201106
62213PAD, FRONT PILLAR GARNISH
main62217-89101iXZU538..DCRTJ..IV3;XZU508..6FC..DCRTJ..IV3;XZU508..(T2,T5)..5F..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU308,338,34#..SCB..DCRUE..(CBU,IV6);XZU308,338,344,5200610-201106
62313DTRIM, FRONT DOOR OPENING, RH
main62313-37060-B0iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106
sub62313-37080
main62313-89122-B0iXZU538..DCRTJ..IV3;XZU508..6FC..DCRTJ..IV3;XZU508..(T2,T5)..5F..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU308,338,34#..SCB..DCRUE..(CBU,IV6);XZU308,338,344,5200610-201106
62314DTRIM, FRONT DOOR OPENING, LH
main62314-37020-B0iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106
sub62314-37040
main62314-89106-B0iXZU504..ST..DCRTH..IV3;XZU508,538..DCRTH..IV3;XZU368..30T..DCRTJ..IV3;XZU304,338..SCB..(DCRTH,DCRTK);XZU304..(DM3,DM6)..(DCRTJ,DCRTM);XZU368,388..SCB..(DM5,T3)..DCR200610-201106
62510JRETAINER, QUARTER TRIM
main90467-10188iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB200610-201106
62511BOARD, QUARTER INSIDE TRIM, RH
main62511-37011-B0iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB200610-201106
MD.CHARCOAL,TRIM1#
sub62510-37060
62512BOARD, QUARTER INSIDE TRIM, LH
main62512-37011-B0iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB200610-201106
MD.CHARCOAL,TRIM1#
sub62520-37040
62513APANEL, QUARTER TRIM, LOWER RH
main62513-37010-B0iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-200910
MD.CHARCOAL,TRIM1#
sub62513-37011
main62513-37011-B0iXZU33#,34#..(T3,T4)..5F..DCRTJ;XZU30#..(DM3,T3,T5)..5F..DCRTJ..(CBU,IV3);XZU304,314,324..(DM5,DM7,T4)..5F..30T..DCRTJ200911-201106
MD.CHARCOAL,TRIM1#
sub62530-37020
62514APANEL, QUARTER TRIM, LOWER LH
main62514-37010-B0iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-200910
MD.CHARCOAL,TRIM1#
sub62514-37011
main62514-37011-B0iXZU34#..6FC;XZU308..T2,T4;XZU33#..6F,6FC;XZU338..5F..DCRTH;XZU338,348..T2..5F;XZU304..5F..30T..IV6;XZU308..T5..(6F,6FC);XZU304..6FC..30T..DCRTJ;XZU308,334..(T3,T5).200911-201106
MD.CHARCOAL,TRIM1#
sub62540-37020
sub62514-37021
sub62540-37030
62631ERETAINER, QUATER TRIM
main90467-10161iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106
64261CGARNISH, BACK PANEL, UPPER
main64261-37010-B0iXZU314,324;XZU30#,33#,34#,354,50#,524,538,548,554..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3)200610-201106
MD.CHARCOAL,TRIM1#
64271CTRIM, BACK PANEL
main64271-37420-B0iXZU314,324;XZU30#,33#,34#,354,50#,524,538,548,554..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3)200610-201012
MD.CHARCOAL,TRIM1#
main64271-37421-B0iXZU314,324,33#,344,354,368,378..SCB..(CBU,IV3);XZU30#,348,388,50#,524,538,548,554,568..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3)201012-201106
MD.CHARCOAL,TRIM1#
64726BCLIP, DECK REAR TRIM
main64726-37010-B0iXZU314,324;XZU30#,33#,34#,354,50#,524,538,548,554..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE)..(CBU,IV3)200610-201106
MD.CHARCOAL,TRIM1#
7152
9046710162
main90467-10162
17 parts on this diagram · 3 diagrams in section
