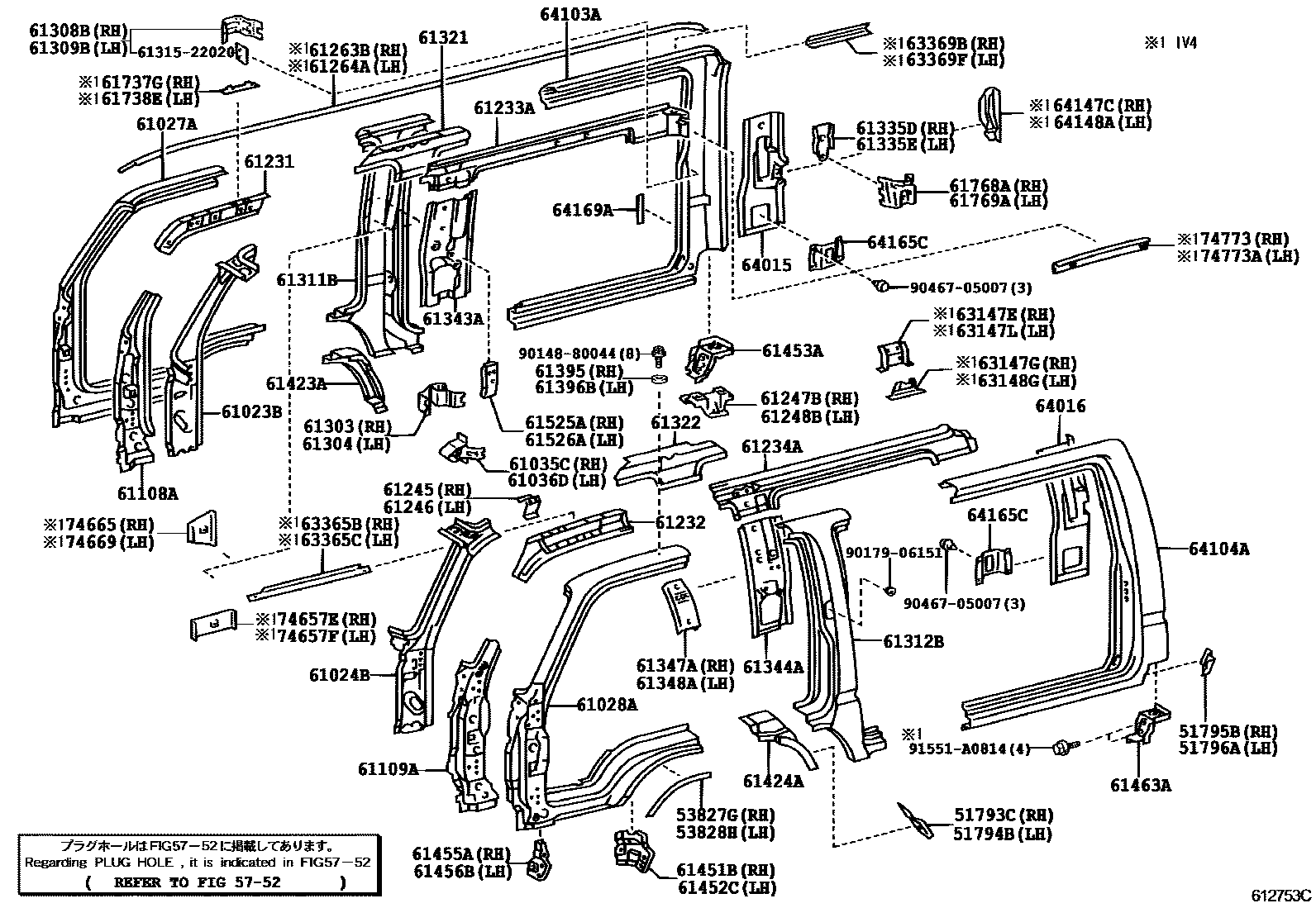

SIDE MEMBER

0001 1 0002 1��������������=���������� ���0003 1��������������=��������� 0004 14��� 0005 15���

51793CBRACKET, SIDE STEP, NO.1 RH

main51793-37040iTRU300,XZU30#,334,348,378,388..DCB200610

51794BBRACKET, SIDE STEP, NO.1 LH

main51794-37030iTRU300,XZU30#,334,348,378,388..DCB200610

51795BBRACKET, SIDE STEP, NO.2 RH

main51795-37020iTRU300,XZU30#,334,348,378,388..DCB200610

51796ABRACKET, SIDE STEP, NO.2 LH

main51796-37010iTRU300,XZU30#,334,348,378,388..DCB200610

53827GPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-37010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

53828HPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53827-37010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

5752HOLE PLUG

→ Go to FIG 57-52

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-37040iTRU300..20T..CBU;XZU304..DM3,DM6,T4,T5;XZU348,378,388..DCB..CBU;XZU304..30T..(IV3,IV4,IV6,IV7)..1NO;XZU308,314,324,354,368,50#,524,554,568;BZU300,340,TRU300,340,500,XZU33#,34#,378,388,538,548..IV3,IV4200610

main61023-37050iXZU30#,368,50#,568..SCB..(T2,T4,T5)..WT..(IV3,IV6);BZU300,340,TRU300,340,500,XZU304,33#,34#,354,378,388,538,548..SCB..(DM6,T2,T3,T4)..1NO200610

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-37090iTRU300..20T..CBU;XZU304..DM3,DM6,T4,T5;XZU348,378,388..DCB..CBU;XZU304..30T..(IV3,IV4,IV6,IV7)..1NO;XZU308,314,324,354,368,50#,524,554,568;BZU300,340,TRU300,340,500,XZU33#,34#,378,388,538,548..IV3,IV4200610

main61024-37100iXZU30#,368,50#,568..SCB..(T2,T4,T5)..WT..(IV3,IV6);BZU300,340,TRU300,340,500,XZU304,33#,34#,354,378,388,538,548..SCB..(DM6,T2,T3,T4)..1NO200610

main61024-37130iBZU300,XZU304..DM6..IV3200610

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-89118iXZU568..T4..IV3;XZU368..30T..IV3;XZU308..DCRTJ..IV6;XZU388..30T..DCRTJ..IV3;XZU368..T4..20T..DCRTK..IV3;XZU304..20T..(DCRTJ,DCRTM)..1NO;XZU304,338..SCB..(DCRTH,DCRTK)..1NO;XZU30#,348..(T4,T5)..(DCRTK,DCRTM)..IV3;XZU334,34#,388..SCB..(5F,6FC)..(20T,30T)..CBU;BZU300,340,TRU300,340,500,XZU378..SCB..(DM6,T2,T3,T4);XZU334,344,388,508,538..(20T,30T)..(DCRTH,DCRTK)..IV3;XZU304,338,538,548..(T2,T3,T4)..(DCRTH,DCRTJ)..(CBU,IV6)..1NO200801

main61027-89119iXZU378..SCB..IV3;XZU504..ST..DCRTH..IV3;XZU304..30T..DCRTJ..IV6;XZU368..30T..DCRTJ..IV3;XZU308,348..(DCRTK,DCRTM)..IV3;XZU304..(DM3,DM6)..(DCRTJ,DCRTM);XZU368,388..SCB..(DM5,T3)..DCRTJ..IV3;XZU314,324,354,554,568..(DCRTJ,DCRTK)..4NO;XZU304,368..(DM5,T4,T5)..(DCRTJ,DCRTK)..CBU;TRU300,XZU308,50#..SCB..20T..(DCRTH,DCRTJ,DCRTK,DCRTM,EFI)..(CBU,IV6);BZU300,340,TRU300,340,500,XZU304,33#,344,368,388,508,538..SCB..(20T,30T)..(DCRTH,DCRTK,EFI,LPG)..(IV3,IV7)200801

main61131-37062iTRU300..20T..CBU;XZU304..DM3,DM6,T4,T5;XZU348,378,388..DCB..CBU;XZU304..30T..(IV3,IV6,IV7)..1NO;XZU308,314,324,354,368,50#,524,554,568..DCB,SCB;BZU300,340,TRU300,340,500,XZU33#,34#,378,388,538,548..IV3200610

main61131-37072iXZU30#,368,50#,568..SCB..(T2,T4,T5)..WT..(IV3,IV6);BZU300,340,TRU300,340,500,XZU304,33#,34#,354,378,388,538,548..SCB..(DM6,T2,T3,T4)..1NO200610

main61131-37101iXZU508..VAN200610

main61131-37111iXZU304,334,378..IV4200610

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-89118iXZU308..DCRUE..IV6;XZU508..T4..5F..IV3;XZU538,548..DCRTJ..IV3;XZU508..6FC..DCRTJ..IV3;XZU304..(T4,T5)..6F..IV3;XZU338,34#..SCB..DCRUE..CBU;XZU304,334,538,548..(DCRUD,DCRUE)..1NO;XZU308,338,344..SCB..(DCRTJ,DCRUE)..IV3;XZU508..(T2,T5)..5F..(DCRTJ,DCRUD,DCRUE)..IV3;XZU348,368,388..SCB..(T2,T3,T4)..20T..(DCRTH,DCRTJ,DCRUE)..IV3;XZU304,334,504..(T3,T4,T5)..(5F,6FC)..WT..(DCRTH,DCRTJ,DCRUD,DCRUE)..IV3200610

main61028-89119iXZU378..SCB..IV3;XZU504..ST..DCRTH..IV3;XZU304..30T..DCRTJ..IV6;XZU368..30T..DCRTJ..IV3;XZU308,348..(DCRTK,DCRTM)..IV3;XZU304..(DM3,DM6)..(DCRTJ,DCRTM);XZU368,388..SCB..(DM5,T3)..DCRTJ..IV3;XZU314,324,354,554,568..(DCRTJ,DCRTK)..4NO;XZU304,368..(DM5,T4,T5)..(DCRTJ,DCRTK)..CBU;TRU300,XZU308,50#..SCB..20T..(DCRTH,DCRTJ,DCRTK,DCRTM,EFI)..(CBU,IV6);BZU300,340,TRU300,340,500,XZU304,33#,344,368,388,508,538..SCB..(20T,30T)..(DCRTH,DCRTK,EFI,LPG)..(IV3,IV7)200801

main61112-37151iXZU508..VAN200610

main61132-37042iTRU300..20T..CBU;XZU308,348..DCB..DCRUE;BZU300,340,TRU300,340,500,XZU33#,344,538,548..(20T,30T)..IV3;XZU304,348,378,388..SCB..(T2,T3,T4)..(DCRTH,DCRTJ,DCRTK,DCRUE)..(IV3,IV6,IV7)..1NO;XZU30#,314,324,354,368,50#,524,554,568..SCB..(DM3,DM5,DM6,DM7,T2,T4,T5)..(DCRTH,DCRTJ,DCRTK,DCRUD,DCRUE); XZU308,348,378,388..DCB..(DCRTH,DCRTJ)200610

main61132-37052iXZU334,344,354..35T,40T200908

main61132-37062iTRU300..20T..CBU;XZU304..DM3,DM6,T4,T5;XZU348,378,388..DCB..CBU;XZU304..30T..(IV3,IV6,IV7)..1NO;XZU308,314,324,354,368,50#,524,554,568..DCB,SCB;BZU300,340,TRU300,340,500,XZU33#,34#,378,388,538,548..IV3200610

main61132-37072iXZU30#,368,50#,568..SCB..(T2,T4,T5)..WT..(IV3,IV6);BZU300,340,TRU300,340,500,XZU304,33#,34#,354,378,388,538,548..SCB..(DM6,T2,T3,T4)..1NO200610

main61132-37081iXZU508..VAN200610

main61132-37091iXZU304,334,378..IV4200610

main61132-37111iBZU300,XZU304..DM6..IV3200610

61035CRETAINER SUB-ASSY, PILLAR LOWER HINGE, RH

main61035-37040iTRU300,XZU30#,334,348,378,388..DCB200610

61036DRETAINER SUB-ASSY, PILLAR LOWER HINGE, LH

main61036-37040iTRU300,XZU30#,334,348,378,388..DCB200610

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-37031iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB200610

main61108-37041iXZU508..VAN200610

main61108-37060iXZU538..DCRTJ..IV3;XZU508..6FC..DCRTJ..IV3;XZU508..(T2,T5)..5F..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU308,338,34#..SCB..DCRUE..(CBU,IV6);XZU308,338,344,504..SCB..(DCRTJ,DCRUE)..IV3;XZU304,334,504,548..(T3,T4,T5)..WT..(DCRTH,DCRTJ)..IV3;XZU304,314,324,334,354,50#,524,538,548,554..DCRUD,DCRUE;XZU348,368,388..SCB..(T2,T3,T4)..20T..(DCRTH,DCRTJ,DCRUE)..IV3200610

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-37011iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB200610

main61109-37021iXZU508..VAN200610

main61109-37031iBZU300,XZU304..DM6..IV3200610

main61109-37050iXZU538..DCRTJ..IV3;XZU508..6FC..DCRTJ..IV3;XZU508..(T2,T5)..5F..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU308,338,34#..SCB..DCRUE..(CBU,IV6);XZU308,338,344,504..SCB..(DCRTJ,DCRUE)..IV3;XZU304,334,504,548..(T3,T4,T5)..WT..(DCRTH,DCRTJ)..IV3;XZU304,314,324,334,354,50#,524,538,548,554..DCRUD,DCRUE;XZU348,368,388..SCB..(T2,T3,T4)..20T..(DCRTH,DCRTJ,DCRUE)..IV3200610

61231RAIL, ROOF SIDE, INNER RH

main61203-37050iXZU508..06S200610-200908

main61231-37050iTRU300..20T..CBU;XZU304..DM3,DM6,T4,T5;XZU348,378,388..DCB..CBU;XZU304..30T..(IV3,IV6,IV7)..1NO;XZU308,314,324,354,368,50#,524,554,568..DCB,SCB;BZU300,340,TRU300,340,500,XZU33#,34#,378,388,538,548..IV3200610

main61231-37060iXZU30#,368,50#,568..SCB..(T2,T4,T5)..WT..(IV3,IV6);BZU300,340,TRU300,340,500,XZU304,33#,34#,354,378,388,538,548..SCB..(DM6,T2,T3,T4)..1NO200610

main61231-37080iXZU508..VAN200610

main61231-37100iXZU304,334,378..IV4200610

main61231-89119iXZU568..T4..IV3;XZU368..30T..IV3;XZU308..DCRTJ..IV6;XZU388..30T..DCRTJ..IV3;XZU368..T4..20T..DCRTK..IV3;XZU304..20T..(DCRTJ,DCRTM)..1NO;XZU304,338..SCB..(DCRTH,DCRTK)..1NO;XZU30#,348..(T4,T5)..(DCRTK,DCRTM)..IV3;XZU334,34#,388..SCB..(5F,6FC)..(20T,30T)..CBU;BZU300,340,TRU300,340,500,XZU378..SCB..(DM6,T2,T3,T4);XZU334,344,388,508,538..(20T,30T)..(DCRTH,DCRTK)..IV3;XZU304,338,538,548..(T2,T3,T4)..(DCRTH,DCRTJ)..(CBU,IV6)..1NO200801

main61231-89120iXZU304..30T..DCRUE..IV6;XZU508..6FC..DCRTJ..IV3;XZU308..SCB..DCRUE..(CBU,IV6);XZU50#..(T2,T5)..5F..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU304,388,504..(T4,T5)..WT..(DCRTH,DCRTJ)..IV3;XZU304,33#,344,538,548..(T2,T3,T4)..(DCRTJ,DCRUD,DCRUE)..IV3..1NO;XZU308,348,368..SCB..(T2,T3,T4,T5)..20T..(DCRTH,DCRTJ,DCRUE)..IV3;XZU304,314,324,354,50#,524,554..(DM3,DM5,DM6,DM7,T4,T5)..(DCRUD,DCRUE)200610

61232RAIL, ROOF SIDE, INNER LH

main61204-37050iXZU508..06S200610-200908

main61232-37050iTRU300..20T..CBU;XZU304..DM3,DM6,T4,T5;XZU348,378,388..DCB..CBU;XZU304..30T..(IV3,IV6,IV7)..1NO;XZU308,314,324,354,368,50#,524,554,568..DCB,SCB;BZU300,340,TRU300,340,500,XZU33#,34#,378,388,538,548..IV3200610

main61232-37060iXZU30#,368,50#,568..SCB..(T2,T4,T5)..WT..(IV3,IV6);BZU300,340,TRU300,340,500,XZU304,33#,34#,354,378,388,538,548..SCB..(DM6,T2,T3,T4)..1NO200610

main61232-37080iXZU304,334,378..IV4200610

main61232-37090iXZU508..VAN200610

main61232-89119iXZU308..DCRUE..IV6;XZU508..T4..5F..IV3;XZU538,548..DCRTJ..IV3;XZU508..6FC..DCRTJ..IV3;XZU304..(T4,T5)..6F..IV3;XZU338,34#..SCB..DCRUE..CBU;XZU304,334,538,548..(DCRUD,DCRUE)..1NO;XZU308,338,344..SCB..(DCRTJ,DCRUE)..IV3;XZU508..(T2,T5)..5F..(DCRTJ,DCRUD,DCRUE)..IV3;XZU348,368,388..SCB..(T2,T3,T4)..20T..(DCRTH,DCRTJ,DCRUE)..IV3;XZU304,334,504..(T3,T4,T5)..(5F,6FC)..WT..(DCRTH,DCRTJ,DCRUD,DCRUE)..IV3200610

main61232-89120iXZU378..SCB..IV3;XZU504..ST..DCRTH..IV3;XZU304..30T..DCRTJ..IV6;XZU368..30T..DCRTJ..IV3;XZU308,348..(DCRTK,DCRTM)..IV3;XZU304..(DM3,DM6)..(DCRTJ,DCRTM);XZU368,388..SCB..(DM5,T3)..DCRTJ..IV3;XZU314,324,354,554,568..(DCRTJ,DCRTK)..4NO;XZU304,368..(DM5,T4,T5)..(DCRTJ,DCRTK)..CBU;TRU300,XZU308,50#..SCB..20T..(DCRTH,DCRTJ,DCRTK,DCRTM,EFI)..(CBU,IV6);BZU300,340,TRU300,340,500,XZU304,33#,344,368,388,508,538..SCB..(20T,30T)..(DCRTH,DCRTK,EFI,LPG)..(IV3,IV7)200801

61233ARAIL, ROOF SIDE, INNER NO.2 RH

main61207-37060iXZU508..06S200610

main61207-95J05iXZU508..03S200610

main61233-25020iTRU300,XZU308,348,378,388..DCB..20T200610-200708

main61233-25021iTRU300,XZU308,348,378,388..DCB..20T200709

main61233-25030iXZU304,334,378..IV4200610

main61233-37050iTRU300,XZU308,348,378,388..DCB..20T200610-200708

main61233-37051iXZU348..DCB201003

main61233-37060iXZU304,334,378..IV4200610

61234ARAIL, ROOF SIDE, INNER NO.2 LH

main61208-37060iXZU508..06S200610

main61208-95J18iXZU508..03S200610

main61234-37050iTRU300,XZU308,348,378,388..DCB..20T200610-200708

main61234-37051iTRU300,XZU308,348,378,388..DCB..20T200709

main61234-37070iXZU304,334,378..IV4200610

61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH

main61245-37010iTRU300..20T..CBU;XZU304..DM3,DM6,T4,T5;XZU348,378,388..DCB..CBU;XZU304..30T..(IV3,IV6,IV7)..1NO;XZU308,314,324,354,368,50#,524,554,568..DCB,SCB;BZU300,340,TRU300,340,500,XZU33#,34#,378,388,538,548..IV3200610

main61245-37020iXZU30#,368,50#,568..SCB..(T2,T4,T5)..WT..(IV3,IV6);BZU300,340,TRU300,340,500,XZU304,33#,34#,354,378,388,538,548..SCB..(DM6,T2,T3,T4)..1NO200610

61246REINFORCEMENT, ROOF SIDE RAIL, OUTER LH

main61245-37010iTRU300..20T..CBU;XZU304..DM3,DM6,T4,T5;XZU348,378,388..DCB..CBU;XZU304..30T..(IV3,IV6,IV7)..1NO;XZU308,314,324,354,368,50#,524,554,568..DCB,SCB;BZU300,340,TRU300,340,500,XZU33#,34#,378,388,538,548..IV3200610

main61246-37010iXZU30#,368,50#,568..SCB..(T2,T4,T5)..WT..(IV3,IV6);BZU300,340,TRU300,340,500,XZU304,33#,34#,354,378,388,538,548..SCB..(DM6,T2,T3,T4)..1NO200610

61247BREINFORCEMENT, ROOF SIDE RAIL, INNER RH

main61247-37020iTRU300,XZU308,348,378,388..DCB..20T200610

61248BREINFORCEMENT, ROOF SIDE RAIL, INNER LH

main61247-37020iTRU300,XZU308,348,378,388..DCB..20T200610

61263BCHANNEL, ROOF DRIP SIDE, FRONT RH

main61263-37010iXZU508..VAN200610

main61263-37020iXZU304,334,378..IV4200610

61264ACHANNEL, ROOF DRIP SIDE, FRONT LH

main61264-37010iXZU508..VAN200610

main61264-37020iXZU304,334,378..IV4200610

61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

main61303-37010iTRU300,XZU30#,334,348,378,388..DCB200610

61304REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH

main61304-37010iTRU300,XZU30#,334,348,378,388..DCB200610

61308BRETAINER SUB-ASSY, DOOR LOCK STRIKER, RH

main61309-37010iTRU300,XZU30#,334,348,378,388..DCB200610

61309BRETAINER SUB-ASSY, DOOR LOCK STRIKER, LH

main61309-37010iTRU300,XZU30#,334,348,378,388..DCB200610

61311BPILLAR, CENTER BODY, OUTER RH

main61311-37090iTRU300,XZU30#,334,348,378,388..DCB200610

61312BPILLAR, CENTER BODY, OUTER LH

main61312-37080iTRU300,XZU30#,334,348,378,388..DCB200610

61321REINFORCEMENT, CENTER BODY PILLAR, UPPER RH

main61321-37010iTRU300,XZU30#,334,348,378,388..DCB200610

61322REINFORCEMENT, CENTER BODY PILLAR, UPPER LH

main61322-37010iTRU300,XZU30#,334,348,378,388..DCB200610

61335DRETAINER, SEAT BELT ANCHOR

main61335-37030iTRU300,XZU30#,334,348,378,388..DCB200610

61335ERETAINER, SEAT BELT ANCHOR

main61335-37030iTRU300,XZU30#,334,348,378,388..DCB200610

61343APILLAR, CENTER BODY, INNER RH

main61307-37120iXZU508..03S200610

main61307-37150iXZU508..06S200610

main61307-37160iXZU508..06S200610

main61307-37170iXZU508..03S200610

main61307-37180iXZU508..03S200610

main61307-37190iXZU508..06S200610-200908

main61307-37200iXZU508..03S200610

main61307-37250iXZU508..06S200610

main61307-37270iXZU508..03S200610

main61307-37280iXZU508..06S200610-200908

main61307-37380iXZU508..03S200610

main61307-37390iXZU508..03S200610

main61307-37400iXZU508..03S200610

main61307-37410iXZU508..03S200610

main61307-37420iXZU508..03S200610

main61307-37430iXZU508..06S200610-200908

main61307-37440iXZU508..06S200610

main61307-37450iXZU508..06S200610-200908

main61307-37460iXZU508..06S200610

main61307-37470iXZU508..06S200610

main61343-37140iTRU300,XZU308,348,378,388..DCB..(5F,6FC)200610

main61343-37150iTRU300,XZU30#,334,348,378,388..DCB..(5F,6FC)200610

main61343-37170iTRU300,XZU308,348,378,388..DCB..(5F,6FC)200610

main61343-37180iTRU300,XZU30#,334,348,378,388..DCB200610

61344APILLAR, CENTER BODY, INNER LH

main61308-25080iXZU508..03S200610

main61308-25090iXZU508..06S200610-200908

main61308-25100iXZU508..06S200610

main61344-25050iTRU300,XZU30#,334,348,378,388..DCB200610

61347AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, RH

main61347-37010iTRU300,XZU30#,334,348,378,388..DCB200610

61348AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LH

main61348-37010iTRU300,XZU30#,334,348,378,388..DCB200610

61395SEAL, CENTER BODY PILLAR, RH

main61395-37010×4iBZU300;BZU340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7)200610

61396BSEAL, CENTER BODY PILLAR, LH

main61395-37010×4iBZU300;BZU340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7)200610

61423APANEL, FENDER, INNER LOWER RH

main61423-37030iTRU300,XZU30#,334,348,378,388..DCB200610

main61423-37040iXZU508..VAN200610

61424APANEL, FENDER, INNER LOWER LH

main61424-37030iTRU300,XZU30#,334,348,378,388..DCB200610

main61424-37040iXZU508..VAN200610

61451PANEL, ROCKER, OUTER RH

main61451-95J00iXZU508..VAN200610

61451BPLATE, STEP, LOWER RH

main61451-37010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

61452CPLATE, STEP, LOWER LH

main61452-37010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

61453APANEL, ROCKER INNER, REAR RH

main61453-37010iTRU300,XZU30#,334,348,378,388..DCB200610

61455ARETAINER, FRONT STEP, RH

main61455-37010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

61456BRETAINER, FRONT STEP, LH

main61456-37010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

61463APANEL, ROCKER, INNER REAR LH

main61463-37010iTRU300,XZU30#,334,348,378,388..DCB200610

61525ARETAINER, SEPARATOR BAR BRACKET, RH

main61525-37020iTRU300,XZU30#,334,348,378,388..DCB200610

61526ARETAINER, SEPARATOR BAR BRACKET, LH

main61526-37020iTRU300,XZU30#,334,348,378,388..DCB200610

61737GREINFORCEMENT, ROOF SIDE, INNER RH

main61737-37020iXZU304,334,378..IV4200610

61738EREINFORCENENT, ROOF SIDE, INNER LH, NO.2

main61737-37020iXZU304,334,378..IV4200610

61768AREINFORCEMENT, SEAT BELT ANCHOR, NO.2 RH

main61768-37050iTRU300,XZU30#,334,348,378,388..DCB200610

61769AREINFORCEMENT, SEAT BELT ANCHOR, NO.2 LH

main61769-37050iTRU300,XZU30#,334,348,378,388..DCB200610

63147EBRACKET, ROOF PANEL REINFORCEMENT

main63147-37010×3iXZU304,334,378..IV4200610

63147GBRACKET, ROOF PANEL REINFORCEMENT

main63148-37030×3iXZU304,334,378..IV4200610

63147LBRACKET, ROOF PANEL REINFORCEMENT

main63147-37010×3iXZU304,334,378..IV4200610

63148GREINFORCEMENT, ROOF PANEL SIDE

main63148-37030×3iXZU304,334,378..IV4200610

63365BPLATE, ROOF HEADLINING SET

main63365-37010iXZU304,334,378..IV4200610

63365CPLATE, ROOF HEADLINING SET

main63365-37010iXZU304,334,378..IV4200610

63369BBRACKET, ROOF SILENCER, SIDE

main63369-37010×2iXZU304,334,378..IV4200610

63369FBRACKET, ROOF SILENCER, SIDE

main63369-37010×2iXZU304,334,378..IV4200610

64015PANEL SUB-ASSY, BACK CORNER, INNER RH

main61531-37010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB200610

main61531-37040iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB200610

main64123-37140iTRU300,XZU30#,334,348,378,388..DCB200610

main64123-37150iXZU304,334,378..IV4200610

64016PANEL SUB-ASSY, BACK CORNER, INNER LH

main61532-37010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB200610

main61532-37021iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..SCB200610

main64124-37160iTRU300,XZU30#,334,348,378,388..DCB200610

main64124-37170iXZU304,334,378..IV4200610

64103APANEL SUB-ASSY, BACK CORNER, OUTER RH

main61111-89101iXZU568..T4..IV3;XZU368..30T..IV3;XZU308..DCRTJ..IV6;XZU388..30T..DCRTJ..IV3;XZU368..T4..20T..DCRTK..IV3;XZU304..20T..(DCRTJ,DCRTM)..1NO;XZU304,338..SCB..(DCRTH,DCRTK)..1NO;XZU30#,348..(T4,T5)..(DCRTK,DCRTM)..IV3;XZU334,34#,388..SCB..(5F,6FC)..(20T,30T)..CBU;BZU300,340,TRU300,340,500,XZU378..SCB..(DM6,T2,T3,T4);XZU334,344,388,508,538..(20T,30T)..(DCRTH,DCRTK)..IV3;XZU304,338,538,548..(T2,T3,T4)..(DCRTH,DCRTJ)..(CBU,IV6)..1NO200801

main61111-89105iXZU378..SCB..IV3;XZU504..ST..DCRTH..IV3;XZU304..30T..DCRTJ..IV6;XZU368..30T..DCRTJ..IV3;XZU308,348..(DCRTK,DCRTM)..IV3;XZU304..(DM3,DM6)..(DCRTJ,DCRTM);XZU368,388..SCB..(DM5,T3)..DCRTJ..IV3;XZU314,324,354,554,568..(DCRTJ,DCRTK)..4NO;XZU304,368..(DM5,T4,T5)..(DCRTJ,DCRTK)..CBU;TRU300,XZU308,50#..SCB..20T..(DCRTH,DCRTJ,DCRTK,DCRTM,EFI)..(CBU,IV6);BZU300,340,TRU300,340,500,XZU304,33#,344,368,388,508,538..SCB..(20T,30T)..(DCRTH,DCRTK,EFI,LPG)..(IV3,IV7)200801

main61611-37060iTRU300,XZU30#,334,348,378,388..DCB200610

main61611-37141iTRU300..DM5..CBU;XZU304..DM3,DM6,T4,T5;XZU304..30T..(IV3,IV6,IV7)..1NO;XZU308,314,324,354,368,50#,524,554,568..SCB;BZU300,340,TRU300,340,500,XZU33#,34#,378,388,538,548..SCB..IV3200610

main61611-37151iXZU30#,368,50#,568..SCB..(T2,T4,T5)..WT..(IV3,IV6);BZU300,340,TRU300,340,500,XZU304,33#,34#,354,378,388,538,548..SCB..(DM6,T2,T3,T4)..1NO200610

64104APANEL SUB-ASSY, BACK CORNER, OUTER LH

main61112-89101iXZU568..T4..IV3;XZU368..30T..IV3;XZU308..DCRTJ..IV6;XZU388..30T..DCRTJ..IV3;XZU368..T4..20T..DCRTK..IV3;XZU304..20T..(DCRTJ,DCRTM)..1NO;XZU304,338..SCB..(DCRTH,DCRTK)..1NO;XZU30#,348..(T4,T5)..(DCRTK,DCRTM)..IV3;XZU334,34#,388..SCB..(5F,6FC)..(20T,30T)..CBU;BZU300,340,TRU300,340,500,XZU378..SCB..(DM6,T2,T3,T4);XZU334,344,388,508,538..(20T,30T)..(DCRTH,DCRTK)..IV3;XZU304,338,538,548..(T2,T3,T4)..(DCRTH,DCRTJ)..(CBU,IV6)..1NO200801

main61112-89102iXZU308..DCRUE..IV6;XZU508..T4..5F..IV3;XZU538,548..DCRTJ..IV3;XZU508..6FC..DCRTJ..IV3;XZU304..(T4,T5)..6F..IV3;XZU338,34#..SCB..DCRUE..CBU;XZU304,334,538,548..(DCRUD,DCRUE)..1NO;XZU308,338,344..SCB..(DCRTJ,DCRUE)..IV3;XZU508..(T2,T5)..5F..(DCRTJ,DCRUD,DCRUE)..IV3;XZU348,368,388..SCB..(T2,T3,T4)..20T..(DCRTH,DCRTJ,DCRUE)..IV3;XZU304,334,504..(T3,T4,T5)..(5F,6FC)..WT..(DCRTH,DCRTJ,DCRUD,DCRUE)..IV3200610

main61112-89107iXZU304..30T..DCRUE..IV6;XZU508..6FC..DCRTJ..IV3;XZU308..SCB..DCRUE..(CBU,IV6);XZU50#..(T2,T5)..5F..DCRTJ..IV3;XZU508..T4..5F..(DCRTH,DCRTJ)..IV3;XZU304,388,504..(T4,T5)..WT..(DCRTH,DCRTJ)..IV3;XZU304,33#,344,538,548..(T2,T3,T4)..(DCRTJ,DCRUD,DCRUE)..IV3..1NO;XZU308,348,368..SCB..(T2,T3,T4,T5)..20T..(DCRTH,DCRTJ,DCRUE)..IV3;XZU304,314,324,354,50#,524,554..(DM3,DM5,DM6,DM7,T4,T5)..(DCRUD,DCRUE)200610

main61112-89108iXZU378..SCB..IV3;XZU348..DCRTK..IV3;XZU504..ST..DCRTH..IV3;XZU304..30T..DCRTJ..IV6;XZU368..30T..DCRTJ..IV3;XZU304..(DM3,DM6)..DCRTJ;XZU368,388..SCB..(DM5,T3)..DCRTJ..IV3;XZU314,324,354,554,568..(DCRTJ,DCRTK)..4NO;XZU304,368..(DM5,T4,T5)..(DCRTJ,DCRTK)..CBU;TRU300,XZU308,50#..SCB..20T..(DCRTH,DCRTJ,DCRTK,EFI)..(CBU,IV6);BZU300,340,TRU300,340,500,XZU30#,33#,344,368,388,508,538..SCB..(20T,30T)..(DCRTH,DCRTK,EFI,LPG)..(IV3,IV7)200801

main61612-37050iTRU300,XZU30#,334,348,378,388..DCB200610

main61612-37111iTRU300..DM5..CBU;XZU304..DM3,DM6,T4,T5;XZU304..30T..(IV3,IV6,IV7)..1NO;XZU308,314,324,354,368,50#,524,554,568..SCB;BZU300,340,TRU300,340,500,XZU33#,34#,378,388,538,548..SCB..IV3200610

main61612-37121iXZU30#,368,50#,568..SCB..(T2,T4,T5)..WT..(IV3,IV6);BZU300,340,TRU300,340,500,XZU304,33#,34#,354,378,388,538,548..SCB..(DM6,T2,T3,T4)..1NO200610

64147CPLATE, BACK PANEL CORNER, UPR RH

main64147-37010iXZU304,334,378..IV4200610

64148APLATE, BACK PANEL CORNER, UPPER LH

main64148-37010iXZU304,334,378..IV4200610

64165CCOVER, BACK CORNER, INNER REAR

main64165-37020×2iTRU300,XZU30#,334,348,378,388..DCB200610

64169APROTECTOR, FUEL INLET

main64169-37010iTRU300,XZU308..DCB200610

74657EBRACKET, HAND RAIL, NO.1

main74657-37011iXZU304,334,378..IV4200610

74657FBRACKET, HAND RAIL, NO.1

main74657-37011iXZU304,334,378..IV4200610

74665RETAINER, HAND RAIL BAR, UPPER RH

main74669-37021iXZU304,334,378..IV4200610

74669RETAINER, HAND RAIL

main74669-37021iXZU304,334,378..IV4200610

74773BRACKET, HAND GRIP, LOWER

main74772-37011iXZU304,334,378..IV4200610

74773ABRACKET, HAND GRIP, LOWER

main74773-37011iXZU304,334,378..IV4200610

6131522020RETAINER, DOOR LOCK STRIKER PLATE

main61315-22020

9014880044

main90148-80044

9017906151

main90179-06151

9046705007

main90467-05007

91551A0814

main91551-A0814

83 parts on this diagram · 5 diagrams in section
