REAR BUMPER & BUMPER STAY

0001 1 0002 1������� ����� 0003 1

5152SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-52

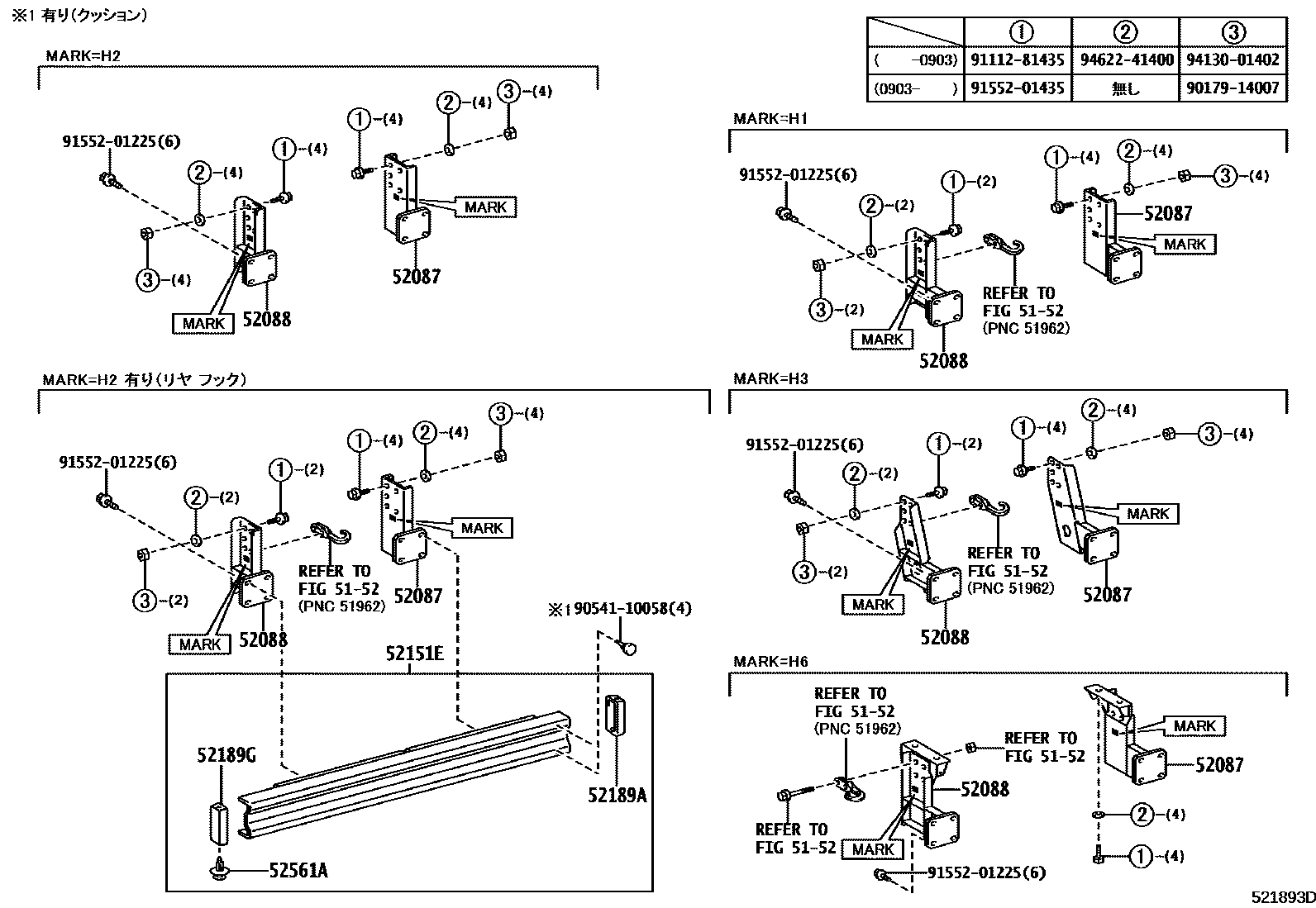

52087STAY SUB-ASSY, REAR BUMPER SIDE, RH

main52151-37200iBZU300,TRU300,500,XZU30#,50#..(T2,T4)..20T..IV3200610

main52151-37210iXZU368..30T..IV3;XZU378..SCB..30T;XZU338,378,538..20T..IV3;XZU30#,50#..T5..20T..IV3;BZU300,TRU300,XZU304..(T4,T5)..30T;BZU340,TRU340,XZU334,34#,388,548..CBU,IV3200610

main52151-37220iXZU368,568..T4..20T..IV3;BZU300,TRU300,XZU304..T3..(CBU,IV3)200610

main52151-37320iXZU324,524200610

52088STAY SUB-ASSY, REAR BUMPER SIDE, LH

main52152-37080iBZU300,TRU300,500,XZU30#,50#..(T2,T4)..20T..IV3200610

main52152-37090iXZU368..30T..IV3;XZU378..SCB..30T;XZU338,378,538..20T..IV3;XZU30#,50#..T5..20T..IV3;BZU300,TRU300,XZU304..(T4,T5)..30T;BZU340,TRU340,XZU334,34#,388,548..CBU,IV3200610

main52152-37100iXZU368,568..T4..20T..IV3;BZU300,TRU300,XZU304..T3..(CBU,IV3)200610

main52152-37130iXZU324,524200610

52151EBAR, REAR BUMPER

main52105-37300iXZU378..20T..IV3;BZU340,TRU340,XZU334,34#,388,548..CBU,IV3;BZU300,TRU300,XZU304,378..T3..30T..(CBU,IV3)200610

main52105-37310iXZU368..T4..IV3;BZU300,XZU304..(T4,T5)..30T;TRU300,XZU324,524..SCB..(DM7,T4);BZU300,TRU300,500,XZU30#,338,50#,538,568..(T2,T4,T5)..20T..IV3200610

52189APROTECTOR, REAR BUMPER ARM EDGE, RH

main52189-37050iXZU368..T4..IV3;BZU300,TRU300,XZU304,378..30T..(CBU,IV3);BZU340,TRU340,XZU324,334,34#,388,524,548..CBU,IV3;BZU300,TRU300,500,XZU30#,338,378,50#,538,568..(T2,T3,T4,T5)..20T..IV3200610

52189GPROTECTOR, REAR BUMPER ARM EDGE, LH

main52189-37050iXZU368..T4..IV3;BZU300,TRU300,XZU304,378..30T..(CBU,IV3);BZU340,TRU340,XZU324,334,34#,388,524,548..CBU,IV3;BZU300,TRU300,500,XZU30#,338,378,50#,538,568..(T2,T3,T4,T5)..20T..IV3200610

52561ACLIP(FOR REAR BUMPER RETAINER)

main90467-07043-C0×4iXZU368..T4..IV3;BZU300,TRU300,XZU304,378..30T..(CBU,IV3);BZU340,TRU340,XZU324,334,34#,388,524,548..CBU,IV3;BZU300,TRU300,500,XZU30#,338,378,50#,538,568..(T2,T3,T4,T5)..20T..IV3200610-201106

BLACK

9017914007

main90179-14007

9054110058

main90541-10058

9111281435

main91112-81435

9155201225

main91552-01225

9155201435

main91552-01435

9413001402

main94130-01402

9462241400

main94622-41400

14 parts on this diagram · 3 diagrams in section
