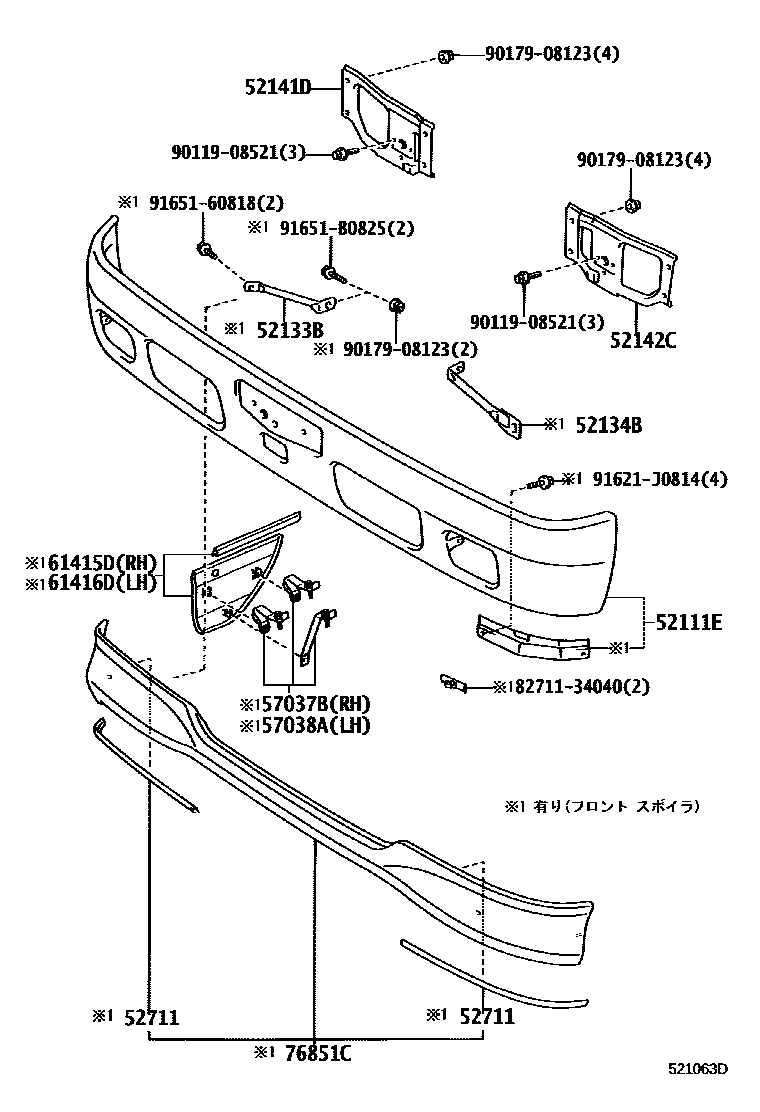

FRONT BUMPER & BUMPER STAY
52111EBAR, FRONT BUMPER
main52101-37131-A0iXZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,50#,538,548,568..(T2,T3,T4,T5)..(CBU,IV3)200610-201106
main52101-37131-B0iBZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..SCB..(T2,T3,T4,T5)..(CBU,IV3)200610-201106
main52101-37131-B1iXZU348,504..WT..(DCRTH,DCRUD)..IV3;XZU508..T4..5F..(DCRTH,DCRUD)..IV3;BZU300,340,XZU304,344,368,388,568..T4..MTM..20T..(DCRTJ,DCRUE,LPG)..IV3200610-201106
main52101-37131-D0iXZU344..30T..DCRTK..IV3;XZU308,548..SCB..(T3,T4,T5)..MTM..(DCRTJ,DCRUE)..IV3200801-201106
main52101-37131-H0iXZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,50#,538,548,568..(T2,T3,T4,T5)..(CBU,IV3)200610-201106
main52101-37131-J1iXZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,50#,538,548,568..(T2,T3,T4,T5)..(CBU,IV3)200610-201106
main52101-37131-K0iXZU308..SCB..(T4,T5)..MTM..(DCRTJ,DCRUE)..IV3;XZU344,548..5F..(20T,30T)..(DCRTK,DCRUE)..IV3200610-201106
main52101-37141iXZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,50#,538,548,568..(03S,06S,T2,T3,T4,T5)..(CBU,IV3)200610-201106
main52101-37171-A0iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..DCB,SCB200610-201106
main52101-37171-B0iBZU300,340,TRU300,340,500,XZU30#,33#,34#,354,368,378,388,50#,538,548,568..SCB..(T2,T3,T4,T5)200610-201106
main52101-37171-B1iXZU348,504..WT..(DCRTH,DCRUD)..IV3;XZU508..T4..5F..(DCRTH,DCRUD)..IV3;BZU300,340,XZU304,344,368,388,568..T4..MTM..20T..(DCRTJ,DCRUE,LPG)..IV3200610-201106
main52101-37171-D1iXZU304,334,378..IV4;XZU308..SCB..(T4,T5)..MTM..(DCRTJ,DCRUE)..IV3;XZU344,548..5F..(20T,30T)..(DCRTK,DCRUE)..IV3200610-201106
main52101-37171-H0iBZU300;BZU340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7)200610-201106
main52101-37171-J1iBZU300;BZU340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7)200610-201106
main52101-37171-K0iXZU308..SCB..(T4,T5)..MTM..(DCRTJ,DCRUE)..IV3;XZU344,548..5F..(20T,30T)..(DCRTK,DCRUE)..IV3200610-201106
main52101-37181iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106
main52111-37300iBZU300,340,TRU300,340,500,XZU308,314..(DM5,T2,T3,T4,T5)..(CBU,IV3);XZU304,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(03S,06S,DM3,DM5,DM7,T2,T3,T4,T5)..(20T,30T)..(CBU,IV3)200610-201106
52133BBRACKET, FRONT BUMPER EXTENSION MOUNTING, RH
main52133-37060iXZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,50#,538,548,568..(03S,06S,T2,T3,T4,T5)..(CBU,IV3)200610
52134BBRACKET, FRONT BUMPER EXTENSION MOUNTING, LH
main52134-37060iXZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,50#,538,548,568..(03S,06S,T2,T3,T4,T5)..(CBU,IV3)200610
52141DSTAY, FRONT BUMPER, RH
main52141-37100iXZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568200610
52142CSTAY, FRONT BUMPER, LH
main52142-37080iXZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568200610
52711MOULDING, FRONT BUMPER
main52711-37020-A0×2iXZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,50#,538,548,568..(T2,T3,T4,T5)..(CBU,IV3)200610-201106
WHITE,058
main52711-37020-B0×2iBZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..SCB..(T2,T3,T4,T5)..(CBU,IV3)200610-201106
SILVER ME.,199
main52711-37020-H0×2iXZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,50#,538,548,568..(T2,T3,T4,T5)..(CBU,IV3)200610-201106
TURQUOISE,766
main52711-37020-J0×2iXZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,50#,538,548,568..(T2,T3,T4,T5)..(CBU,IV3)200610-201106
BLUE,8P0
main52711-37040×2iXZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,50#,538,548,568..(03S,06S,T2,T3,T4,T5)..(CBU,IV3)200610-201106
57037BSTAY SUB-ASSY, FRONT STEP, RH
main57037-37010iXZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,50#,538,548,568..(03S,06S,T2,T3,T4,T5)..(CBU,IV3)200610
57038ASTAY SUB-ASSY, FRONT STEP, LH
main57038-37060iXZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,50#,538,548,568..(03S,06S,T2,T3,T4,T5)..(CBU,IV3)200610-201106
61415DPANEL, FRONT STEP UNDER, RH
main61415-37020-A0iXZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,50#,538,548,568..(T2,T3,T4,T5)..(CBU,IV3)200610-201106
WHITE,058
main61415-37020-B0iBZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..SCB..(T2,T3,T4,T5)..(CBU,IV3)200610-201106
SILVER ME.,199
main61415-37020-H0iXZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,50#,538,548,568..(T2,T3,T4,T5)..(CBU,IV3)200610-201106
TURQUOISE,766
main61415-37020-J0iXZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,50#,538,548,568..(T2,T3,T4,T5)..(CBU,IV3)200610-201106
BLUE,8P0
main61415-37030iXZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,50#,538,548,568..(03S,06S,T2,T3,T4,T5)..(CBU,IV3)200610-201106
61416DPANEL, FRONT STEP UNDER, LH
main61416-37020-A0iXZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,50#,538,548,568..(T2,T3,T4,T5)..(CBU,IV3)200610-201106
WHITE,058
main61416-37020-B0iBZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..SCB..(T2,T3,T4,T5)..(CBU,IV3)200610-201106
SILVER ME.,199
main61416-37020-H0iXZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,50#,538,548,568..(T2,T3,T4,T5)..(CBU,IV3)200610-201106
TURQUOISE,766
main61416-37020-J0iXZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,50#,538,548,568..(T2,T3,T4,T5)..(CBU,IV3)200610-201106
BLUE,8P0
main61416-37030iXZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,50#,538,548,568..(03S,06S,T2,T3,T4,T5)..(CBU,IV3)200610-201106
76851CFRONT SPOILER
main52102-37010-A1iXZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,50#,538,548,568..(T2,T3,T4,T5)..(CBU,IV3)200610-201106
WHITE,058
main52102-37010-B1iBZU300,340,TRU300,340,500,XZU30#,33#,34#,368,378,388,50#,538,548,568..SCB..(T2,T3,T4,T5)..(CBU,IV3)200610-201106
SILVER ME.,199
main52102-37010-H1iXZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,50#,538,548,568..(T2,T3,T4,T5)..(CBU,IV3)200610-201106
TURQUOISE,766
main52102-37010-J1iXZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,50#,538,548,568..(T2,T3,T4,T5)..(CBU,IV3)200610-201106
BLUE,8P0
main52102-37020iXZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,33#,34#,368,50#,538,548,568..(03S,06S,T2,T3,T4,T5)..(CBU,IV3)200610-201106
8271134040WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-34040
9011908521
main90119-08521
9017908123
main90179-08123
91621J0814
main91621-J0814
9165160818
main91651-60818
91651B0825
main91651-B0825
17 parts on this diagram · 2 diagrams in section
