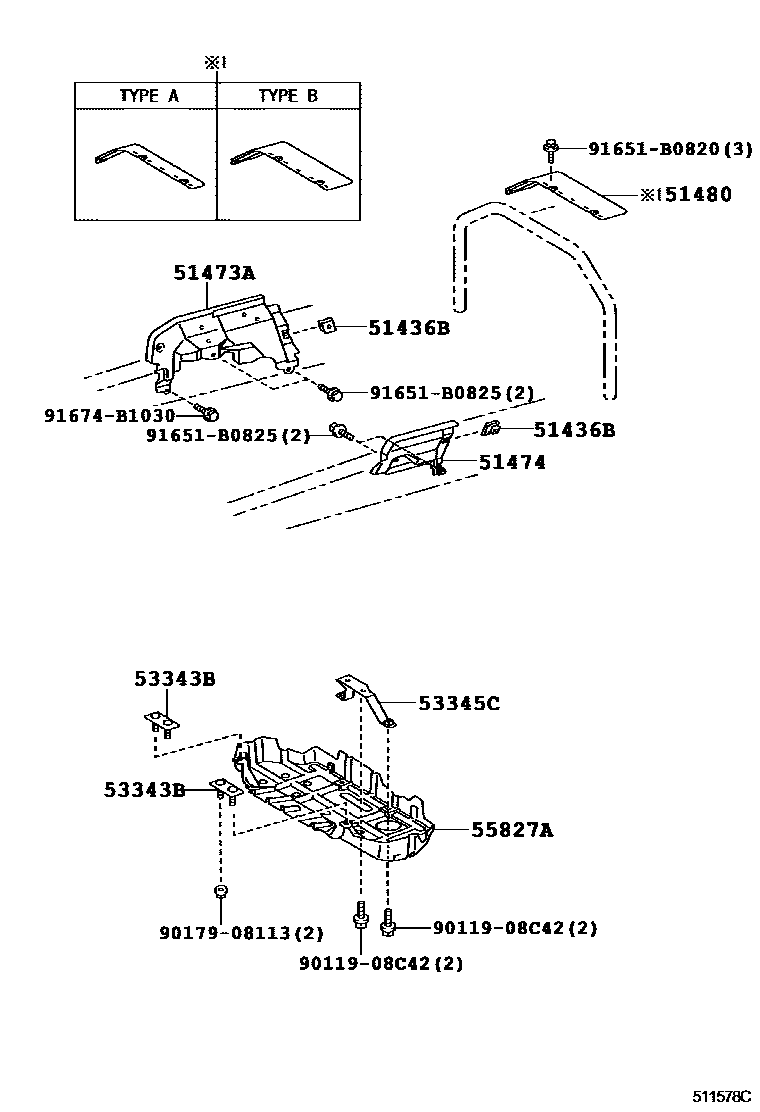

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

51436BBRACKET, ENGINE SIDE COVER, NO.1 RH

main51436-37080×2iXZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568200610

51473ACOVER SUB-ASSY, ENGINE SIDE, RH

main51473-37180iBZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554200610

main51473-37201iXZU368,378,388,568..SCB200610

main51473-37211iXZU378,388..DCB200610

main51473-37270iXZU308,338,348,508,538,548200610

51474COVER SUB-ASSY, ENGINE SIDE, LH

main51474-37091iXZU368,378,388,568200610

main51474-37120iBZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554200610

main51474-37190iXZU308,338,348,508,538,548200610

51480SHUTTER ASSY, ENGINE REAR SIDE, RH

main51480-37090iXZU304..(T4,T5)..CBU;XZU304..(T3,T4,T5)..IV3;XZU308,50#..SCB..(CBU,IV3)200610

main51480-37110iXZU308,354..IV6;XZU304..(CBU,IV6)..1NO;XZU33#,34#,538,548..SCB;XZU304..30T..DCRUE..IV3..4NO200610

main51480-37130iXZU304,314,324,354,524,554..DM3,DM5,DM7200610

53343BBRACKET, AIR DEFLECTOR, NO.1

main53343-37020×2iXZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(DCB,SCB)..(DCRTJ,DCRTK,DCRTM)..(CBU,IV3,IV6,IV7)200610

53345CBRACKET, AIR DEFLECTOR, NO.2

main53345-37030iXZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(DCB,SCB)..(DCRTJ,DCRTK,DCRTM)..(CBU,IV3,IV6,IV7)200610

55827ADUCT, VENTILATOR AIR GUIDE

main55827-37051iXZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(DCB,SCB)..(DCRTJ,DCRTK,DCRTM)..(CBU,IV3,IV6,IV7)200610-201011

main55827-37052iXZU30#,314,324,33#,34#,354,368,378,388,50#,538,548,554,568..(DCB,SCB)..(DCRTJ,DCRTK,DCRTM)..(CBU,IV3,IV6,IV7)201012

9011908C42

main90119-08C42

9017908113

main90179-08113

91651B0820

main91651-B0820

91651B0825

main91651-B0825

91674B1030

main91674-B1030

12 parts on this diagram · 6 diagrams in section
