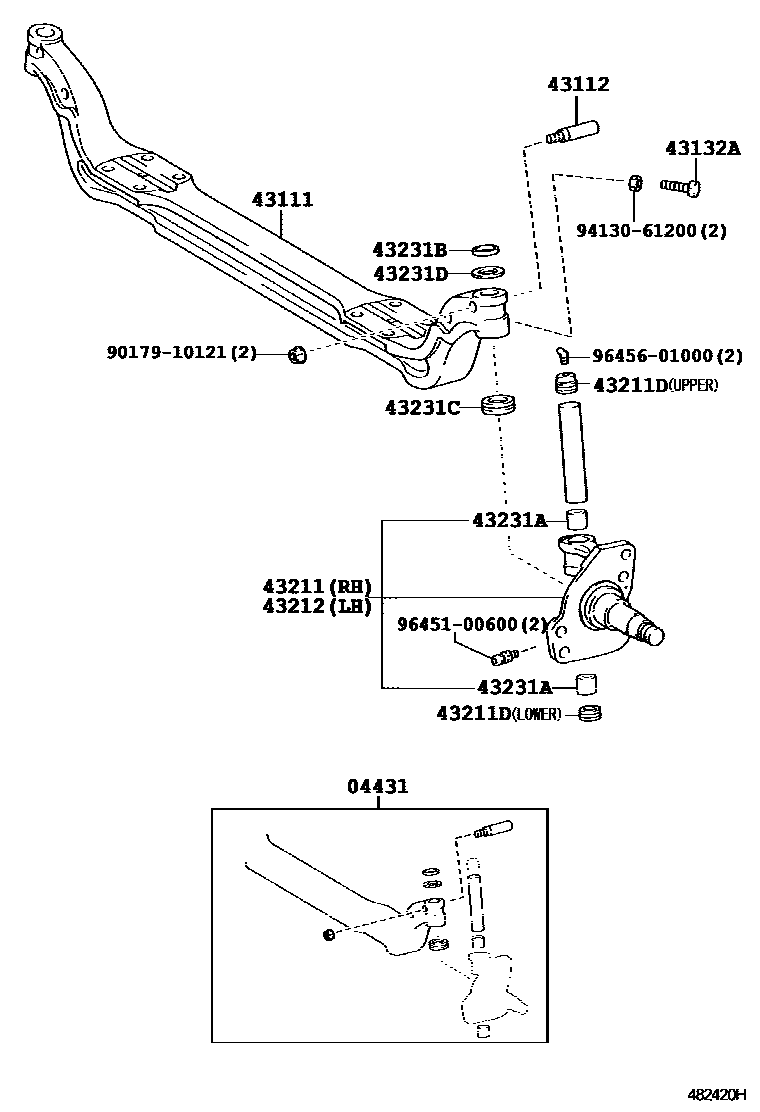

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1 0003 1 0004 1

04431PIN KIT, STEERING KNUCKLE KING

main04431-37390×2iBZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554200610-200904

main04431-37440×2iBZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554200904-201106

sub0443C-37020

43111I BEAM, FRONT AXLE

main43111-37031iBZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T200610

main43111-37040iXZU334,344,354..35T,40T200610

43112PIN, KING PIN LOCK

main43112-36020×2iBZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554200610

43132ABOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT)

main90106-12001×2iXZU334,344,354..35T,40T200610

main90106-12008×2iBZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T200610

main90106-12015×2iXZU308,338,348,508,538,548200610

43211KNUCKLE, STEERING, RH

main43201-37110iBZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554200610

main43201-37130iXZU308,338,348,508,538,548200610

main43211-37110iXZU368,378,388,568200610

sub43211-37190

43211DPLUG (FOR STEERING KNUCKLE)

main90345-33003×2iBZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554200610

main90345-33004×2iBZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554200610

43212KNUCKLE, STEERING, LH

main43202-37110iBZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554200610

main43202-37130iXZU308,338,348,508,538,548200610

main43212-37110iXZU368,378,388,568200610

sub43212-37190

43231ABUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUSH)

main90999-73086×4iBZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554200610

43231BSEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN)

main90312-28003×2iBZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554200610

43231CBEARING (FOR STEERING KNUCKLE KING PIN)

main90367-28001×2iBZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554200610

43231DSHIM (FOR KING PIN)

main90564-28001×2iBZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554200610

main90564-28002×2iBZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554200610

main90564-28003×2iBZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554200610

main90564-28004×2iBZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554200610

main90564-28005×2iBZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554200610

main90564-28006×2iBZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554200610

main90564-28007×2iBZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554200610

main90564-28008×2iBZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554200610

9017910121

main90179-10121

9413061200

main94130-61200

9645100600

main96451-00600

9645601000

main96456-01000

15 parts on this diagram · 4 diagrams in section
