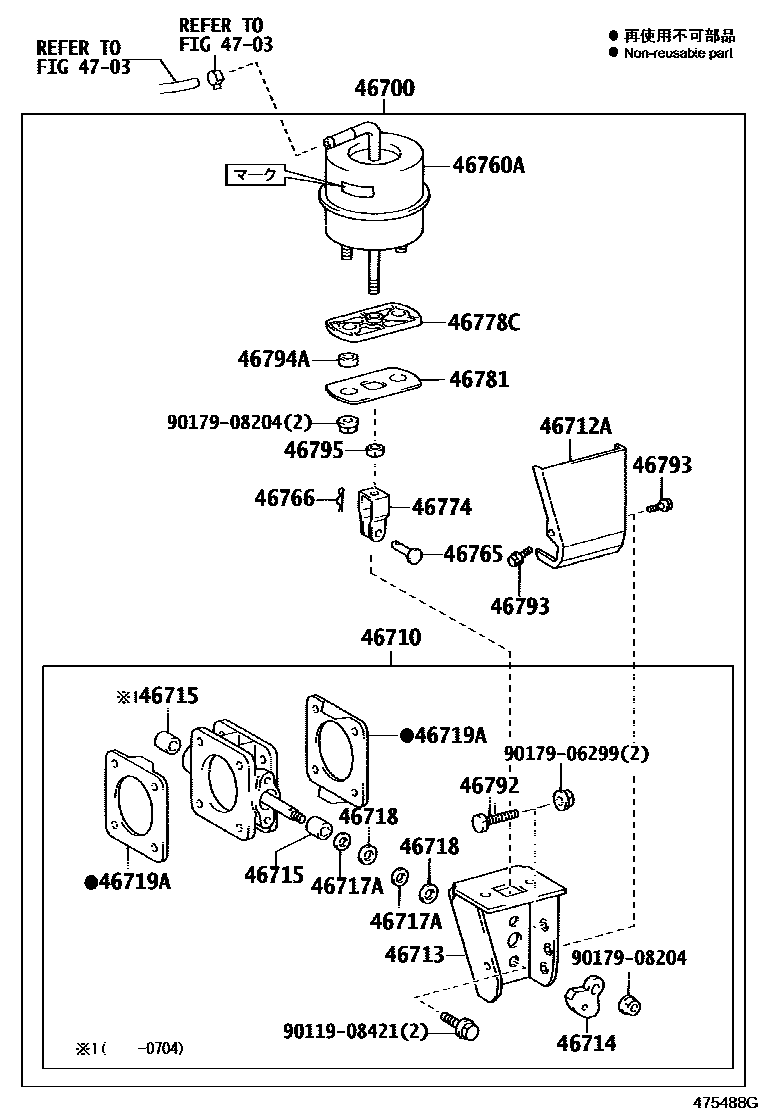

EXHAUST BRAKE ASSEMBLY & VACUUM CYLINDER

46700RETARDER ASSY, EXHAUST

main46700-37151iXZU378..IV4;XZU30#,314,324,33#,34#,354,50#,524,538,548,554..(DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7)200610-200611

main46700-37152iXZU378..IV4;XZU30#,314,324,33#,34#,354,50#,524,538,548,554..(DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7)200611-200702

main46700-37153iXZU378..IV4;XZU30#,314,324,33#,34#,354,50#,524,538,548,554..(DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7)200703-200704

main46700-37154iXZU378..IV4;XZU30#,314,324,33#,34#,354,50#,524,538,548,554..(DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV7)200704-201106

main46700-37161iXZU378..CBU,IV3;XZU304,508..03S,06S,DM6;XZU30#,354..(T3,T4)..IV6; XZU50#..T4..IV3;XZU348..SCB..T4..DCRTJ..IV3;XZU344..T4..30T..DCRTJ..IV3;XZU30#,33#,538,548..SCB..T4..(DCRTJ,DCRTK)..IV3200610-200611

main46700-37162iXZU378..CBU,IV3;XZU304,508..03S,06S,DM6;XZU30#,354..(T3,T4)..IV6; XZU50#..T4..IV3;XZU348..SCB..T4..DCRTJ..IV3;XZU344..T4..30T..DCRTJ..IV3;XZU30#,33#,538,548..SCB..T4..(DCRTJ,DCRTK)..IV3200611-200702

main46700-37163iXZU378..CBU,IV3;XZU304,508..03S,06S,DM6;XZU30#,354..(T3,T4)..IV6; XZU50#..T4..IV3;XZU348..SCB..T4..DCRTJ..IV3;XZU344..T4..30T..DCRTJ..IV3;XZU30#,33#,538,548..SCB..T4..(DCRTJ,DCRTK)..IV3200703-200704

main46700-37164iXZU378..CBU,IV3;XZU304,508..03S,06S,DM6;XZU30#,354..(T3,T4)..IV6200704

main46700-37171iXZU368,388,568;XZU304,334..IV4200610-200611

main46700-37172iXZU368,388,568;XZU304,334..IV4200611-200702

main46700-37173iXZU368,388,568;XZU304,334..IV4200703-200704

main46700-37174iXZU368,388,568;XZU304,334..IV4200704-201106

46710VALVE ASSY, EXHAUST BRAKE

main46710-37151iXZU378..CBU,IV3;XZU304,508..03S,06S,DM6;XZU30#,354..(T3,T4)..IV6; XZU50#..T4..IV3;XZU348..SCB..T4..DCRTJ..IV3;XZU344..T4..30T..DCRTJ..IV3;XZU30#,33#,538,548..SCB..T4..(DCRTJ,DCRTK)..IV3200610-200704

main46710-37152iXZU368,388,568;XZU304,334..IV4;XZU50#..T4..IV3;XZU348..SCB..T4..(DCRTJ,DCRUE)..IV3;XZU344..T4..30T..(DCRTJ,DCRUE)..IV3;XZU30#,33#,538,548..SCB..T4..(DCRTJ,DCRTK,DCRTM,DCRUE)..IV3; XZU378..CBU,IV3;XZU334..5F..IV4;XZU334..T4..5F..IV3;XZU304,508..03S,06S,DM6;XZU30#,354..(T3,T4)..IV6; XZU378..IV4;XZU304..T4..CBU;XZU334..5F..CBU;XZU334..T3..5F..IV3;XZU334..SCB..(6F,6FC);XZU304..T4..(5F,6FC)..IV3;XZU304..(DM3,T3,T5)..(CBU,IV3,IV7);XZU308,314,324,338,34#,354,50#,524,538,548,554..(DCB,SCB)..(CBU,IV3)200704

46712ACOVER, EXHAUST BRAKE BRACKET

main46712-37150iXZU538..5F..DCRTJ..IV3;XZU50#,548..T4..5F..IV3200610-200801

46713BRACKET, EXHAUST VALVE

main46713-37150iXZU378..IV4;XZU344..20T,35T;XZU348..DCRTJ..CBU;XZU538..DCRTH..IV3;XZU308,348..DCB..IV3;XZU344..30T..DCRTJ..CBU;XZU344..T3..30T..DCRTJ..IV3;XZU304,33#,538..(T2,T4)..CBU;XZU308,50#,548..(DCB,SCB)..CBU;XZU338,34#..(20T,30T)..(DCRTH,DCRTK);XZU308,338,348,50#,548..(T2,T3,T5)..IV3;XZU304,334..(DM3,T3,T5)..(CBU,IV3,IV4,IV7);XZU314,324,354,368,388,524,554,568..CBU,IV3200610-200703

46714LEVER, EXHAUST VALVE

main46714-37030iXZU508..VAN;XZU538..DCRTJ..IV3;XZU304..30T..DCRTJ..IV6;XZU308,348..DCB..DCRUE..IV3;XZU344..T4..30T..DCRTJ..IV3;XZU354,378..(CBU,IV3,IV6)..1NO;XZU308,348..(T3,T5)..DCRUE..IV3;XZU308,338,348..(DCRTM,DCRUE)..CBU;XZU348..SCB..T4..(DCRTJ,DCRTM,DCRUE)..IV3;XZU304,334,50#,548..(DM6,T4)..(DCRTH,DCRTJ)..(IV3,IV6);XZU308,338..SCB..T4..(DCRTJ,DCRTK,DCRTM,DCRUE)..(IV3,IV6);XZU304,314,324,334,344,354,50#,524,538,548,554..DCRTM,DCRUD,DCRUE200610

46715BUSH, EXHAUST VALVE, NO.1

main46715-37031×2iXZU508..VAN;XZU50#..T4..IV3;XZU304..30T..IV6;XZU344..T4..30T..DCRTJ..IV3;XZU348..SCB..T4..DCRTJ..IV3;XZU354,378..(CBU,IV3,IV6)..1NO;XZU30#,33#,538,548..SCB..(DM6,T4)..(DCRTJ,DCRTK)..(IV3,IV6)200610-200704

46717ARING, EXHAUST VALVE SEAL, NO.1

main46717-37150×2iXZU378..IV4;XZU344..20T,35T;XZU348..DCRTJ..CBU;XZU538..DCRTH..IV3;XZU308,348..DCB..IV3;XZU344..30T..DCRTJ..CBU;XZU344..T3..30T..DCRTJ..IV3;XZU304,33#,538..(T2,T4)..CBU;XZU308,50#,548..(DCB,SCB)..CBU;XZU338,34#..(20T,30T)..(DCRTH,DCRTK);XZU308,338,348,50#,548..(T2,T3,T5)..IV3;XZU304,334..(DM3,T3,T5)..(CBU,IV3,IV4,IV7);XZU314,324,354,368,388,524,554,568..CBU,IV3200610-200703

46718RING, EXHAUST VALVE SEAL, NO.2

main46718-37030×2iXZU508..VAN;XZU538..DCRTJ..IV3;XZU304..30T..DCRTJ..IV6;XZU308,348..DCB..DCRUE..IV3;XZU344..T4..30T..DCRTJ..IV3;XZU354,378..(CBU,IV3,IV6)..1NO;XZU308,348..(T3,T5)..DCRUE..IV3;XZU308,338,348..(DCRTM,DCRUE)..CBU;XZU348..SCB..T4..(DCRTJ,DCRTM,DCRUE)..IV3;XZU304,334,50#,548..(DM6,T4)..(DCRTH,DCRTJ)..(IV3,IV6);XZU308,338..SCB..T4..(DCRTJ,DCRTK,DCRTM,DCRUE)..(IV3,IV6);XZU304,314,324,334,344,354,50#,524,538,548,554..DCRTM,DCRUD,DCRUE200610

46719AGASKET, EXHAUST RETARDER

main46719-37030×2iXZU378..IV4;XZU344..20T,35T;XZU348..DCRTJ..CBU;XZU538..DCRTH..IV3;XZU308,348..DCB..IV3;XZU344..30T..DCRTJ..CBU;XZU344..T3..30T..DCRTJ..IV3;XZU304,33#,538..(T2,T4)..CBU;XZU308,50#,548..(DCB,SCB)..CBU;XZU338,34#..(20T,30T)..(DCRTH,DCRTK);XZU308,338,348,50#,548..(T2,T3,T5)..IV3;XZU304,334..(DM3,T3,T5)..(CBU,IV3,IV4,IV7);XZU314,324,354,368,388,524,554,568..CBU,IV3200610-200703

46760ACHAMBER ASSY, EXHAUST BRAKE

main46760-37152iXZU378..IV4;XZU304..T4..CBU;XZU304..T4..(5F,6FC)..IV3;XZU304..(DM3,T3,T5)..(CBU,IV3,IV7);XZU308,314,324,33#,34#,354,50#,524,538,548,554..(DCB,SCB)..(CBU,IV3)200611

main46760-37160iXZU508..VAN;XZU50#..T4..IV3;XZU304..30T..IV6;XZU344..T4..30T..DCRTJ..IV3;XZU348..SCB..T4..DCRTJ..IV3;XZU354,378..(CBU,IV3,IV6)..1NO;XZU30#,33#,538,548..SCB..(DM6,T4)..(DCRTJ,DCRTK)..(IV3,IV6)200610-200611

main46760-37162iXZU378..CBU,IV3;XZU304,508..03S,06S,DM6;XZU30#,354..(T3,T4)..IV6; XZU50#,548..T4..5F..IV3;XZU538..5F..(DCRTJ,DCRUE)..IV3; XZU538..6FC..DCRTJ..IV3;XZU50#,548..T4..6FC..IV3;XZU344..T4..30T..DCRTJ..IV3;XZU348..SCB..T4..DCRTJ..IV3;XZU30#,33#..SCB..T4..(5F,6FC)..(DCRTJ,DCRTK,DCRTM,DCRUE)..IV3200611

main46760-37172iXZU368,388,568;XZU304,334..IV4200704

46765PIN, VACUUM CYLINDER CLEVIS

main46765-37030iXZU308..DCRUE..IV3;XZU348..T3..DCRUE..IV3;XZU348..DCB..DCRUE..IV3;XZU354,378..(CBU,IV3,IV6)..1NO;XZU30#..(T3,T4)..(5F,6FC)..IV6;XZU308,348..(DCRTM,DCRUE)..CBU;XZU304,508..(03S,06S,DM6)..(DCRTH,DCRTJ);XZU348..SCB..T4..(DCRTJ,DCRTM,DCRUE)..IV3;XZU304,314,324,33#,344,354,50#,524,538,548,554..DCRTM,DCRUD,DCRUE; XZU538..6FC..DCRTJ..IV3;XZU50#,548..T4..6FC..IV3;XZU344..T4..30T..DCRTJ..IV3;XZU30#,33#..SCB..T4..(DCRTJ,DCRTK,DCRTM)..IV3200610

46766PIN, VACUUM CYLINDER CLEVIS SNAP

main46766-37030iXZU308..DCRUE..IV3;XZU348..T3..DCRUE..IV3;XZU348..DCB..DCRUE..IV3;XZU354,378..(CBU,IV3,IV6)..1NO;XZU30#..(T3,T4)..(5F,6FC)..IV6;XZU308,348..(DCRTM,DCRUE)..CBU;XZU304,508..(03S,06S,DM6)..(DCRTH,DCRTJ);XZU348..SCB..T4..(DCRTJ,DCRTM,DCRUE)..IV3;XZU304,314,324,33#,344,354,50#,524,538,548,554..DCRTM,DCRUD,DCRUE; XZU378..IV4;XZU348..DCRTJ..CBU;XZU538..DCRTH..IV3;XZU344..30T..DCRTJ..CBU;XZU344..T3..30T..DCRTJ..IV3;XZU344..(20T,35T)..(DCRTJ,DCRTK);XZU308,348..DCB..(DCRTH,DCRTJ)..IV3;XZU338,34#..(20T,30T)..(DCRTH,DCRTK);XZU304,33#,538..(T2,T4)..(DCRTH,DCRTJ)..CBU;XZU308,50#,548..(DCB,SCB)..(DCRTH,DCRTJ,DCRTK)..CBU;XZU308,338,348,50#,548..(T2,T3,T5)..(DCRTH,DCRTJ,DCRTK)..IV3;XZU304,314,324,334,354,524,554..(DM3,DM5,DM7,T3,T5)..(DCRTJ,DCRTK)..(CBU,IV3,IV7); XZU538..6FC..DCRTJ..IV3;XZU50#,548..T4..6FC..IV3;XZU344..T4..30T..DCRTJ..IV3;XZU30#,33#..SCB..T4..(DCRTJ,DCRTK,DCRTM)..IV3200610

46774CLEVIS, EXHAUST BRAKE ROD

main46774-37030iXZU368,388,568;XZU304,334..IV4200610-200703

46778CGUIDE, EXHAUST RETARDER ACTUATOR ROD

main46778-37030iXZU378..IV4;XZU30#,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..(DM3,DM5,DM7,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7)200610-200703

main46778-37031iXZU368,388,568;XZU304,334..IV4;XZU50#..T4..IV3;XZU348..SCB..T4..(DCRTJ,DCRUE)..IV3;XZU344..T4..30T..(DCRTJ,DCRUE)..IV3;XZU30#,33#,538,548..SCB..T4..(DCRTJ,DCRTK,DCRTM,DCRUE)..IV3; XZU378..IV4;XZU304..T4..CBU;XZU304..T4..(5F,6FC)..IV3;XZU304..(DM3,T3,T5)..(CBU,IV3,IV7);XZU308,314,324,33#,34#,354,50#,524,538,548,554..(DCB,SCB)..(CBU,IV3)200704

46781INSULATOR, EXHAUST BRAKE CHAMBER, NO.1

main46781-37030iXZU308..DCRUE..IV3;XZU348..T3..DCRUE..IV3;XZU348..DCB..DCRUE..IV3;XZU354,378..(CBU,IV3,IV6)..1NO;XZU30#..(T3,T4)..(5F,6FC)..IV6;XZU308,348..(DCRTM,DCRUE)..CBU;XZU304,508..(03S,06S,DM6)..(DCRTH,DCRTJ);XZU348..SCB..T4..(DCRTJ,DCRTM,DCRUE)..IV3;XZU304,314,324,33#,344,354,50#,524,538,548,554..DCRTM,DCRUD,DCRUE; XZU378..IV4;XZU348..DCRTJ..CBU;XZU538..DCRTH..IV3;XZU344..30T..DCRTJ..CBU;XZU344..T3..30T..DCRTJ..IV3;XZU344..(20T,35T)..(DCRTJ,DCRTK);XZU308,348..DCB..(DCRTH,DCRTJ)..IV3;XZU338,34#..(20T,30T)..(DCRTH,DCRTK);XZU304,33#,538..(T2,T4)..(DCRTH,DCRTJ)..CBU;XZU308,50#,548..(DCB,SCB)..(DCRTH,DCRTJ,DCRTK)..CBU;XZU308,338,348,50#,548..(T2,T3,T5)..(DCRTH,DCRTJ,DCRTK)..IV3;XZU304,314,324,334,354,524,554..(DM3,DM5,DM7,T3,T5)..(DCRTJ,DCRTK)..(CBU,IV3,IV7); XZU538..6FC..DCRTJ..IV3;XZU50#,548..T4..6FC..IV3;XZU344..T4..30T..DCRTJ..IV3;XZU30#,33#..SCB..T4..(DCRTJ,DCRTK,DCRTM)..IV3200610

46792BOLT, EXHAUST VALVE STOPPER

main46792-37030×2iXZU378..IV4;XZU344..20T,35T;XZU348..DCRTJ..CBU;XZU538..DCRTH..IV3;XZU308,348..DCB..IV3;XZU344..30T..DCRTJ..CBU;XZU344..T3..30T..DCRTJ..IV3;XZU304,33#,538..(T2,T4)..CBU;XZU308,50#,548..(DCB,SCB)..CBU;XZU338,34#..(20T,30T)..(DCRTH,DCRTK);XZU308,338,348,50#,548..(T2,T3,T5)..IV3;XZU304,334..(DM3,T3,T5)..(CBU,IV3,IV4,IV7);XZU314,324,354,368,388,524,554,568..CBU,IV3200610-200703

46793BOLT, EXHAUST VALVE LINK COVER

main46791-37150×2iXZU368,388,568;XZU304,334..IV4200610-200703

46794ACOLLAR, ACTUATOR ROD GUIDE

main46794-37030×2iXZU368,388,568;XZU304,334..IV4200610-200703

46795NUT, EXHAUST VALVE BRACKET

main46795-37030iXZU368,388,568;XZU304,334..IV4200610-200703

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

9011908421

main90119-08421

9017906299

main90179-06299

9017908204

main90179-08204

23 parts on this diagram · 1 diagram in section
