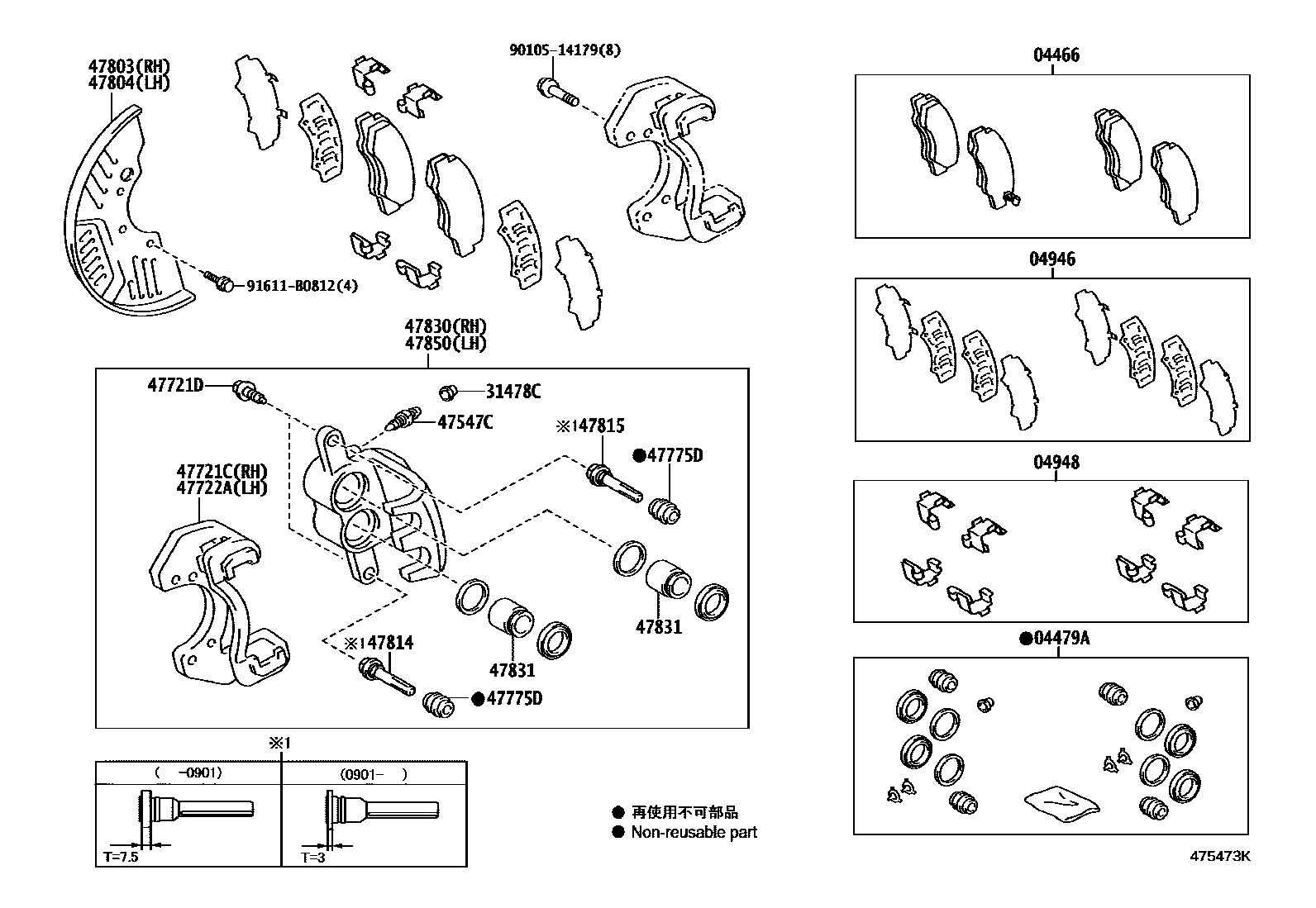

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04466PAD KIT, DISC BRAKE, REAR

main04465-37090iXZU334,344,354..35T,40T200610-200812

main04465-37220iXZU50#,524,538,548,554..WT200610

main04466-37100iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..20T,30T200610

04479ACYLINDER KIT, DISC BRAKE, REAR

main04478-37090iXZU334,344,354..35T,40T200610-200901

main04478-37180iXZU50#,524,538,548,554..WT200610

main04478-37230iXZU334,344,354..35T,40T200901

main04479-37220iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..20T,30T200610-200901

main04479-37290iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..20T,30T200901

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04945-37050iXZU334,344,354..35T,40T200610-200812

main04945-37150iXZU50#,524,538,548,554..WT200610

main04946-37030iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..20T,30T200610-200901

main04946-37031iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..20T,30T200901

04948FITTING KIT, DISC BRAKE, REAR

main04947-37060iXZU50#,524,538,548,554..WT200610

main04948-37010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568200610

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iXZU50#,524,538,548,554..WT200610

main31478-37030iXZU334,344,354..35T,40T200610-200901

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-12030iXZU50#,524,538,548,554..WT200610

main47847-37030iXZU334,344,354..35T,40T200610-200901

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-37010iXZU334,344,354..35T,40T200610

main47821-37030iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..20T,30T200610

main47821-37040iXZU50#,524,538,548,554..WT200610

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA601iXZU50#,524,538,548,554..WT200610-201106

main90105-37120iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568200610-201106

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-37010iXZU334,344,354..35T,40T200610

main47822-37030iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..20T,30T200610

main47822-37040iXZU50#,524,538,548,554..WT200610

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-37120iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568200610-200901

main47775-37121iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568200901

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-37010iXZU334,344,354..35T,40T200610-201106

main47803-37020iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(20T,30T)..WT200610-201106

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-37010iXZU334,344,354..35T,40T200610-201106

main47804-37020iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(20T,30T)..WT200610-201106

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-37030iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..20T,30T200610-200901

main47814-37031iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..20T,30T200901

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-37030iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..20T,30T200610-200901

main47815-37031iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..20T,30T200901

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-37010iXZU334,344,354..35T,40T200610-200901

main47830-37011iXZU334,344,354..35T,40T200901

main47830-37030iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..20T,30T200610-200901

main47830-37031iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..20T,30T200901

main47830-37040iXZU50#,524,538,548,554..WT200610-200912

main47830-37041iXZU50#,524,538,548,554..WT200912-201008

main47830-37042iXZU50#,524,538,548,554..WT201008

47831PISTON, REAR DISC BRAKE

main47831-37030iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..20T,30T200610

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-37010iXZU334,344,354..35T,40T200610-200901

main47850-37011iXZU334,344,354..35T,40T200901

main47850-37030iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..20T,30T200610-200901

main47850-37031iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..20T,30T200901

main47850-37040iXZU50#,524,538,548,554..WT200610-200912

main47850-37041iXZU50#,524,538,548,554..WT200912-201008

main47850-37042iXZU50#,524,538,548,554..WT201008

9010514179

main90105-14179

91611B0812

main91611-B0812
