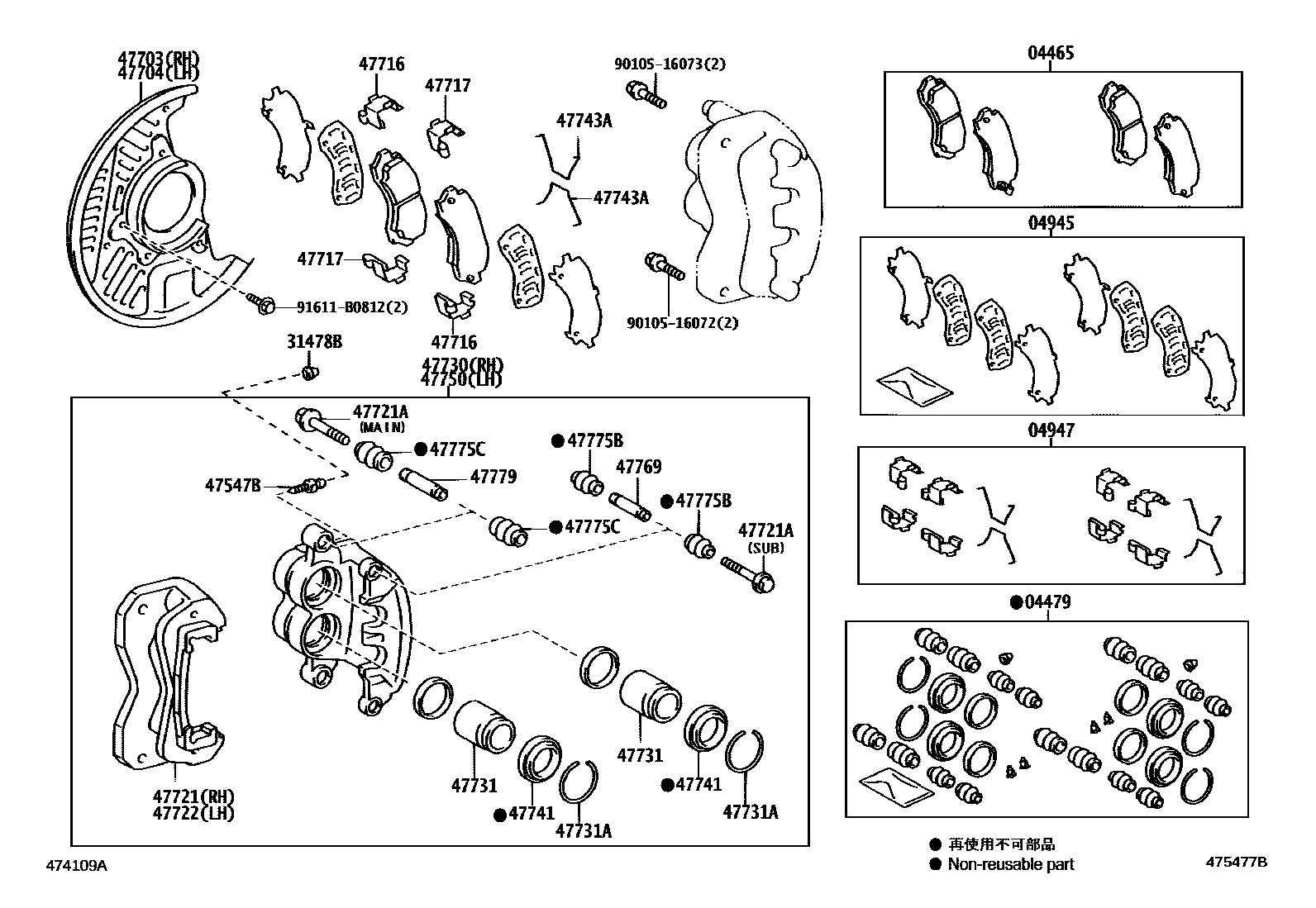

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-37090iXZU334,344,354..35T,40T200610

sub04465-37091

main04465-37150iXZU304..T4..30T;XZU368,378,388,568;BZU300,XZU344..(DM6,T3)..20T;BZU300,340,TRU300,XZU314,334,344..30T;XZU30#,324,338,348,504..DM3,DM6,DM7,T2,T3,T5200610

sub04465-37151

main04465-37160iXZU308,338,348..T4;BZU300,340,TRU300,340,500,XZU304,344,354..(DM5,T2,T4)..20T200610

main04465-37220iXZU50#,524,538,548,554..WT200610

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-37020iXZU334,344,354..35T,40T200610-200901

main04478-37180iXZU50#,524,538,548,554..WT200610-201008

main04478-37181iXZU50#,524,538,548,554..WT201008

main04478-37230iXZU334,344,354..35T,40T200901

main04479-37010iXZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..20T,30T200610

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-37020iXZU308,338,348..T4;BZU300,340,TRU300,340,500,XZU304,344,354..(DM5,T2,T4)..20T200610

main04945-37030iXZU304..T4..30T;XZU368,378,388,568;BZU300,XZU344..(DM6,T3)..20T;BZU300,340,TRU300,XZU314,334,344..30T;XZU30#,324,338,348,504..DM3,DM6,DM7,T2,T3,T5200610

main04945-37050iXZU334,344,354..35T,40T200610

sub04945-37051

main04945-37150iXZU50#,524,538,548,554..WT200610

04947FITTING KIT, DISC BRAKE, FRONT

main04947-36020iXZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..20T,30T200610

main04947-37060iXZU50#,524,538,548,554..WT200610

main04948-37010iXZU334,344,354..35T,40T200610-200812

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T200610

main31478-37030×2iXZU334,344,354..35T,40T200610

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010×2iXZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..20T,30T200610

main47547-12030×2iXZU50#,524,538,548,554..WT200610

main47847-37030×2iXZU334,344,354..35T,40T200610

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-37030iBZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T200610-201106

sub47703-37031

main47703-37041iXZU308,338,348,508,538,548200610-201106

sub47703-37042

main47703-37070iXZU334,344,354..35T,40T200610-201106

main47781-37090iXZU368,378,388,568200610-201106

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-37030iBZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554..20T,30T200610-201106

sub47704-37031

main47704-37041iXZU308,338,348,508,538,548200610-201106

sub47704-37042

main47704-37070iXZU334,344,354..35T,40T200610-201106

main47782-37070iXZU368,378,388,568200610-201106

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-36020×4iXZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..20T,30T200610

main47716-37120×4iXZU334,344,354..35T,40T200610

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-36020×4iXZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..20T,30T200610

main47717-37120×4iXZU334,344,354..35T,40T200610

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-37020iBZU300,340,TRU300,340,500,XZU304,344,354..(DM5,T2,T4)..20T200610

main47721-37030iXZU304..T4..30T;XZU344..T3..20T;XZU304..DM3,DM6,T3,T5;BZU300,XZU324,504..DM6,DM7,T5;BZU300,340,TRU300,XZU314,334,344..30T200610

main47721-37050iXZU308,338,348..T4200610

main47721-37160iXZU334,344,354..35T,40T200610

main47721-37180iXZU368,378,388,568;XZU308,338,348..T2,T3,T5200610

main47721-37250iXZU504,524,554..WT200610

main47721-37260iXZU508,538,548200610

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90015-AA601×4iXZU50#,524,538,548,554..WT200610

main90105-37120×4iXZU334,344,354..35T,40T200610

main90119-08B87×4iXZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..20T,30T200610

main90119-12256×4iXZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..20T,30T200610

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-37050iXZU308,338,348..T4200610

main47721-37180iXZU368,378,388,568;XZU308,338,348..T2,T3,T5200610

main47721-37260iXZU508,538,548200610

main47722-37010iBZU300,340,TRU300,340,500,XZU304,344,354..(DM5,T2,T4)..20T200610

main47722-37020iXZU304..T4..30T;XZU344..T3..20T;XZU304..DM3,DM6,T3,T5;BZU300,XZU324,504..DM6,DM7,T5;BZU300,340,TRU300,XZU314,334,344..30T200610

main47722-37160iXZU334,344,354..35T,40T200610

main47722-37250iXZU504,524,554..WT200610

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-37010iXZU308,338,348..T4200610

main47730-37020iBZU300,340,TRU300,340,500,XZU304,344,354..(DM5,T2,T4)..20T200610

main47730-37030iXZU304..T4..30T;XZU344..T3..20T;XZU304..DM3,DM6,T3,T5;BZU300,XZU324,504..DM6,DM7,T5;BZU300,340,TRU300,XZU314,334,344..30T200610

main47730-37160iXZU334,344,354..35T,40T200610-200901

main47730-37161iXZU334,344,354..35T,40T200901

sub47730-37162

main47730-37180iXZU368,378,388,568;XZU308,338,348..T2,T3,T5200610

main47730-37250iXZU504,524,554..WT200610-200912

main47730-37251iXZU504,524,554..WT200912-201008

main47730-37252iXZU504,524,554..WT201008

main47730-37260iXZU508,538,548200610-200912

main47730-37261iXZU508,538,548200912-201008

main47730-37262iXZU508,538,548201008

47731PISTON, FRONT DISC BRAKE

main47731-37010×4iXZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..20T,30T200610

sub47731-36020

main47731-37120×4iXZU334,344,354..35T,40T200610

main47731-60070×4iXZU50#,524,538,548,554..WT200610

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001×4iXZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..20T,30T200610

47741BOOT, FRONT DISC BRAKE CYLINDER

main47741-37010×4iXZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..20T,30T200610

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-36020×4iXZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..20T,30T200610

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-37010iXZU308,338,348..T4200610

main47750-37020iBZU300,340,TRU300,340,500,XZU304,344,354..(DM5,T2,T4)..20T200610

main47750-37030iXZU304..T4..30T;XZU344..T3..20T;XZU304..DM3,DM6,T3,T5;BZU300,XZU324,504..DM6,DM7,T5;BZU300,340,TRU300,XZU314,334,344..30T200610

main47750-37160iXZU334,344,354..35T,40T200610-200901

main47750-37161iXZU334,344,354..35T,40T200901

sub47750-37162

main47750-37180iXZU368,378,388,568;XZU308,338,348..T2,T3,T5200610

main47750-37250iXZU504,524,554..WT200610-200912

main47750-37251iXZU504,524,554..WT200912-201008

main47750-37252iXZU504,524,554..WT201008

main47750-37260iXZU508,538,548200610-200912

main47750-37261iXZU508,538,548200912-201008

main47750-37262iXZU508,538,548201008

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-36030×4iXZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..20T,30T200610

47775BBOOT, BUSH DUST, NO.1

main47775-36040×8iXZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..20T,30T200610

main47775-37120×2iXZU334,344,354..35T,40T200610-200901

main47775-37121×2iXZU334,344,354..35T,40T200901

47775CBOOT, BUSH DUST, NO.2

main47775-36050×8iXZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..20T,30T200610

main47775-37120×2iXZU334,344,354..35T,40T200610-200901

main47775-37121×2iXZU334,344,354..35T,40T200901

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-36010×4iXZU504..ST;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..20T,30T200610

9010516072

main90105-16072

9010516073

main90105-16073

91611B0812

main91611-B0812

26 parts on this diagram · 6 diagrams in section
