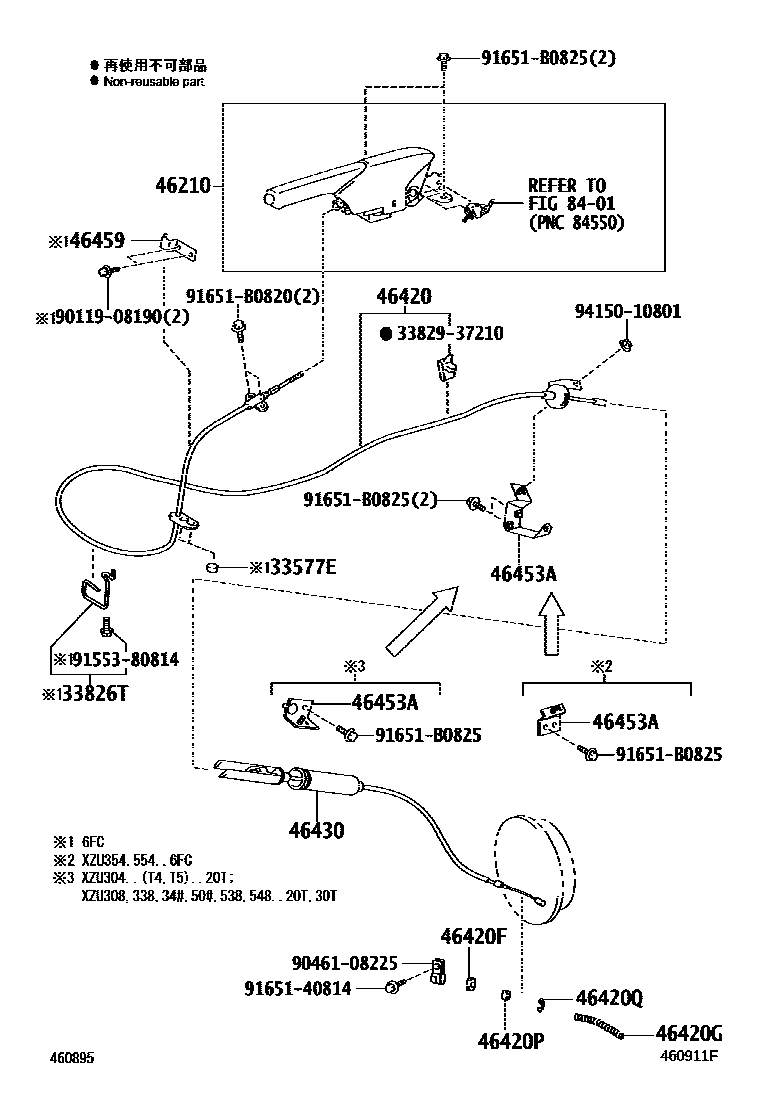

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1MYY5A,MYY6S 0005 1MYY5A 0006 1 0007 1 0008 1MYY5A,MYY6S

33577EGROMMET, SHIFT CABLE

main33577-37050iXZU30#,33#,34#,354,50#,538,548,554..6FC200610

33826TBRACKET, TRANSMISSION CONTROL CABLE, NO.2

main33829-37250iXZU30#,33#,34#,354,50#,538,548,554..6FC200610

sub33829-37350

46210LEVER ASSY, PARKING BRAKE

main46210-37100-B0iXZU334..DCRTK..CBU;TRU300,XZU314,324,354..DM5,DM7;XZU30#..(DM3,T4,T5)..DCRTJ..(CBU,IV3);XZU508,548,554..(DM5,T4,T5)..6FC..DCRTJ;XZU378,508,524,548,554..SCB..(DCRTK,200705-201001

sub46210-37101

main46210-37101-B0iXZU344..6FC;XZU348..DCRTK;XZU324..20T..DCRTJ;XZU334..DCRTK..CBU;XZU304..T4..5F..20T;XZU308..T5..(6F,6FC);XZU348..(T3,T4)..(6F,6FC);XZU344,378..SCB..(DCRTK,DCRUE);XZ201001-201106

sub46210-37240

sub46211-37070

main46210-37110-B0iXZU30#,324,354..DCRUE;XZU50#,524,538,548,554..(DM5,DM7,T3,T4,T5)..5F..WT..(DCRTH,DCRTJ)200610-201001

DK.CHARCOAL,TRIM1#

sub46210-37111

main46210-37111-B0iXZU34#..6FC;XZU308..T2,T4;XZU33#..6F,6FC;XZU338..5F..DCRTH;XZU338,348..T2..5F;XZU304..5F..30T..IV6;XZU308..T5..(6F,6FC);XZU304..6FC..30T..DCRTJ;XZU308,334..(T3,T5).201001-201106

DK.CHARCOAL,TRIM1#

sub46210-37250

sub46211-37080

main46210-37120-B0iXZU308..IV6;XZU334..T3..5F..IV3;XZU304..6FC..20T..IV3..1NO;BZU300,340,XZU304,354..5F..(IV3,IV6,IV7)..1NO200610-200910

sub46210-37121

main46210-37121-B0iXZU308..DCRUE..IV6200911-201001

sub46210-37122

main46210-37122-B0iXZU308..IV6;XZU334..T3..MTM..IV3;XZU304..6FC..20T..IV3..1NO;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO201001-201010

sub46210-37123

main46210-37123-B0iXZU308..IV6;XZU334..T3..MTM..IV3;XZU304..6FC..20T..IV3..1NO;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO201011-201104

sub46210-37124

main46210-37124-B0iXZU308..IV6;XZU334..T3..MTM..IV3;XZU304..6FC..20T..IV3..1NO;BZU300,340,XZU304,354..MTM..(IV3,IV6,IV7)..1NO201105-201106

sub46210-37260

sub46211-37090

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-37560iXZU344..35T;XZU304..30T..4NO;XZU334,354..SCB..1NO;XZU304..SCB..(DM3,DM6,T3)200610

main46420-37570iXZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T200610

main46420-37650iXZU304,334..IV4200610

main46420-37660iXZU314,324,354,524,554..4NO200610

main46420-37670iXZU368,378,388,568..CBU,IV3200610

main46420-37680iXZU378..IV4200610

main46420-37690iBZU300,340,TRU300,340,500200705

46420FSEAL, DUST(FOR PARKING BRAKE CABLE)

main90303-10001iXZU354,554..6FC;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..(03S,06S,DM3,DM5,T2,T3,T4,T5)..(5F,6FC)..(20T,30T)200610

46420GSPRING(FOR PARKING CABLE INNER WIRE SET)

main90501-14003iXZU354,554..6FC;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..(03S,06S,DM3,DM5,T2,T3,T4,T5)..(5F,6FC)..(20T,30T)200610

46420PSPACER, PARKING BRAKE

main90560-08002iXZU354,554..6FC;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..(03S,06S,DM3,DM5,T2,T3,T4,T5)..(5F,6FC)..(20T,30T)200610

46420QRING, E(FOR PARKING BRAKE CABLE)

main96160-00700iXZU354,554..6FC;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548..(03S,06S,DM3,DM5,T2,T3,T4,T5)..(5F,6FC)..(20T,30T)200610

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-37340iXZU304..5F..20T..1NO;XZU334,344,354..35T,40T200610-201106

main46430-37570iXZU304..5F..30T..4NO;XZU334..SCB..5F..30T;XZU304..(DM3,T3)..5F..(CBU,IV3,IV6)200610-201106

main46430-37710iXZU304,334..5F..IV4200610-201106

main46430-37720iXZU304,334..6FC..IV4200610-201106

main46430-37740iXZU368,378,388,568..CBU,IV3200610-200902

sub46430-37741

main46430-37741iXZU368,378,388,568..CBU,IV3200903-201106

main46430-37750iXZU378..IV4200610-200902

sub46430-37751

main46430-37751iXZU378..IV4200903-201106

main46430-37780iXZU304..IV7200610-201106

main46430-37860iXZU344..5F..(20T,30T);XZU30#,338,348,50#,538,548..(03S,06S,T2,T3,T4,T5)..5F..20T200610-201106

main46430-37870iXZU304,334..6FC..30T..DCRTJ200610-201106

main46430-37A30iXZU314,324,354,524,554..5F..4NO200610-200902

sub46430-37A31

main46430-37A31iXZU314,324,354,524,554..5F..4NO200903-201106

main46430-37B00iXZU304..6FC..20T..1NO200610-201106

main46430-37B10iXZU354,554..6FC200610-201106

main46430-37B30iXZU304..6FC..20T..4NO;XZU308,338,34#,50#,538,548..6FC200610-201106

main46430-37B40iTRU300,340,500200705-201106

main46430-37B50iBZU300,340..T3,T4200705-201106

main46430-37B60iBZU300..DM6200705-201106

main46430-37B90iXZU304..T5..20T;XZU308,338,34#..6F201003-201106

main46430-37C10iXZU304..T5..30T..DCRUE;XZU304,334..(DM3,DM6,T3,T4)..6F201003-201106

main46430-37C20iXZU314,324..30T..DCRUE201003-201106

46453ABRACKET, CABLE SUPPORT, NO.3

main46453-37190iXZU344..35T;XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,340,TRU300,340,500,XZU334,354..1NO200610

main46453-37220iXZU368,378,388,568..CBU,IV3200610

sub46453-37221

main46453-37230iXZU378..IV4200610

main46453-37260iXZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T200610

main46453-37270iXZU314,324,354,524,554..4NO200610

sub46453-37271

46459GUIDE, CABLE

main46459-37030iXZU30#,33#,34#,354,50#,538,548,554..6FC200610

8401

3382937210SUPPORT, TRANSMISSION CONTROL CABLE

main33829-37210

9011908190

main90119-08190

9046108225

main90461-08225

9155380814

main91553-80814

9165140814

main91651-40814

91651B0820

main91651-B0820

91651B0825

main91651-B0825

9415010801

main94150-10801

20 parts on this diagram · 7 diagrams in section
