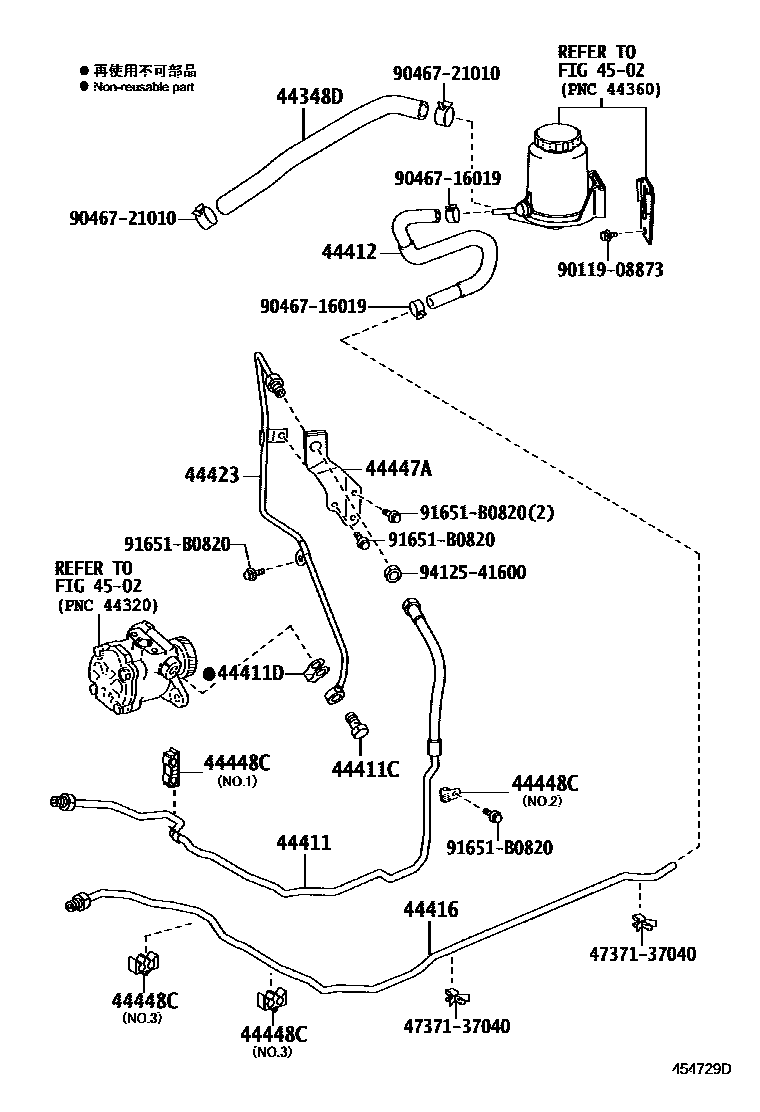

Toyota DYNA/TOYOACE — POWER STEERING TUBE
44348DHOSE, OIL RESERVOIR TO PUMP, NO.2
44411HOSE, PRESSURE FEED
44411CBOLT, UNION(FOR PRESSURE FEED HOSE)
44411DGASKET(FOR PRESSURE FEED HOSE)
44412HOSE, RETURN
44416TUBE, RETURN(FOR STEERING GEAR OUTLET)
44423TUBE, OIL PUMP TO GEAR BOX
44447ABRACKET, HOSE SUPPORT, NO.1
44448CCLAMP, PRESSURE FEED, NO.2
main44448-37060iBZU300,340,XZU304,314,324,334,344,354,504,524,554; XZU308,338,348,368,378,388,508,538,548,568200610
4502VANE PUMP & RESERVOIR (POWER STEERING)
4737137040BRACKET, CONNECTOR
main47371-37040
9011908873
main90119-08873
9046716019
main90467-16019
9046721010
main90467-21010
91651B0820
main91651-B0820
9412541600
main94125-41600
16 parts on this diagram · 7 diagrams in section
POWER STEERING TUBE for Toyota DYNA/TOYOACE
This section contains 28 genuine Toyota parts for the POWER STEERING TUBE system of the Toyota DYNA/TOYOACE. Key components include: GASKET, PRESSURE PORT, NO.1, HOSE, OIL RESERVOIR TO PUMP, NO.2, TUBE ASSY, PRESSURE FEED, HOSE, PRESSURE FEED, BOLT, UNION(FOR PRESSURE FEED HOSE).
