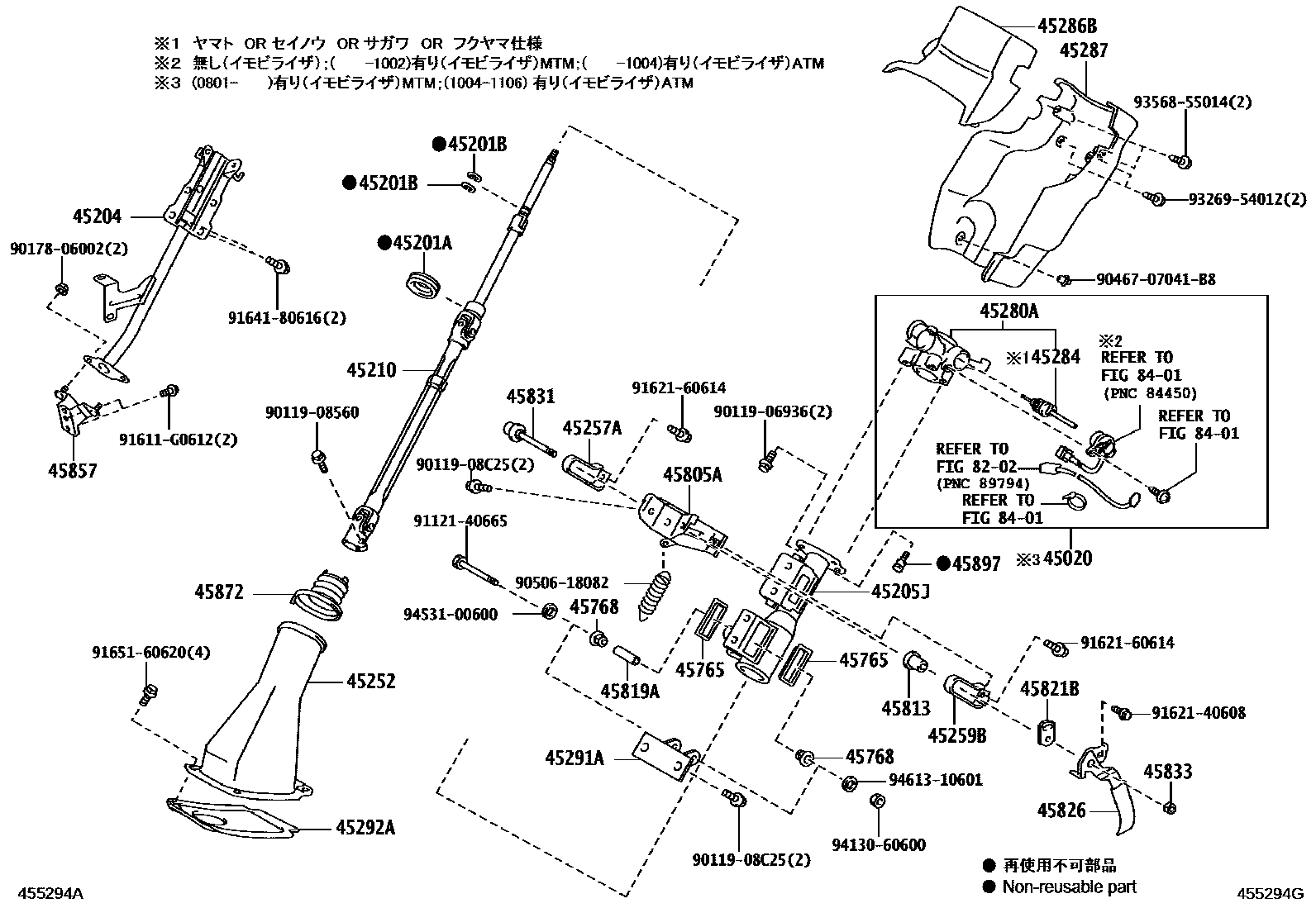

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1

45020BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH

main45020-37130iTRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..5F200801-201001

main45020-37131iTRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM201002-201106

main45020-37141iXZU30#,33#,34#,354,50#,538,548,554..6FC201004-201106

main45020-37151iXZU344..T4..MTM..30T..IV3;XZU344..T3..30T..DCRTK..IV3;XZU508,548..(T3,T4)..5F..IV3;XZU308,348,504..SCB..(T4,T5)..MTM..WT..(DCRTH,DCRTJ,DCRUD,DCRUE)..IV3201002-201106

main45020-37161iXZU508..T4..DCRTJ..IV3;XZU308,34#,504..SCB..T4..6FC..IV3201004-201106

45201ABEARING(FOR STEERING MAIN SHAFT)

main45274-37020iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17269×2iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-37130iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-37090iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106

45210SHAFT ASSY, STEERING MAIN

main45210-37260iBZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554200610-201106

main45210-37270iXZU378,388..SCB;XZU308,338,348,368,508,538,548,568200610-201106

main45210-37280iXZU378,388..DCB200610-201106

45252TUBE, STEERING COLUMN, LOWER

main45252-37030-B0iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-200909

MD.CHARCOAL,TRIM1#

main45252-37031-B0iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200910-201106

MD.CHARCOAL,TRIM1#

45257APLATE, STEERING COLUMN ENERGY ABSORBING

main45257-37010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106

45259BPLATE, STEERING COLUMN ENERGY ABSORBING, NO.2

main45259-37010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-37100iXZU504..ST;XZU508..(03S,06S,T2)..5F;TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568..5F200610-200801

main45280-37110iXZU504..WT..DCRTH..IV3200803

main45280-37120iTRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..5F200801-201001

main45280-37121iTRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM201002

main45280-37130iXZU30#,33#,34#,354,50#,538,548,554..6FC200801-201003

main45280-37131iXZU30#,33#,34#,354,50#,538,548,554..6FC201004

45284SHAFT, STEERING LOCK CAM

main45284-37010iXZU548..T3..IV3;XZU568..T4..IV3200908

45286BCOVER, STEERING COLUMN, UPR

main45286-37080-B0iXZU348,504..WT..DCRTH..IV3;XZU304,344,368,388..T4..5F..20T..DCRTJ..IV3; XZU50#..T4..DCRUD..IV3200803-200909

main45286-37081-B0iBZU300,340;XZU348,504..WT..DCRTH..IV3;XZU304,344,368,388,568..T4..MTM..20T..(DCRTJ,DCRUE)..IV3; XZU50#..T4..DCRUD..IV3200910-201106

main45286-37120-B0iTRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200801-201106

45287COVER, STEERING COLUMN, LWR

main45287-37080-B0iXZU504..ST;XZU50#,538,548,554..6FC;XZU508..(03S,06S,T2)..5F;TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,568200610-200801

MD.CHARCOAL,TRIM1#

main45287-37081-B0iBZU300,340;XZU348,504..WT..DCRTH..IV3;XZU304,344,368,388,568..T4..MTM..20T..(DCRTJ,DCRUE)..IV3; XZU50#..T4..DCRUD..IV3200910-201106

main45287-37110-B0iTRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200801-201106

45291ASUPPORT, STEERING COLUMN TUBE

main45803-37010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

45292ACOVER, MAIN SHAFT LOWER DUST

main45292-37030iXZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568200610

main45292-37040iXZU378,388..DCB200610

45765GUIDE, TELESCOPIC STEERING

main45765-37010×2iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

45768BUSH, TELESCOPIC STEERING

main45768-37010×2iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

45805ASUPPORT SUB-ASSY, TILT STEERING

main45805-37010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

45813COLLAR, TILT STEERING SUPPORT, NO.1

main45813-37010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

45819ACOLLAR(FOR TILT LEVER RETAINER)

main90387-06037iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

45821BREINFORCE, TILT STEERING SUPPORT, NO.1

main45821-12010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

45826LEVER, STEERING TILT

main45826-37010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

45831BOLT, TILT LEVER LOCK, NO.1

main45831-37010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

45833NUT, TILT STEERING ADJUSTING, NO.1

main45833-37010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

45857BRACKET, TILT STEERING COLUMN TUBE, NO.1

main45857-37020iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

45872COVER, STEERING COLUMN TUBE

main45872-37010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106

45897BOLT, STEERING LOCK SET

main45897-25010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906936

main90119-06936

9011908560

main90119-08560

9011908C25

main90119-08C25

9017806002

main90178-06002

9046707041B8

main90467-07041B8

9050618082

main90506-18082

9112140665

main91121-40665

91611G0612

main91611-G0612

9162140608

main91621-40608

9162160614

main91621-60614

9164180616

main91641-80616

9165160620

main91651-60620

9326954012

main93269-54012

9356855014

main93568-55014

9413060600

main94130-60600

9453100600

main94531-00600

9461310601

main94613-10601

46 parts on this diagram · 4 diagrams in section
