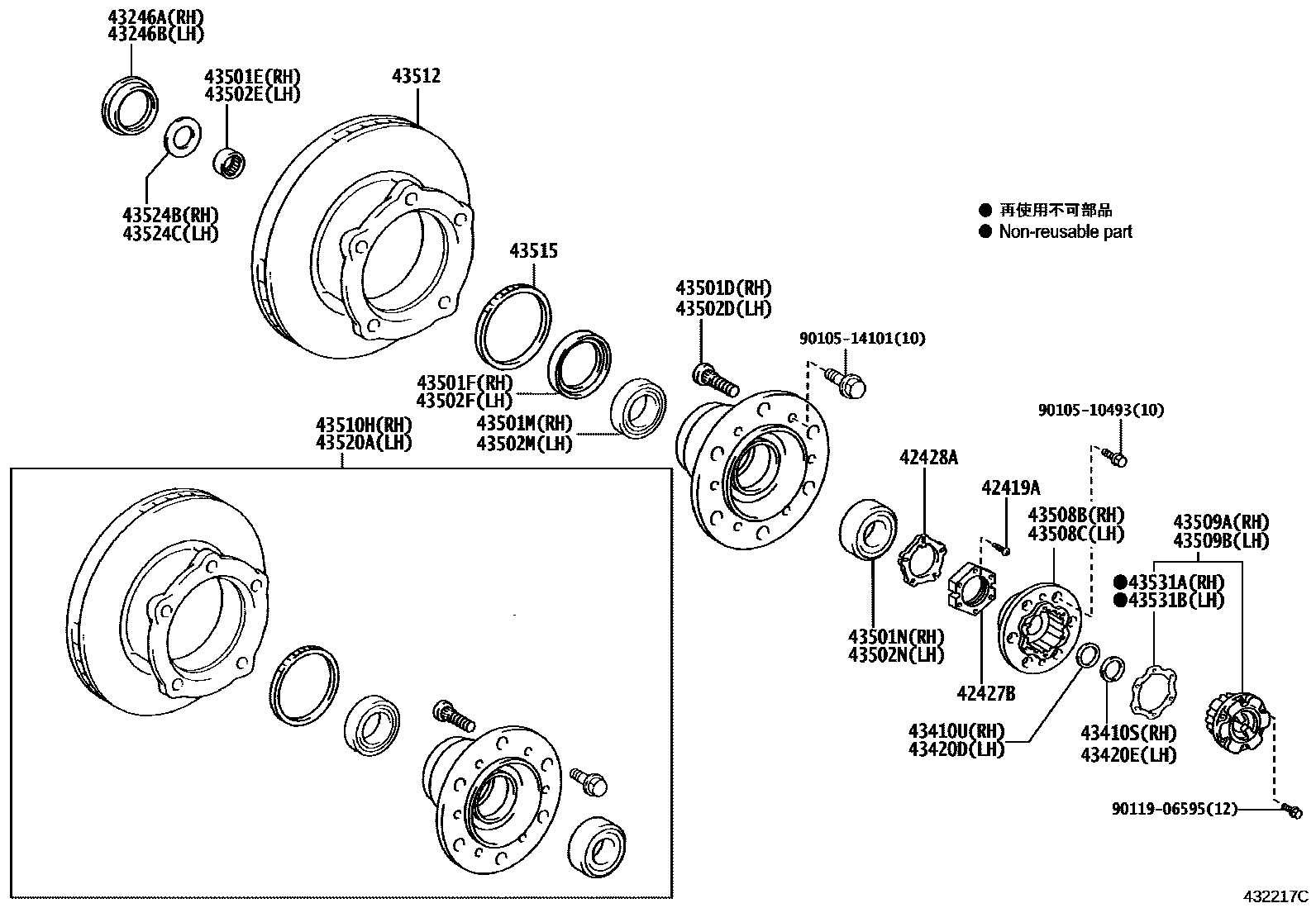

FRONT AXLE HUB

0001 1 0002 1

42419ASCREW, FRONT AXLE BEARING LOCK NUT

main42419-36010iXZU368,378,388,568200610-201106

42427BNUT, FRONT AXLE BEARING LOCK

main42427-36040iXZU368,378,388,568200610-201106

42428APLATE, FRONT AXLE LOCK NUT

main42428-36031iXZU368,378,388,568200610-201106

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43247-37010iXZU368,378,388,568200610-201106

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43247-37010iXZU368,378,388,568200610-201106

43410SRING, SNAP (FOR FRONT DRIVE SHAFT RH)

main90035-20025iXZU368,378,388,568200610-201106

43410USHIM (FOR FRONT DRIVE SHAFT SNAP RING RH)

main90035-64035iXZU368,378,388,568200610-201106

main90035-64036iXZU368,378,388,568200610-201106

main90035-64037iXZU368,378,388,568200610-201106

main90035-64038iXZU368,378,388,568200610-201106

43420DSHIM (FOR FRONT DRIVE SHAFT SNAP RING LH)

main90035-64035iXZU368,378,388,568200610-201106

main90035-64036iXZU368,378,388,568200610-201106

main90035-64037iXZU368,378,388,568200610-201106

main90035-64038iXZU368,378,388,568200610-201106

43420ERING, SNAP (FOR FRONT DRIVE SHAFT LH)

main90035-20025iXZU368,378,388,568200610-201106

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02071iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106

43501EBEARING (FOR FRONT AXLE HUB RH)

main90033-64017iXZU368,378,388,568200610-201106

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90311-68003iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,50#,524,538,548,554200610-201106

main90311-77001iXZU368,378,388,568200610-201106

43501MBEARING (FOR FRONT AXLE HUB INNER RH)

main90366-50069iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,50#,524,538,548,554200610-201106

main90366-60015iXZU368,378,388,568200610-201106

43501NBEARING (FOR FRONT AXLE HUB OUTER RH)

main90366-35105iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,50#,524,538,548,554200610-201106

main90366-55042iXZU368,378,388,568200610-201106

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02072iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201106

43502EBEARING (FOR FRONT AXLE HUB LH)

main90033-64017iXZU368,378,388,568200610-201106

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90311-68003iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,50#,524,538,548,554200610-201106

main90311-77001iXZU368,378,388,568200610-201106

43502MBEARING (FOR FRONT AXLE HUB INNER LH)

main90366-50069iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,50#,524,538,548,554200610-201106

main90366-60015iXZU368,378,388,568200610-201106

43502NBEARING (FOR FRONT AXLE HUB OUTER LH)

main90366-35105iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,50#,524,538,548,554200610-201106

main90366-55042iXZU368,378,388,568200610-201106

43508BBODY SUB-ASSY, FREE WHEEL HUB, RH

main43508-37020iXZU368,378,388,568200610-201106

43508CBODY SUB-ASSY, FREE WHEEL HUB, LH

main43508-37020iXZU368,378,388,568200610-201106

43509ACOVER SUB-ASSY, FREE WHEEL HUB, RH

main43509-39015iXZU368,378,388,568200610-201106

43509BCOVER SUB-ASSY, FREE WHEEL HUB, LH

main43509-39015iXZU368,378,388,568200610-201106

43510HHUB & DISC(DRUM) ASSY, FRONT AXLE, RH

main43510-39205iXZU304..T4..30T;BZU300,XZU344..(DM6,T3)..20T;BZU300,340,TRU300,XZU314,334,344..30T;XZU30#,324,338,348,504..DM3,DM6,DM7,T2,T3,T5200610-201106

sub43510-39207

sub43514-37060

main43510-39215iXZU308,338,348..T4;BZU300,340,TRU300,340,500,XZU304,344,354..(DM5,T2,T4)..20T200610-201106

sub43510-39216

sub43514-37060

main43510-39225iXZU50#,524,538,548,554..WT200610-201106

sub43510-39227

sub43514-37060

main43510-39235iXZU334,344,354..35T,40T200610-201106

sub43510-39236

sub43514-37060

main43510-39245iXZU368,378,388,568200610-201106

43512DISC, FRONT

main43512-37080iXZU308,338,348..T4;BZU300,340,TRU300,340,500,XZU304,344,354..(DM5,T2,T4)..20T200610-201106

main43512-37090iXZU304..T4..30T;XZU368,378,388,568;BZU300,XZU344..(DM6,T3)..20T;BZU300,340,TRU300,XZU314,334,344..30T;XZU30#,324,338,348,504..DM3,DM6,DM7,T2,T3,T5200610-201106

sub43512-37091

main43512-37140iXZU334,344,354..35T,40T200610-201106

main43512-37150iXZU50#,524,538,548,554..WT200610-201106

43515ROTOR, SKID CONTROL, FRONT

main43515-37010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,50#,524,538,548,554200610-201106

main43515-37040iXZU368,378,388,568200610-201106

43520AHUB & DISC(DRUM) ASSY, FRONT AXLE, LH

main43520-39185iXZU304..T4..30T;BZU300,XZU344..(DM6,T3)..20T;BZU300,340,TRU300,XZU314,334,344..30T;XZU30#,324,338,348,504..DM3,DM6,DM7,T2,T3,T5200610-201106

sub43520-39186

sub43514-37060

main43520-39195iXZU308,338,348..T4;BZU300,340,TRU300,340,500,XZU304,344,354..(DM5,T2,T4)..20T200610-201106

sub43520-39196

sub43514-37060

main43520-39205iXZU50#,524,538,548,554..WT200610-201106

sub43520-39206

sub43514-37060

main43520-39215iXZU334,344,354..35T,40T200610-201106

sub43520-39216

sub43514-37060

main43520-39225iXZU368,378,388,568200610-201106

43524BSPACER, FRONT WHEEL INNER BEARING, RH

main43524-37010iXZU368,378,388,568200610-201106

43524CSPACER, FRONT WHEEL INNER BEARING, LH

main43524-37010iXZU368,378,388,568200610-201106

43531AGASKET, FREE WHEEL HUB, RH

main43531-37010iXZU368,378,388,568200610-201106

43531BGASKET, FREE WHEEL HUB, LH

main43531-37010iXZU368,378,388,568200610-201106

9010510493

main90105-10493

9010514101

main90105-14101

9011906595

main90119-06595

34 parts on this diagram · 2 diagrams in section
