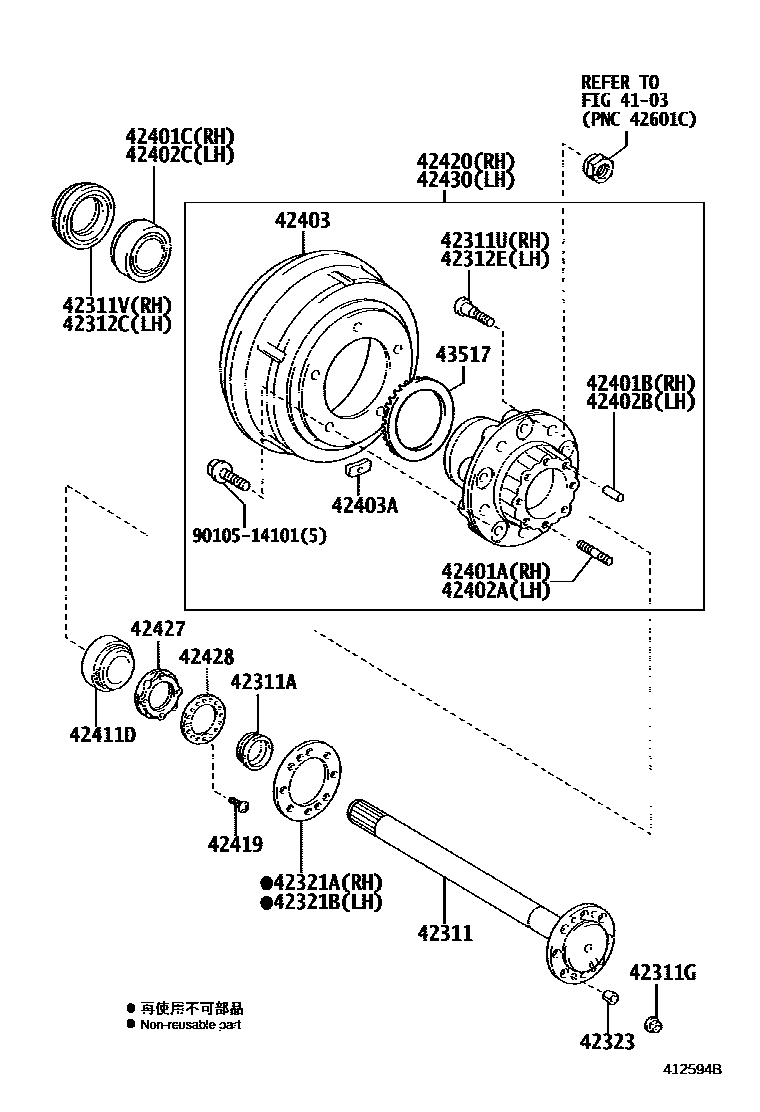

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

42311SHAFT, REAR AXLE

main42311-37060×2iXZU338..DCRTH;XZU508..T5..(DCRTH,DCRTJ);XZU524,538,554..DCRTH,DCRTJ200610-201106

main42311-37070×2iXZU338..T2;BZU300,TRU300,500,XZU30#,50#..(03S,06S,DM5,T2,T4)..20T..(DCRTH,DCRTJ,EFI,LPG)200610-201106

main42311-37080×2iXZU348..T2;XZU348..DCRTH;TRU340,XZU548..DCRTJ,EFI200610-201106

main42311-37090×2iXZU504..ST200610-201106

main42311-37100×2iBZU300,XZU30#..DM3,DM6,T5;BZU300,TRU300,XZU304..T4..30T;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,554..5F..(DCRUD,DCRUE);XZU314,324,338,354,368,504,568..(DM5,DM7,T4)..(DCRTJ,DCRTK,DCRUD,DCRUE)200610-201106

main42311-37110×2iXZU548..DCRUE;BZU300,TRU300,XZU304..T3;BZU340,XZU334,34#,378,388..(T3,T4)..(20T,30T)..(DCRTJ,DCRTK,DCRTM,DCRUE,LPG)200610-201106

main42311-37120×2iXZU334,344,354..35T,40T200610-201106

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90033-11032×2iXZU334,344,354..35T,40T200610

main90310-38033×2iXZU338,348..T2;XZU338,348..DCRTH;XZU30#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU300,TRU300,340,500,XZU50#,524,538,548,554..(03S,06S,DM5,DM7,T2,T3,T4,T5)..20T..(DCRTH,DCRTJ,EFI,LPG)200610

main90310-40001×2iBZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(20T,30T)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(20T,30T)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG)200610

42311GNUT(FOR REAR AXLE SHAFT)

main90179-10067×12iBZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(20T,30T)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(20T,30T)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG); XZU338,348..T2;XZU338,348..DCRTH;XZU30#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU300,TRU300,340,500,XZU50#,524,538,548,554..(03S,06S,DM5,DM7,T2,T3,T4,T5)..20T..(DCRTH,DCRTJ,EFI,LPG)200610-201106

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02071×5iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T; XZU334,344,354..35T,40T200610

42311VSEAL, OIL(FOR REAR AXLE SHAFT RH)

main90033-11031iXZU334,344,354..35T,40T200610

main90311-78001iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T200610

42312CSEAL, OIL(FOR REAR AXLE SHAFT LH)

main90033-11031iXZU334,344,354..35T,40T200610

main90311-78001iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T200610

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02072×5iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T; XZU334,344,354..35T,40T200610

42321AGASKET, REAR AXLE SHAFT, RH

main42321-37020iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T200610-201106

42321BGASKET, REAR AXLE SHAFT, LH

main42321-37020iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T200610-201106

42323WASHER, CONE (FOR REAR AXLE SHAFT)

main42323-36010×12iBZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(20T,30T)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(20T,30T)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG); XZU338,348..T2;XZU338,348..DCRTH;XZU30#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU300,TRU300,340,500,XZU50#,524,538,548,554..(03S,06S,DM5,DM7,T2,T3,T4,T5)..20T..(DCRTH,DCRTJ,EFI,LPG)200610-201106

42401ABOLT, STUD (FOR REAR AXLE HUB RH)

main90031-01163×10iXZU334,344,354..35T,40T200610-201106

main90116-10191×6iBZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(20T,30T)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(20T,30T)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG); XZU338,348..T2;XZU338,348..DCRTH;XZU30#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU300,TRU300,340,500,XZU50#,524,538,548,554..(03S,06S,DM5,DM7,T2,T3,T4,T5)..20T..(DCRTH,DCRTJ,EFI,LPG)200610-201106

42401BPIN, STRAIGHT (FOR REAR AXLE HUB RH)

main90250-10055×2iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T200610-201106

42401CBEARING (FOR REAR AXLE HUB INNER RH)

main90033-66030iXZU344,354..35T,40T200610

main90366-60012iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T200610

42402ABOLT, STUD (FOR REAR AXLE HUB LH)

main90031-01163×10iXZU334,344,354..35T,40T200610-201106

main90116-10191×6iBZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(20T,30T)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(20T,30T)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG); XZU338,348..T2;XZU338,348..DCRTH;XZU30#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU300,TRU300,340,500,XZU50#,524,538,548,554..(03S,06S,DM5,DM7,T2,T3,T4,T5)..20T..(DCRTH,DCRTJ,EFI,LPG)200610-201106

42402BPIN, STRAIGHT (FOR REAR AXLE HUB LH)

main90250-10055×2iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T200610-201106

42402CBEARING (FOR REAR AXLE HUB INNER LH)

main90033-66030iXZU334..40T; XZU344,354..35T,40T200610

main90366-60012iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T200610

42403DRUM SUB-ASSY, REAR BRAKE

main42431-37080iXZU504..ST200610

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01117iXZU504..ST200610

main90937-01118iXZU504..ST200610

main90937-01119iXZU504..ST200610

main90937-01120iXZU504..ST200610

main90937-01121iXZU504..ST200610

main90937-01122iXZU504..ST200610

42411DBEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING)

main90033-66031×2iXZU334,344,354..35T,40T200610

main90366-55054×2iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T200610

42419SCREW, REAR AXLE BEARING LOCK NUT

main90119-06199×6iXZU334,344,354..35T,40T200610

main93311-16012×4iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T200610

42420HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH

main42420-39095iXZU504..ST200610

main42430-39175iXZU334,344,354..35T,40T200610

main42430-39335iXZU338,348..T2;XZU338,348..DCRTH;XZU30#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU300,TRU300,340,500,XZU50#,524,538,548,554..(03S,06S,DM5,DM7,T2,T3,T4,T5)..20T..WT..(DCRTH,DCRTJ,EFI,LPG)200610

main42430-39355iBZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(20T,30T)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(20T,30T)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG)200610

42427NUT, REAR AXLE BEARING LOCK

main42427-37020×2iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T200610

main42427-37030×2iXZU334,344,354..35T,40T200610

42428PLATE, REAR AXLE LOCK NUT

main42428-36020×2iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..20T,30T200610

main42428-37010×2iXZU334,344,354..35T,40T200610

main42428-37030×2iXZU334,344,354..35T,40T200610

42430HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH

main42430-39095iXZU504..ST200610

main42430-39185iXZU334,344,354..35T,40T200610

main42430-39345iXZU338,348..T2;XZU338,348..DCRTH;XZU30#..(T2,T4)..20T..(DCRTH,DCRTJ);BZU300,TRU300,340,500,XZU50#,524,538,548,554..(03S,06S,DM5,DM7,T2,T3,T4,T5)..20T..WT..(DCRTH,DCRTJ,EFI,LPG)200610

main42430-39365iBZU300..30T;XZU304..T4..30T;XZU304..DM3,DM6,T3,T5;BZU300,XZU308..DM6,T5;XZU308..T4..(DCRTK,DCRTM,DCRUE);XZU304,508,524,538,548,554..5F..(DCRUD,DCRUE);XZU314,334,348,354,368,378,388,568..(DM5,T3,T4)..(20T,30T)..(DCRTJ,DCRTK,DCRTM,DCRUE);BZU340,TRU300,XZU324,338,344,504..SCB..(DM7,T3,T4)..(20T,30T)..(DCRTJ,DCRTK,DCRUD,DCRUE,EFI,LPG)200610

43517ROTOR, SKID CONTROL, REAR

main43517-37010×2iXZU504..ST200610-201106

main43517-37030×2iXZU334,344,354..35T,40T200610-201106

main43517-37040×2iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(20T,30T)..WT200610-201106

9010514101

main90105-14101
