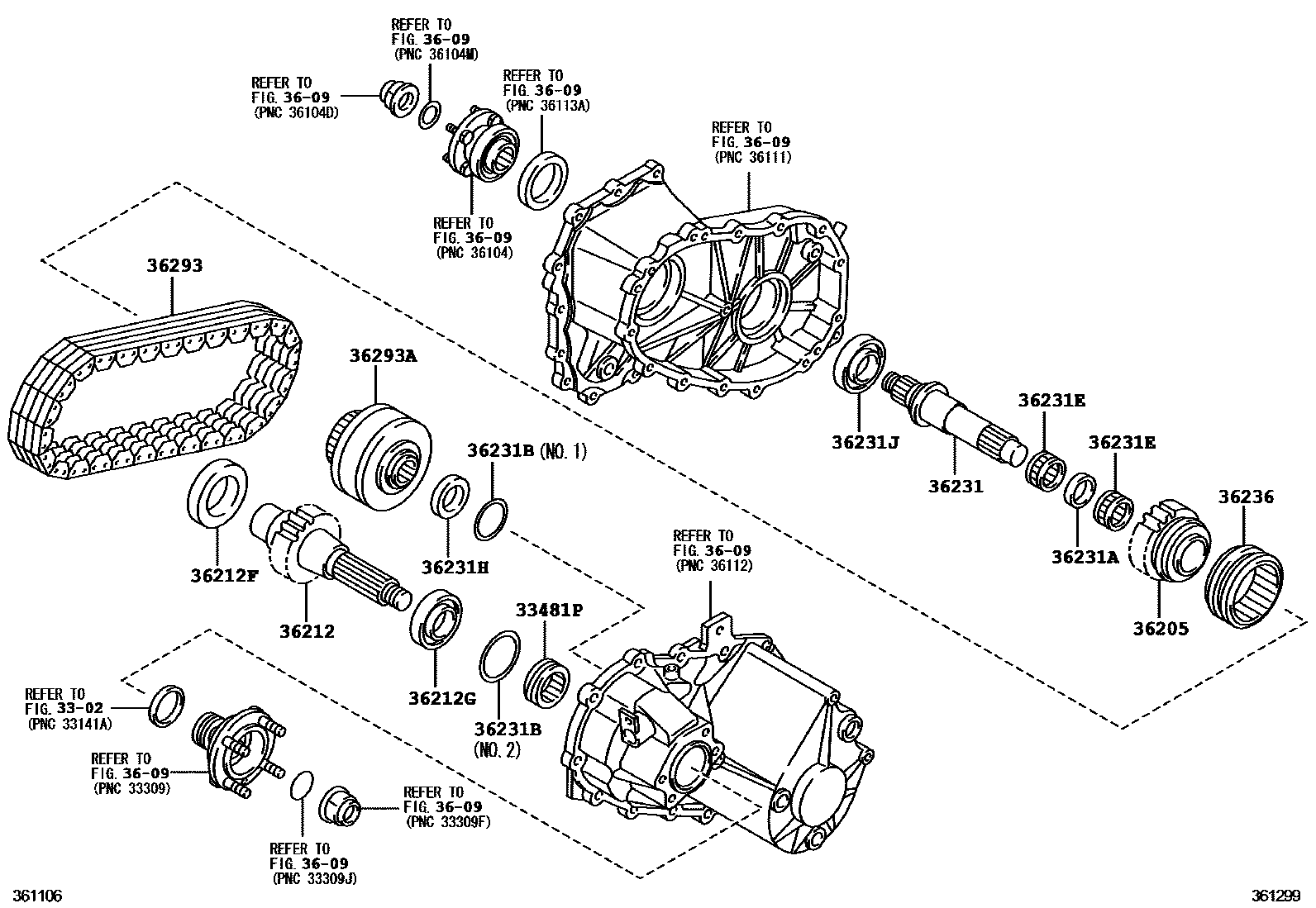

TRANSFER GEAR

3302CLUTCH HOUSING & TRANSMISSION CASE (MTM)

→ Go to FIG 33-02

33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)

mainSU00200188iXZU368,378,388,568200610

3609TRANSFER CASE & EXTENSION HOUSING

→ Go to FIG 36-09

36205SPROCKET SUB-ASSY, TRANSFER DRIVE

mainSU00200464iXZU368,378,388,568200610

36212GEAR, TRANSFER INPUT

mainSU00200462iXZU368,378,388,568200610

36212FBEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT FRONT)

mainSU00200468iXZU368,378,388,568200610

36212GBEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT REAR)

mainSU00200469iXZU368,378,388,568200610

36231SHAFT, TRANSFER OUTPUT, REAR

mainSU00200463iXZU368,378,388,568200610

36231ASPACER (FOR TRANSFER OUTPUT SHAFT)

mainSU00200479iXZU368,378,388,568200610

36231BSHIM (FOR TRANSFER OUTPUT SHAFT)

mainSU00200480iXZU368,378,388,568200610

mainSU00200481iXZU368,378,388,568200610

mainSU00200482iXZU368,378,388,568200610

mainSU00200483iXZU368,378,388,568200610

mainSU00200484iXZU368,378,388,568200610

mainSU00200485iXZU368,378,388,568200610

mainSU00200486iXZU368,378,388,568200610

mainSU00200487iXZU368,378,388,568200610

mainSU00200488iXZU368,378,388,568200610

mainSU00200489iXZU368,378,388,568200610

mainSU00200490iXZU368,378,388,568200610

mainSU00200491iXZU368,378,388,568200610

mainSU00200492iXZU368,378,388,568200610

mainSU00200493iXZU368,378,388,568200610

mainSU00200494iXZU368,378,388,568200610

mainSU00200495iXZU368,378,388,568200610

mainSU00200496iXZU368,378,388,568200610

mainSU00200497iXZU368,378,388,568200610

mainSU00200498iXZU368,378,388,568200610

mainSU00200499iXZU368,378,388,568200610

mainSU00200500iXZU368,378,388,568200610

mainSU00200501iXZU368,378,388,568200610

mainSU00200502iXZU368,378,388,568200610

mainSU00200503iXZU368,378,388,568200610

mainSU00200504iXZU368,378,388,568200610

mainSU00200505iXZU368,378,388,568200610

mainSU00200506iXZU368,378,388,568200610

mainSU00200507iXZU368,378,388,568200610

mainSU00200508iXZU368,378,388,568200610

mainSU00200509iXZU368,378,388,568200610

mainSU00200510iXZU368,378,388,568200610

mainSU00200511iXZU368,378,388,568200610

36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)

mainSU00200472×2iXZU368,378,388,568200610

36231HBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT FRONT)

mainSU00200471iXZU368,378,388,568200610

36231JBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)

mainSU00200470iXZU368,378,388,568200610

36236SLEEVE, FRONT DRIVE CLUTCH

mainSU00200461iXZU368,378,388,568200610

36293CHAIN, TRANSFER FRONT DRIVE

mainSU00200466iXZU368,378,388,568200610

36293AVISCOUS COUPLING, TRANSFER

mainSU00200465iXZU368,378,388,568200610

16 parts on this diagram · 1 diagram in section
