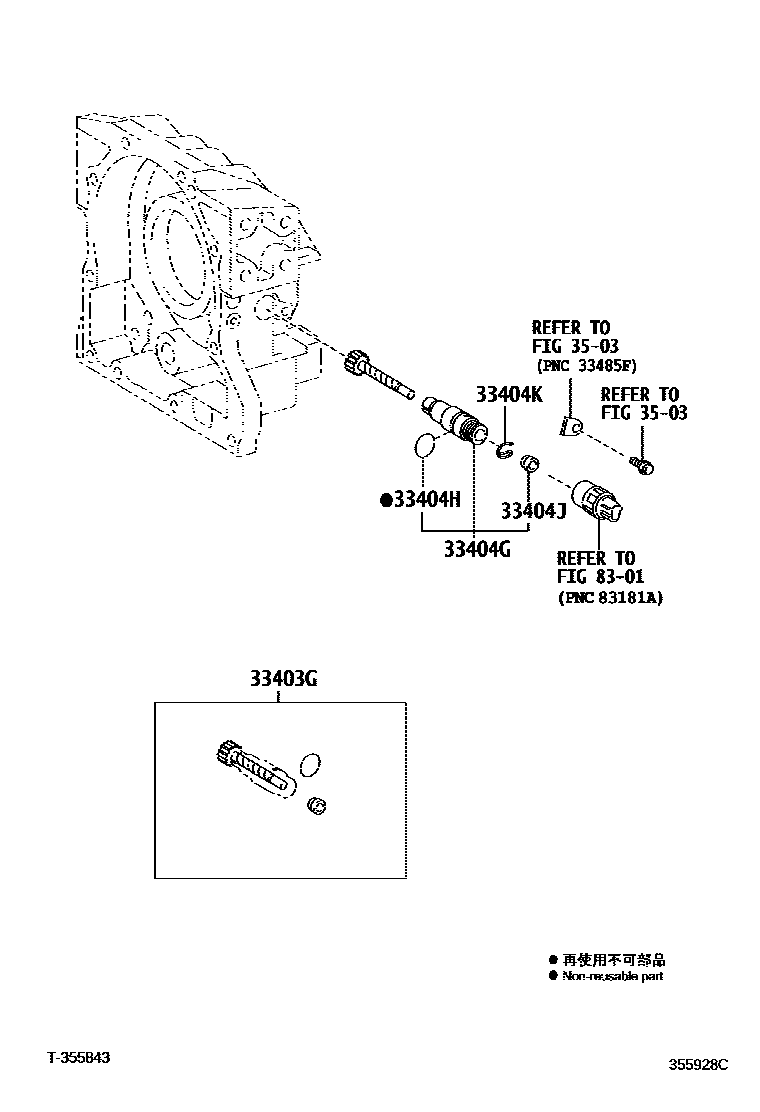

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33482-80003iXZU508..6FC..DCRTH;XZU508..(T4,T5)..6FC..DCRTJ;XZU308,344..(T3,T4,T5)..6FC..20T;XZU304,33#,348,354,504,538,548,554..6FC200610-201106

main33482-80004iXZU344..6FC..30T;XZU304,334..6FC..IV4200610-201106

main33482-80013iXZU308..T2..6FC..CBU;XZU30#..SCB..(T2,T4)..6FC..20T..IV3;XZU508,554..(03S,DM5,T2)..6FC..DCRTJ200610-201106

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-37020iXZU30#,33#,34#,354,50#,538,548,554..6FC200610-201106

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-21014iXZU30#,33#,34#,354,50#,538,548,554..6FC200610-201106

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-10001iXZU30#,33#,34#,354,50#,538,548,554..6FC200610-201106

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iXZU30#,33#,34#,354,50#,538,548,554..6FC200610-201106

3503TRANSMISSION CASE & OIL PAN (ATM)

→ Go to FIG 35-03

8301METER

→ Go to FIG 83-01

7 parts on this diagram · 1 diagram in section
