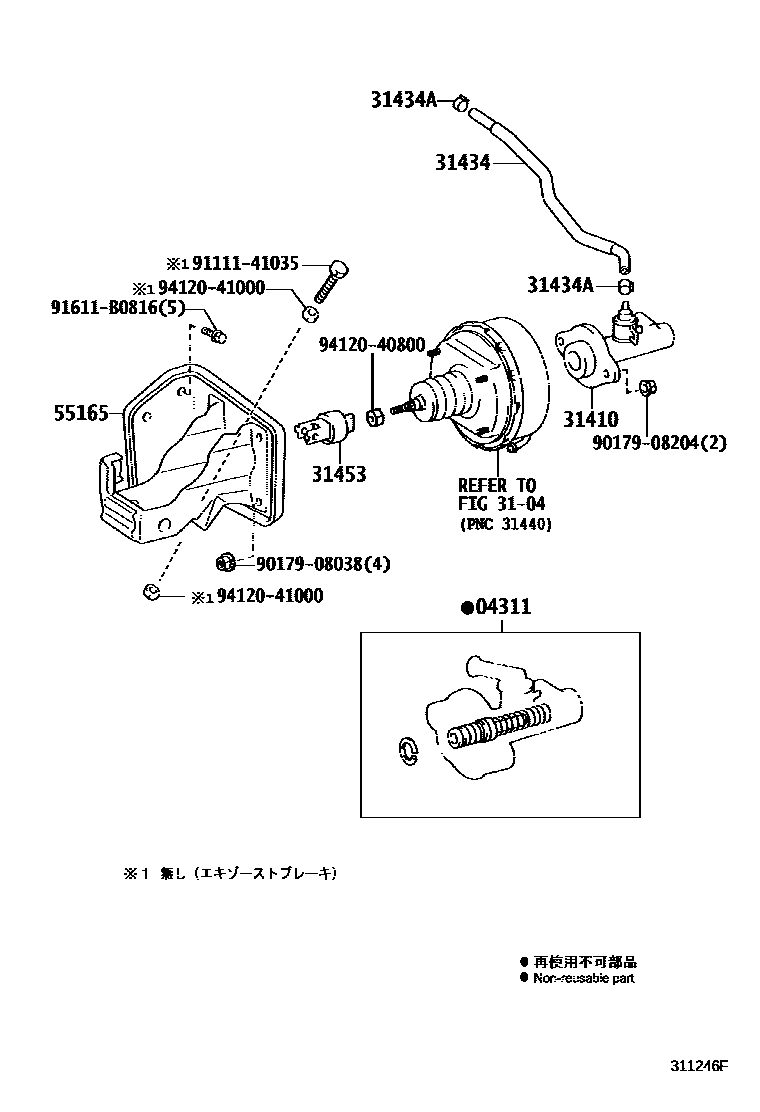

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-37030iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM200610

3104

31410CYLINDER ASSY, CLUTCH MASTER

main31401-37011iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM200610

31434TUBE, CLUTCH RESERVOIR

main31434-37090iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM200610-201106

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96133-41300×2iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM200610-201106

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28020iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM200610

55165SUPPORT, CLUTCH MASTER CYLINDER

main55105-37051iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..MTM200610

9017908038

main90179-08038

9017908204

main90179-08204

9111141035

main91111-41035

91611B0816

main91611-B0816

9412040800

main94120-40800

9412041000

main94120-41000

13 parts on this diagram · 1 diagram in section
