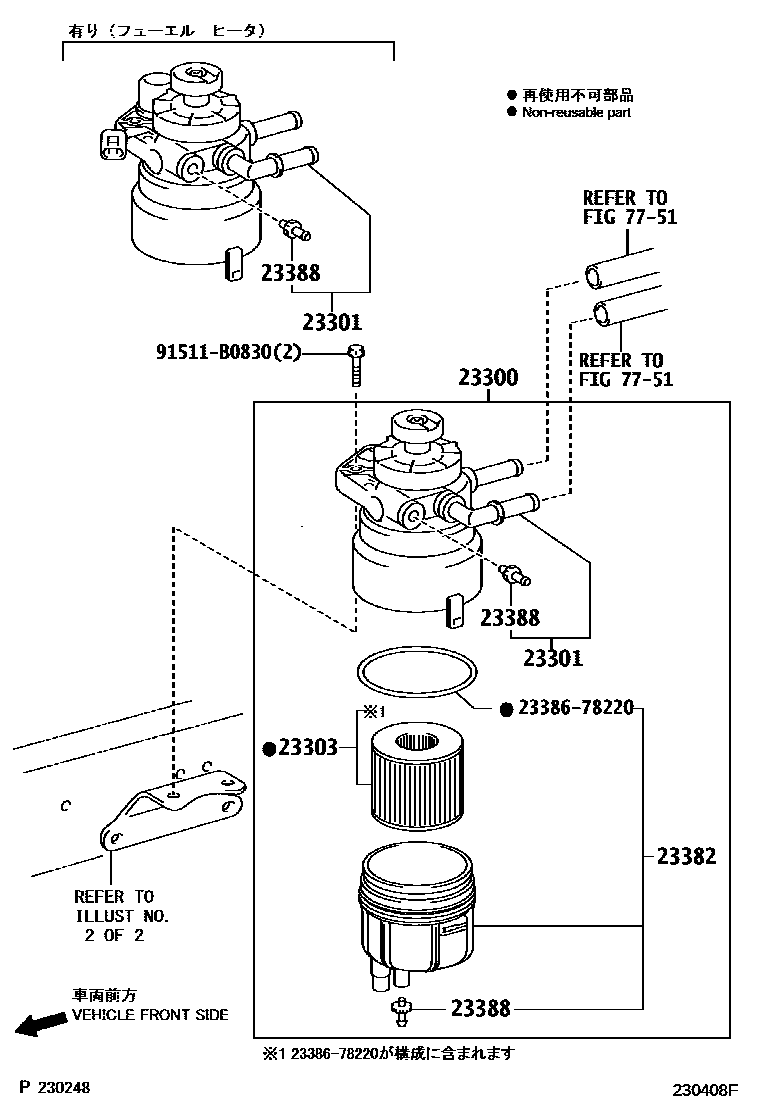

FUEL FILTER

0001 1 0002 1 0003 1 0005 1

23300FILTER ASSY, FUEL

main23300-78221iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7)200610-200906

main23300-78222iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7)200907

main23300-78231iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7)200610-200906

main23300-78232iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7)200907

main23300-78251iN04C..XZU508..VAN;N04C..XZU304,334,378..IV4200610-200906

main23300-78252iN04C..XZU508..VAN;N04C..XZU304,334,378..IV4200907

main23300-78261iN04C..XZU508..VAN;N04C..XZU304,334,378..IV4200610-200906

main23300-78262iN04C..XZU508..VAN;N04C..XZU304,334,378..IV4200907

23301BODY SUB-ASSY, FUEL FILTER

main23301-78221iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7)200610-200907

main23301-78222iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7)200907

main23301-78231iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7)200610-200907

main23301-78232iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7)200907

main23301-78251iN04C..XZU508..VAN;N04C..XZU304,334,378..IV4200610-200907

main23301-78252iN04C..XZU508..VAN;N04C..XZU304,334,378..IV4200907

main23301-78261iN04C..XZU508..VAN;N04C..XZU304,334,378..IV4200610-200907

main23301-78262iN04C..XZU508..VAN;N04C..XZU304,334,378..IV4200907

23303ELEMENT SUB-ASSY, FUEL FILTER

main23390-78221iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

23382CASE, FUEL FILTER

main23382-78221iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-200907

main23382-78222iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200907

23388PLUG, FUEL FILTER DRAIN

main23388-78220×2iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-200907

main23388-78222×2iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200907

7751FUEL TANK & TUBE

→ Go to FIG 77-51

2338678220GASKET, FUEL FILTER CASE

main23386-78220

91511B0830

main91511-B0830

8 parts on this diagram · 4 diagrams in section
