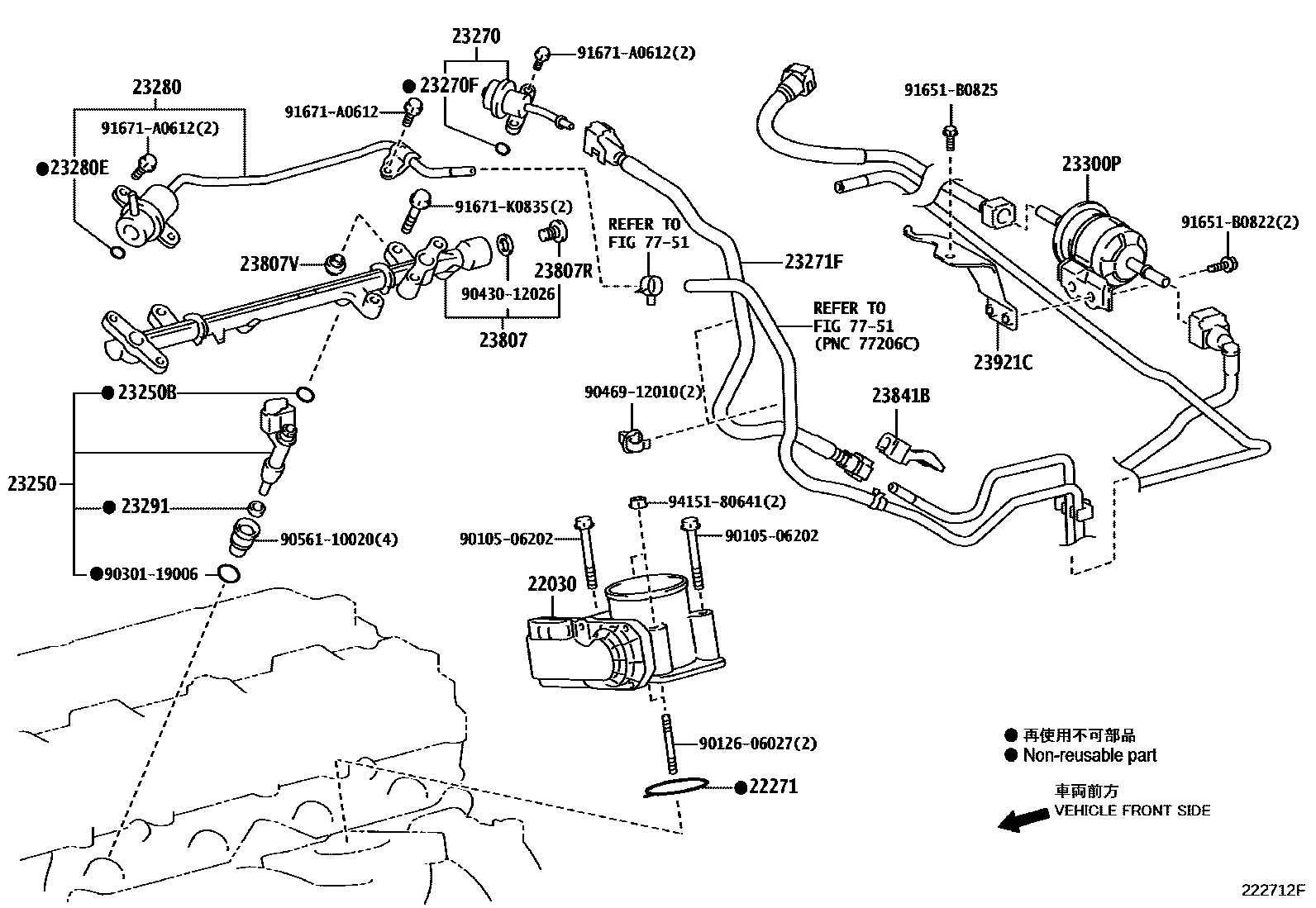

FUEL INJECTION SYSTEM

0001 1 0002 1

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-75020i2TRFE..TRU300,340,500200705

22271GASKET, THROTTLE BODY

main22271-0C021i2TRFE..TRU300,340,500200705-201106

23250INJECTOR ASSY, FUEL

main23209-79155×4i2TRFE..TRU300,340,500200705-201106

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i2TRFE..TRU300,340,500200705

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-75010i2TRFE..TRU300,340,500200705

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i2TRFE..TRU300,340,500200705-201106

23271FHOSE, FUEL

main23271-78410i2TRFE..TRU300,340,500200705

23280REGULATOR ASSY, FUEL PRESSURE

main23280-75040i2TRFE..TRU300,340,500200705

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07037i2TRFE..TRU300,340,500200705-201106

23291INSULATOR, INJECTOR VIBRATION

main23291-73010×4i2TRFE..TRU300,340,500200705

23300PFILTER, FUEL(FOR EFI)

main23300-75130i2TRFE..TRU300,340,500200705

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-75050i2TRFE..TRU300,340,500200705

23807RPLUG, FUEL DELIVARY PIPE

main90341-12030i2TRFE..TRU300,340,500200705

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08036×2i2TRFE..TRU300,340,500200705

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i2TRFE..TRU300,340,500200705

23921CBRACKET, FUEL FILTER

main23921-78310i2TRFE..TRU300,340,500200705

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9010506202

main90105-06202

9012606027

main90126-06027

9030119006

main90301-19006

9043012026

main90430-12026

9046912010

main90469-12010

9056110020

main90561-10020

91651B0822

main91651-B0822

91651B0825

main91651-B0825

91671A0612

main91671-A0612

91671K0835

main91671-K0835

9415180641

main94151-80641

28 parts on this diagram · 2 diagrams in section
