STARTER

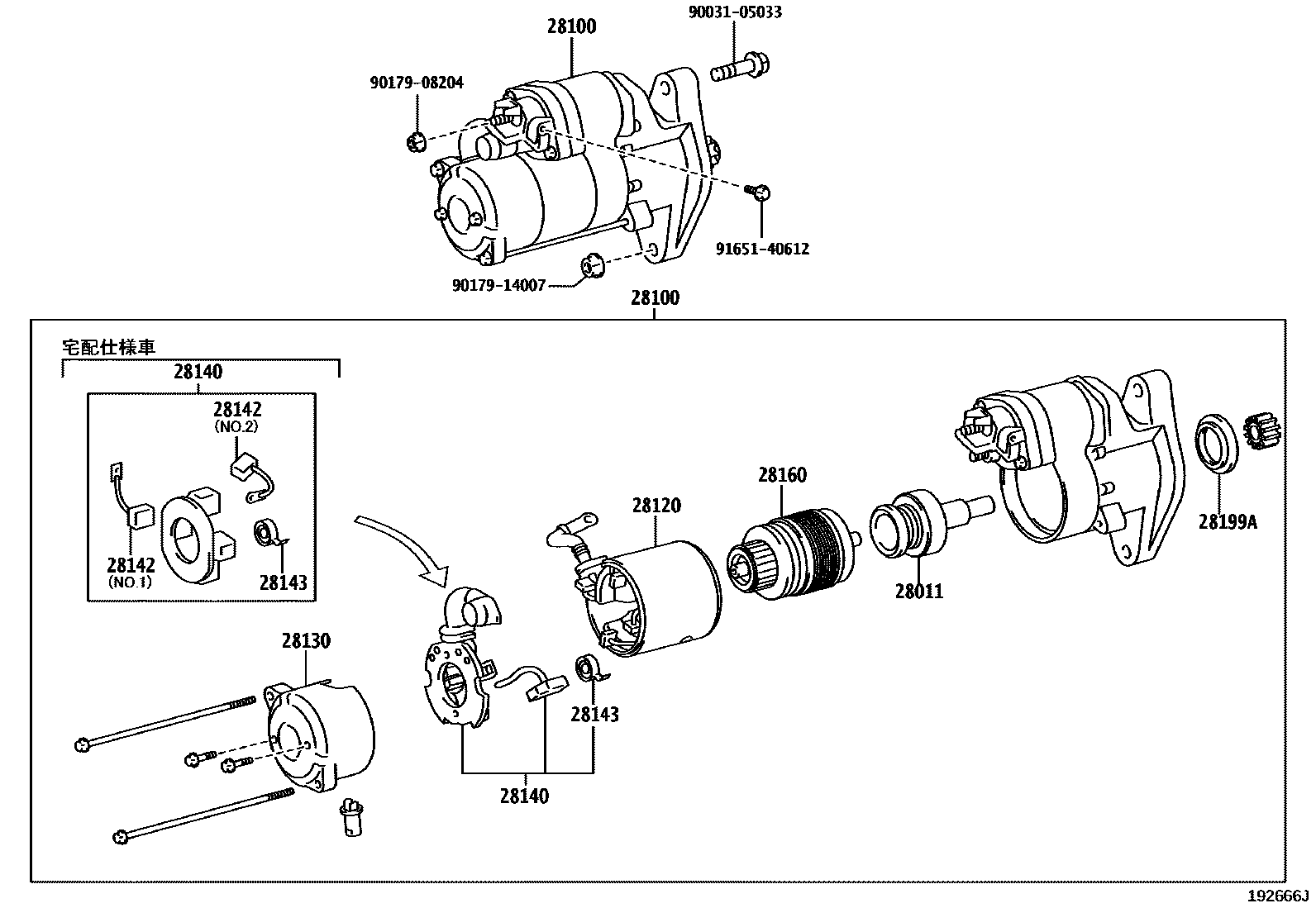

28011CLUTCH SUB-ASSY, STARTER
28100STARTER ASSY
main28100-78113iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV7200610
main28100-78124iN04C..XZU30#,354..IV6; N04C..XZU308..SCB..T4..6FC..IV3; N04C..XZU308..SCB..T4..6FC..IV3;N04C..XZU334,344..(35T,40T)..IV3;N04C..XZU304..30T..DCRUE..IV3..4NO;N04C..XZU368,378..(T3,T4)..DCRTK..IV3; N04C..XZU34#,50#..(T4,T5)..6FC..IV3;N04C..XZU348..SCB..T4..(DCRTH,DCRUE)..IV3;N04C..XZU344,508..T4..(DCRTK,DCRUD,DCRUE)..IV3;N04C..XZU308,548..SCB..T4..5F..(DCRTJ,DCRUE)..IV3;N04C..XZU344,548..T3..5F..(20T,30T)..(DCRTK,DCRUE)..IV3;N04C..XZU308,338..SCB..(T4,T5)..(6F,6FC)..(DCRTJ,DCRUE)..IV3;N04C..XZU304,368,388,504,568..T4..20T..(DCRTJ,DCRUD,DCRUE)..IV3200610
28120YOKE ASSY, STARTER
24V 5.0KW
main28120-78111iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV7200610-201106
main28120-78120iN04C..XZU30#,354..IV6;N04C..XZU548..T4..DCRUE..IV3;N04C..XZU308..SCB..T4..6FC..IV3;N04C..XZU308..T5..5F..DCRTJ..IV3;N04C..XZU50#..T4..5F..(DCRTH,DCRTJ)..IV3;N04C..XZU338,34#..SCB..T4..5F..DCRTJ..IV3; N04C..XZU334,344..(35T,40T)..IV3;N04C..XZU304..30T..DCRUE..IV3..4NO;N04C..XZU368,378..(T3,T4)..DCRTK..IV3; N04C..XZU34#,50#..(T4,T5)..6FC..IV3;N04C..XZU348..SCB..T4..(DCRTH,DCRUE)..IV3;N04C..XZU308..SCB..T4..5F..(DCRTJ,DCRUE)..IV3;N04C..XZU344,508..T4..(DCRTK,DCRUD,DCRUE)..IV3;N04C..XZU344,548..T3..5F..(20T,30T)..(DCRTK,DCRUE)..IV3;N04C..XZU308,338..SCB..(T4,T5)..(6F,6FC)..(DCRTJ,DCRUE)..IV3;N04C..XZU304,368,388,504,568..T4..20T..(DCRTJ,DCRUD,DCRUE)..IV3200610-201104
main28120-78121iN04C..XZU304..IV6;N04C..XZU344,508..T4..IV3;N04C..XZU508..T5..DCRTJ..IV3;N04C..XZU344,378..T3..DCRTK..IV3;N04C..XZU304..30T..DCRUE..IV3..4NO;N04C..XZU368,548..(T3,T4)..(DCRTK,DCRUE)..IV3;N04C..XZU304,33#,354,568..(T3,T4)..(20T,40T)..(DCRTJ,DCRTK,DCRUE)..(IV3,IV6);N04C..XZU308,348,368,388,504..SCB..(T4,T5)..20T..WT..(DCRTH,DCRTJ,DCRUD,DCRUE)..(IV3,IV6)201104-201106
28130FRAME ASSY, STARTER COMMUTATOR END
main28130-78110iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV7201104-201106
28140HOLDER ASSY, STARTER BRUSH
main28140-78110iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV7200610
main28140-78121iN04C..XZU30#,354..IV6; N04C..XZU308..SCB..T4..6FC..IV3; N04C..XZU308..SCB..T4..6FC..IV3;N04C..XZU334,344..(35T,40T)..IV3;N04C..XZU304..30T..DCRUE..IV3..4NO;N04C..XZU368,378..(T3,T4)..DCRTK..IV3; N04C..XZU548..T4..5F..DCRTJ..IV3;N04C..XZU34#,50#..(T4,T5)..6FC..IV3;N04C..XZU348..SCB..T4..(DCRTH,DCRUE)..IV3;N04C..XZU308..SCB..T4..5F..(DCRTJ,DCRUE)..IV3;N04C..XZU344,508..T4..(DCRTK,DCRUD,DCRUE)..IV3;N04C..XZU344,548..T3..5F..(20T,30T)..(DCRTK,DCRUE)..IV3;N04C..XZU308,338..SCB..(T4,T5)..(6F,6FC)..(DCRTJ,DCRUE)..IV3;N04C..XZU304,368,388,504,568..T4..20T..(DCRTJ,DCRUD,DCRUE)..IV3200610
28142BRUSH, STARTER
main28148-78120×2iN04C..XZU304..IV6;N04C..XZU344,508..T4..IV3;N04C..XZU508..T5..6FC..IV3;N04C..XZU344,378..T3..DCRTK..IV3;N04C..XZU304..30T..DCRUE..IV3..4NO;N04C..XZU368,548..(T3,T4)..(DCRTK,DCRUE)..IV3;N04C..XZU304,33#,354,568..(T3,T4)..(20T,40T)..(DCRTJ,DCRTK,DCRUE)..(IV3,IV6);N04C..XZU308,348,368,388,504..SCB..(T4,T5)..20T..WT..(DCRTH,DCRTJ,DCRUD,DCRUE)..(IV3,IV6)200610-201106
main28148-78130×2iN04C..XZU304..IV6;N04C..XZU344,508..T4..IV3;N04C..XZU508..T5..6FC..IV3;N04C..XZU344,378..T3..DCRTK..IV3;N04C..XZU304..30T..DCRUE..IV3..4NO;N04C..XZU368,548..(T3,T4)..(DCRTK,DCRUE)..IV3;N04C..XZU304,33#,354,568..(T3,T4)..(20T,40T)..(DCRTJ,DCRTK,DCRUE)..(IV3,IV6);N04C..XZU308,348,368,388,504..SCB..(T4,T5)..20T..WT..(DCRTH,DCRTJ,DCRUD,DCRUE)..(IV3,IV6)200610-201106
28143SPRING, STARTER BRUSH
28160ARMATURE ASSY, STARTER
28199APROTECTOR, DUST STARTER
9003105033
main90031-05033
9017908204
main90179-08204
9017914007
main90179-14007
9165140612
main91651-40612
13 parts on this diagram · 3 diagrams in section
