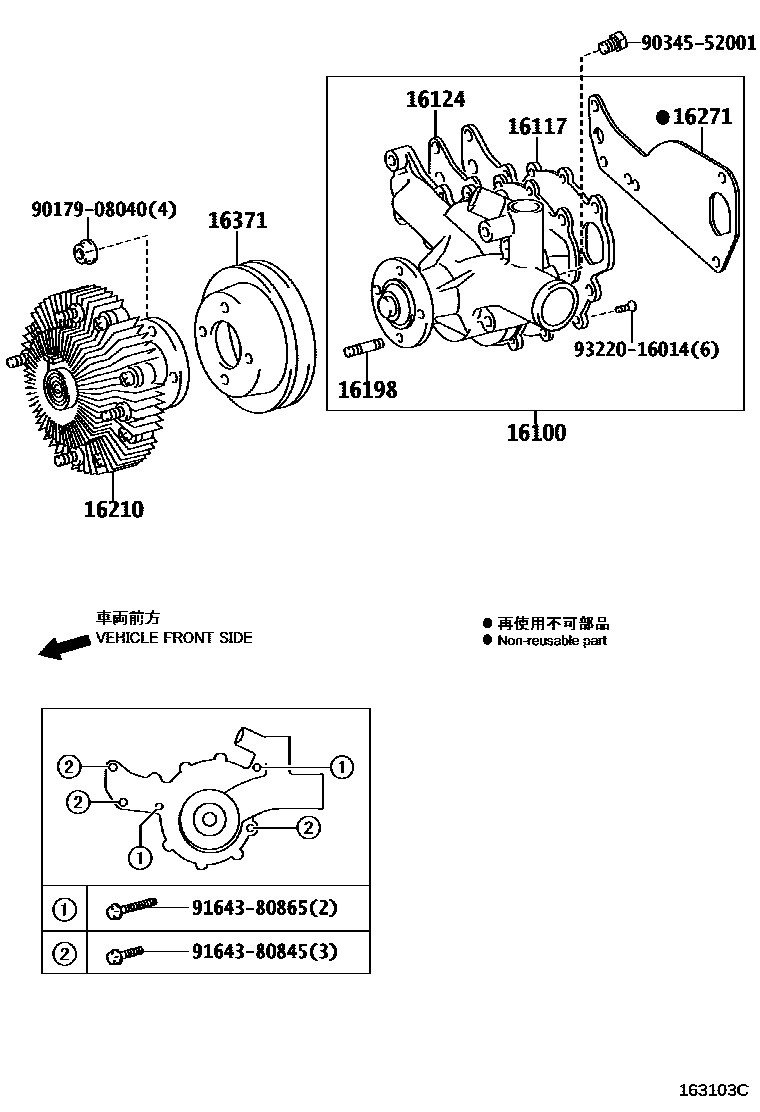

WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-59166i1BZFPE..BZU300,340200705

main16100-78110iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-200903

main16100-78111iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200903-200907

main16100-78112iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200907-201011

main16100-78170iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568201011

main16100-79445i2TRFE..TRU300,340,500200705-201106

16117PLATE, WATER PUMP

main16117-58010i1BZFPE..BZU300,340200705

16124GASKET, WATER PUMP COVER

main16124-58010i1BZFPE..BZU300,340200705

main16124-75030i2TRFE..TRU300,340,500200705

16198BOLT, STUD(FOR WATER PUMP PULLEY SEAT)

main16198-41170×4i1BZFPE..BZU300,340200705

main92122-80818×4i2TRFE..TRU300,340,500200705

16210COUPLING ASSY, FLUID

main16210-58030i1BZFPE..BZU300,340200705

main16210-75110i2TRFE..TRU300,340,500200705-200708

main16210-75111i2TRFE..TRU300,340,500200709

main16250-78110iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-200805

main16250-78111iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200805

16271GASKET, WATER PUMP

main16271-58010i1BZFPE..BZU300,340200705

16371PULLEY, FAN

main16308-78030iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

main16371-58070i1BZFPE..BZU300,340200705

main16371-75040i2TRFE..TRU300,340,500200705

9017908040

main90179-08040

9034552001

main90345-52001

9164380845

main91643-80845

9164380865

main91643-80865

9322016014

main93220-16014

12 parts on this diagram · 3 diagrams in section
