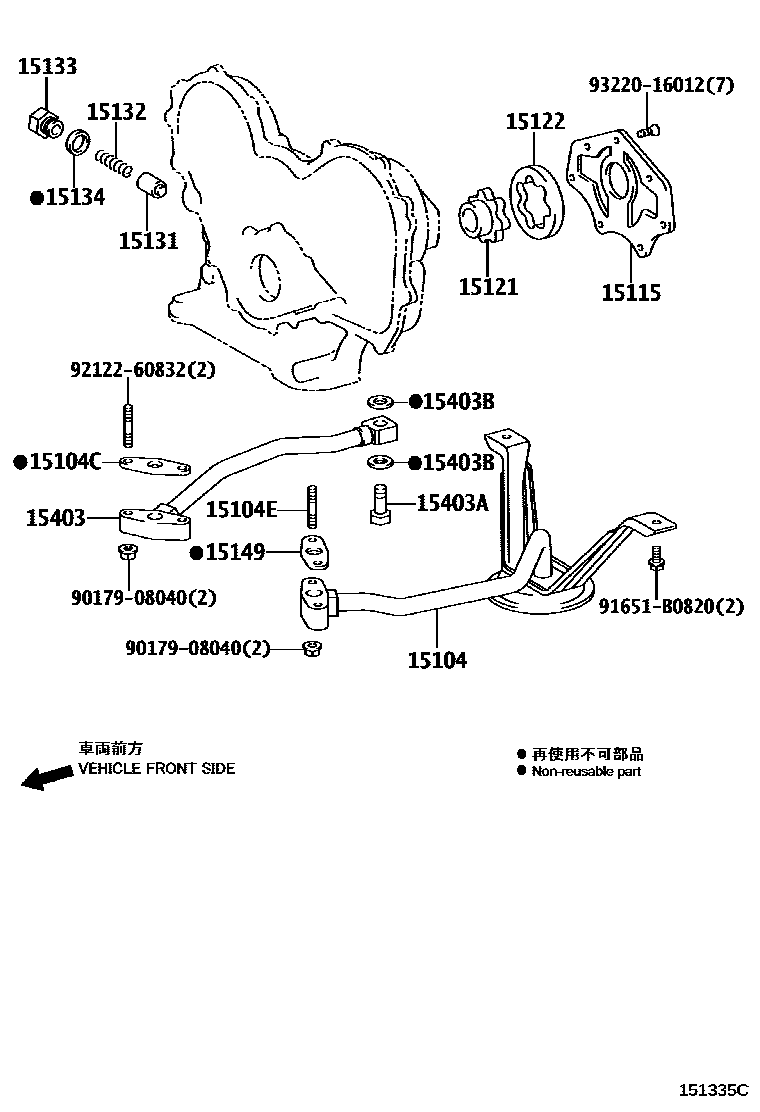

ENGINE OIL PUMP

0001 1 0002 1 0003 1

15104STRAINER SUB-ASSY, OIL

main15104-56062i1BZFPE..BZU300,340200705

main15104-75111i2TRFE..TRU300,340,500200705

main15401-78030iN04C..XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610

15104CGASKET(FOR OIL STRAINER)

main15149-58010i1BZFPE..BZU300,340200705

15104EBOLT, STUD(FOR OIL STRAINER)

main90126-08037i2TRFE..TRU300,340,500200705-201106

main92122-60832i1BZFPE..BZU300,340200705

15115COVER, OIL PUMP

main15115-56090i1BZFPE..BZU300,340200705

15121GEAR, OIL PUMP DRIVE

main15121-56090i1BZFPE..BZU300,340200705

15122GEAR, OIL PUMP DRIVEN

main15122-56090i1BZFPE..BZU300,340200705

15131VALVE, OIL PUMP RELIEF

main15131-24010i1BZFPE..BZU300,340200705

main15131-46040i2TRFE..TRU300,340,500200705

15132SPRING, OIL PUMP RELIEF VALVE

main15132-56080i1BZFPE..BZU300,340200705

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i1BZFPE..BZU300,340200705

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010i1BZFPE..BZU300,340200705

main15134-67020i2TRFE..TRU300,340,500200705

15149GASKET, OIL STRAINER FLANGE

main15149-58010i1BZFPE..BZU300,340200705

15403PIPE SUB-ASSY, OIL PUMP OUTLET

main15403-56050i1BZFPE..BZU300,340200705

15403AUNION(FOR OIL PUMP OUTLET PIPE)

main90401-20009i1BZFPE..BZU300,340200705

15403BGASKET(FOR OIL PUMP OUTLET PIPE)

main90430-20018i1BZFPE..BZU300,340200705

9017908040

main90179-08040

91651B0820

main91651-B0820

9212260832

main92122-60832

9322016012

main93220-16012

18 parts on this diagram · 3 diagrams in section
