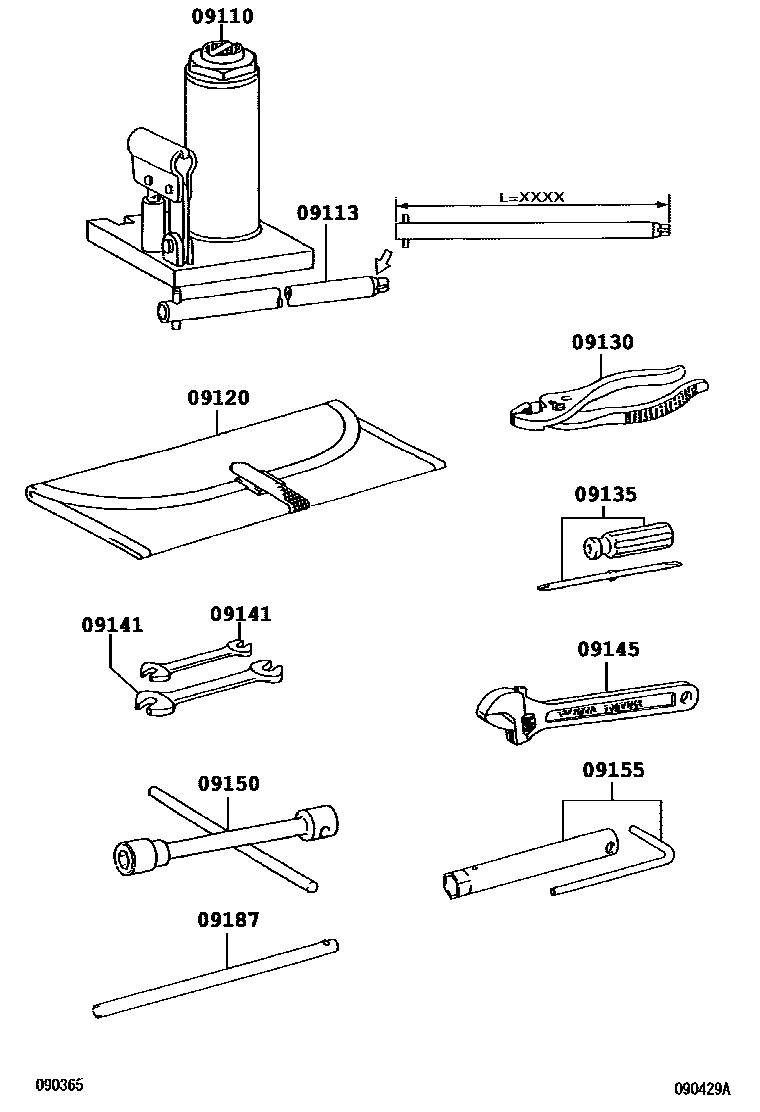

STANDARD TOOL
09110JACK ASSY
main09111-37230iXZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,XZU324,504,524..DM6,DM7,T5;BZU300,340,TRU300,XZU334,344,354..30T,35T,40T200610-200804
sub09111-37280
main09111-37260iXZU314,368,378,388;BZU300,340,TRU300,340,500,XZU30#,338,34#,354,50#,538,548,554,568..(03S,06S,DM5,T2,T3,T4,T5)..20T..WT200610-201106
main09111-37280iXZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,XZU324,504,524..DM6,DM7,T5;BZU300,340,TRU300,XZU334,344,354..30T,35T,40T200805-200906
sub09111-37281
main09111-37281iXZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,XZU324,504,524..DM6,DM7,T5;BZU300,340,TRU300,XZU334,344,354..30T,35T,40T200907-201005
sub09111-37282
main09111-37282iXZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,XZU324,504,524..DM6,DM7,T5;BZU300,340,TRU300,XZU334,344,354..30T,35T,40T201006-201106
sub09111-37283
09120BAG, TOOL
main09120-37030iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610-201012
main09120-37031iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568201101
09130PLIERS
main99913-11500iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
09135DRIVER, SCREW
main99915-10700iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
09141SPANNER
main99914-10810iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
main99914-11214iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
09145WRENCH, MONKEY
main99911-11200iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
09150WRENCH, HUB NUT BOX
main09150-37030iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
09155WRENCH, SPARK PLUG
09187HANDLE, SPARE WHEEL CARRIER
main09187-37010iBZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568200610
10 parts on this diagram · 1 diagram in section
