HEATING & AIR CONDITIONING - VACUUM PIPING

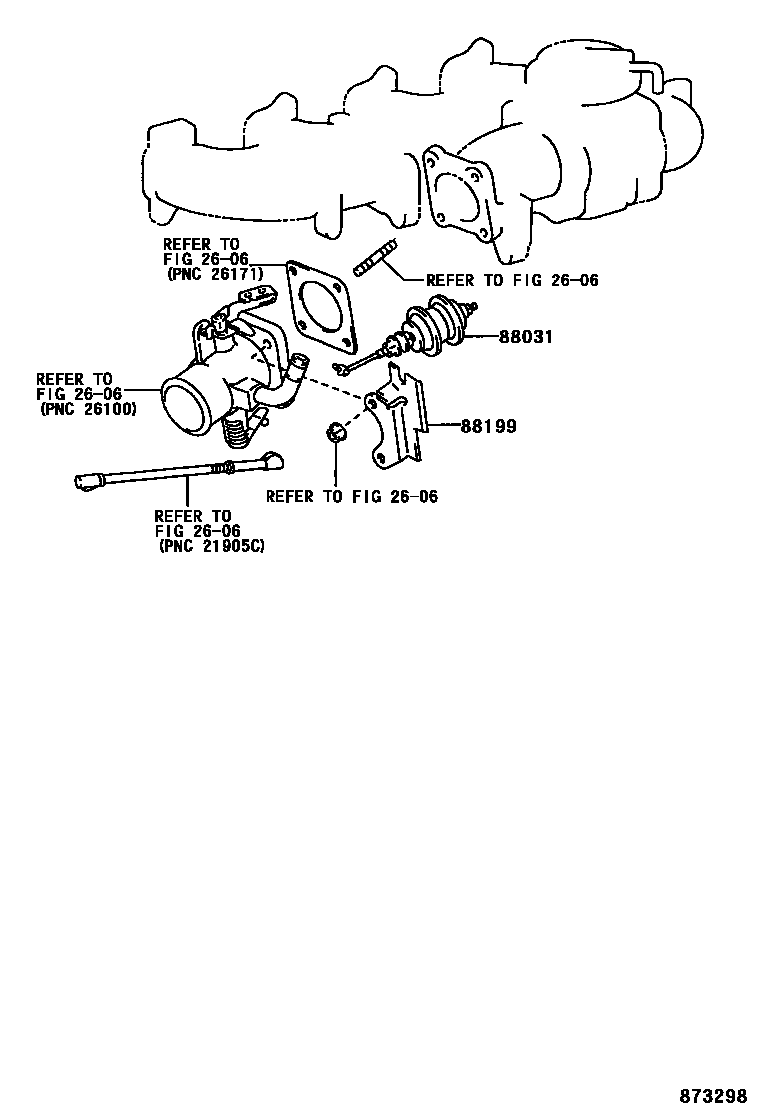

Parts diagram

2606VENTURI

→ Go to FIG 26-06

88031ACTUATOR SET, IDLE-UP

main88031-37030i199905-200406

88199BRACKET, IDLE UP ACTUATOR

main88199-37010i199905-200406

3 parts on this diagram · 1 diagram in section
