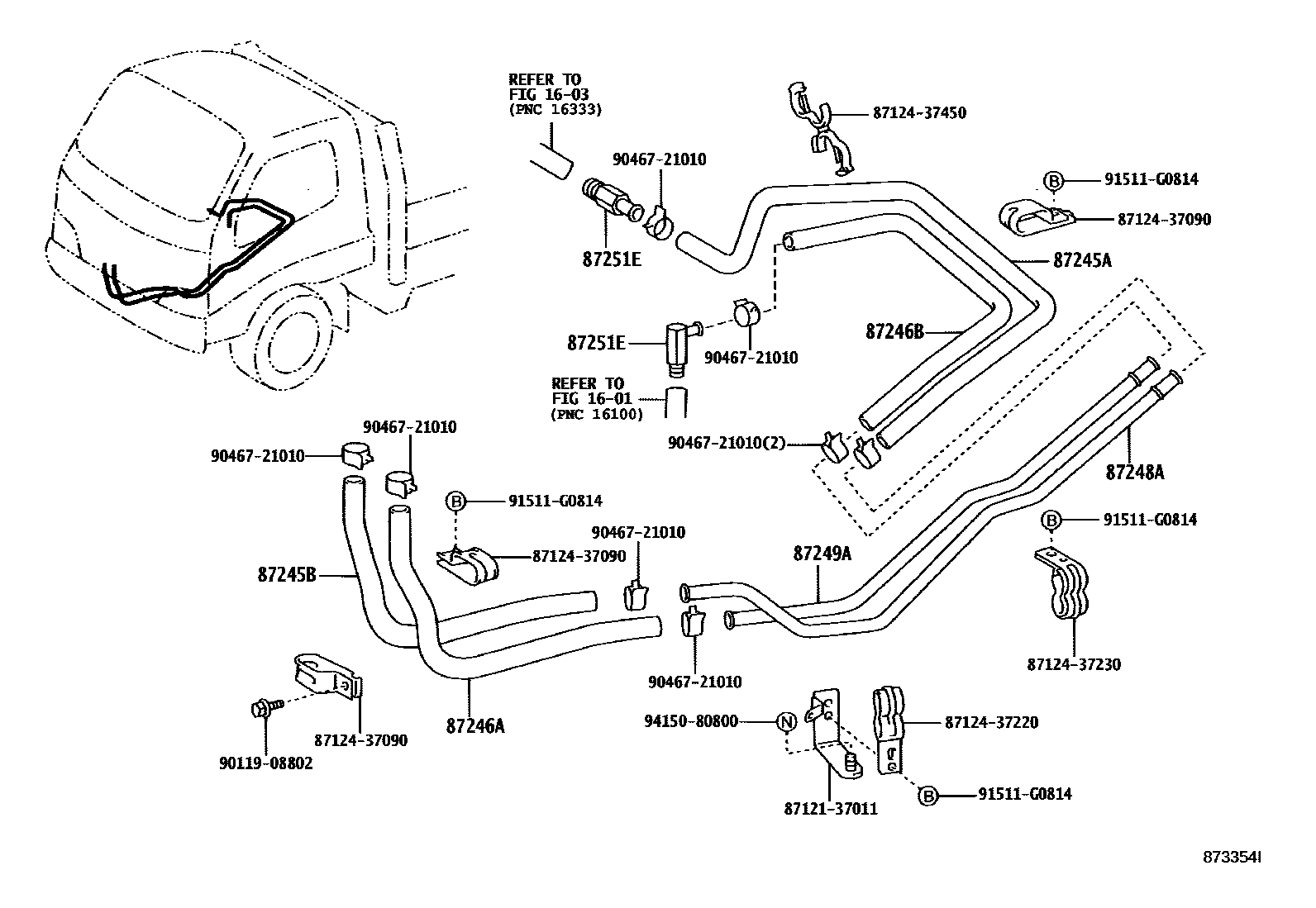

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1��(�� ���) 0005 1��(�� ���) 0006 1��(�� ���) 0007 1��(�� ���) 0008 1��(�� ���) 0009 1��(�� ���) 0010 1��(�� ���) 0011 1��(�� ���) 0012 1��(�� ���) 0013 1 0014 1��(�� ���) 0015 1 0016 1 0017 1 0018 1 0019 1 0020 1��(�� ���) 0021 1 0022 1 0023 1 0024 1��(�� ���) 0025 1��(�� ��� & �� ���) 0026 1��(�� ���) 0027 1��(�� ��� & �� ���) 0028 1��(�� ���) 0029 1��(�� ��� & �� ���) 0030 1��(�� ���) 0031 1��(�� ���) 0032 1��(�� ��� & �� ���) 0033 1 0034 1 0035 1��(�� ���) 0036 1��(�� ���)

1601WATER PUMP

→ Go to FIG 16-01

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

87245AHOSE, HEATER WATER, INLET A

main87245-37450iXZU304,305,344200310-200406

main87245-37531iBU30#,346199905-200406

main87245-37661iXZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#..DSL,DSLL199905-200406

main87245-37860iXZU362,37#,382199907-200406

main87245-37A30iXZU301,306,311,321,331,336,341,346,351200406-200610

main87245-3V390iRZU300,340..EFI200005-200406

main87245-3V410iRZU300..DCB200005-200406

main87245-3V440iRZU30#..LPG200005-200406

main87245-3V450iBZU300,340200406

main87245-3V490iXZU368,378,388200406-200610

87245BHOSE, HEATER WATER, INLET B

main87245-37840iXZU300,320,330,340,350200003-200406

main87245-37890iXZU347..DCB..T3..4FC200003-200406

main87245-37A00iXZU304,305,344200310-200406

main87245-37B20iXZU378,388..DCB200406-200610

main87245-37B30iXZU378,388..DCB200406-200610

main87245-3V010iBU30#..DCB200309-200406

main87245-3V020iXZU37#,382..DCB199908-200406

main87245-3V040iBZU300,340200406

main87245-3V380iRZU300,340..EFI200406

main87246-37420iRZU30#..LPG200406

main99556-30700iXZU362,372,382..SCB..1NO; XZU362..4NO;XZU382..SCB..IV3199907-200406

87246AHOSE, HEATER WATER, OUTLET A

main87245-37A00iXZU378,388..SCB;XZU30#,31#,321,33#,34#,35#,368200406

main87245-37B20iXZU378,388..DCB200406-200610

main87245-3V050iXZU347..DCB..T3..4FC200003-200406

main87245-3V430iRZU30#..LPG200005-200406

main87246-37091iXZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3199905-200206

main87246-37180iXZU37#,382..DCB199908-200406

main87246-37190iBZU300,340200406

main87246-37330iRZU300,340..EFI200406

main87246-37570iXZU378,388..DCB200406-200610

main99556-30500iXZU362..4NO;XZU382..SCB..IV3199907-200406

main99556-30700iXZU362,372,382..SCB..1NO199907-200406

87246BHOSE, HEATER WATER, OUTLET B

main87246-37021iBU30#,346..(SCB,VAN)..(03S,T1,T2,T3,T4,T5); BU30#..DCB200304-200406

main87246-37050iXZU300,330,340,350199906-200406

main87246-37270iXZU301,306,311,321,331,336,341,346,351200406-200610

main87246-37300iXZU301,302,306,307,31#,32#,331,337,341,342,346,347,351,352..DSL200206-200210

main87246-37340iRZU300,340..EFI200406

main87246-37370iRZU300..DCB200005-200406

main87246-37390iBZU300,340200005-200406

main87246-37410iRZU30#..LPG200406

main87246-37450iXZU304,308..(DCB,VAN)..(06S,T1,T4)200406-200610

main87246-37490iXZU368,378,388200406-200610

main87246-37690iXZU304200610

main99556-20200iBU30#..DCB200304-200406

main99556-30500iXZU362,37#,382199907-200406

87248PIPE SUB-ASSY, WATER

main87248-37720iXZU378,388..DCB200406-200610

main87248-37730iXZU378,388..DCB200406-200610

main87248-37740iXZU378..IV4200406-200610

main87248-37750iXZU378..IV4200406-200610

main87248-37760iXZU378,388..T3..20T200406-200610

main87248-37770iXZU378,388..T3..20T200406-200610

main87248-60460×2iRZU300..DCB200005-200406

87248APIPE, HEATER WATER INLET, A

main87248-37091iXZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3200210-200406

main87248-37110iXZU362,37#,382199907-200406

main87248-37140iBU30#..DCB200309-200406

main87248-37180iBU30#,346199905-200406

main87248-37411iXZU300,320,330,340,350199906-200106

main87248-37412iXZU300,320,330,340,350200106-200406

main87248-37450iXZU304,305,344200310-200401

main87248-37451iXZU304,305,308,314,334,338,344,348,354200406

main87248-37610iXZU368,378,388..SCB200406-200610

main87248-37620iXZU301,306,311,321,331,336,341,346,351200406-200610

main87248-37640iXZU306,346..DCB200406-200610

main87248-37660iXZU304,308..(DCB,VAN)..(06S,T1,T4)200406-200610

main87248-37790iXZU378,388..DCB200406-200610

main87248-60460iBU30#..DCB200309-200406

87249APIPE, HEATER WATER OUTLET, A

main87248-37101iXZU30#,31#,32#,33#,34#,35#199905-199907

main87248-37102iXZU300,320,330,340,350; XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;XZU302,307,31#,321,322,337,341,342,346,347,351,352..DSL,DSLL199907-200406

main87248-37120iXZU362,37#,382199907-200406

main87248-37190iBU30#,346199905-200406

main87248-37440iBU30#..DCB200309-200406

main87248-37530iXZU304,305,344200310-200401

main87248-37531iXZU378,388..SCB;XZU30#,31#,321,33#,34#,35#,368200406-200610

main87248-37630iXZU306,346..DCB200406-200610

main87248-37650iXZU304,308..(DCB,VAN)..(06S,T1,T4)200406-200610

main87248-37780iXZU378,388..DCB200406-200610

main87248-37A10iXZU304200610

main87248-60460iBU30#..DCB200309-200406

87251EJOINT, WATER, NO.2

main87251-30200iBU30#,346..03S,06S,T1,T2,T3,T4,T5199905-200406

main87251-95400iBU301..1NO199905-200206

8712137011BRACKET, HEATER, FRONT RH

main87121-37011

8712437090CLAMP, HEATER

main87124-37090

8712437220CLAMP, HEATER

main87124-37220

8712437230CLAMP, HEATER

main87124-37230

8712437450CLAMP, HEATER

main87124-37450

9011908802

main90119-08802

9046721010

main90467-21010

91511G0814

main91511-G0814

9415080800

main94150-80800

19 parts on this diagram · 36 diagrams in section
