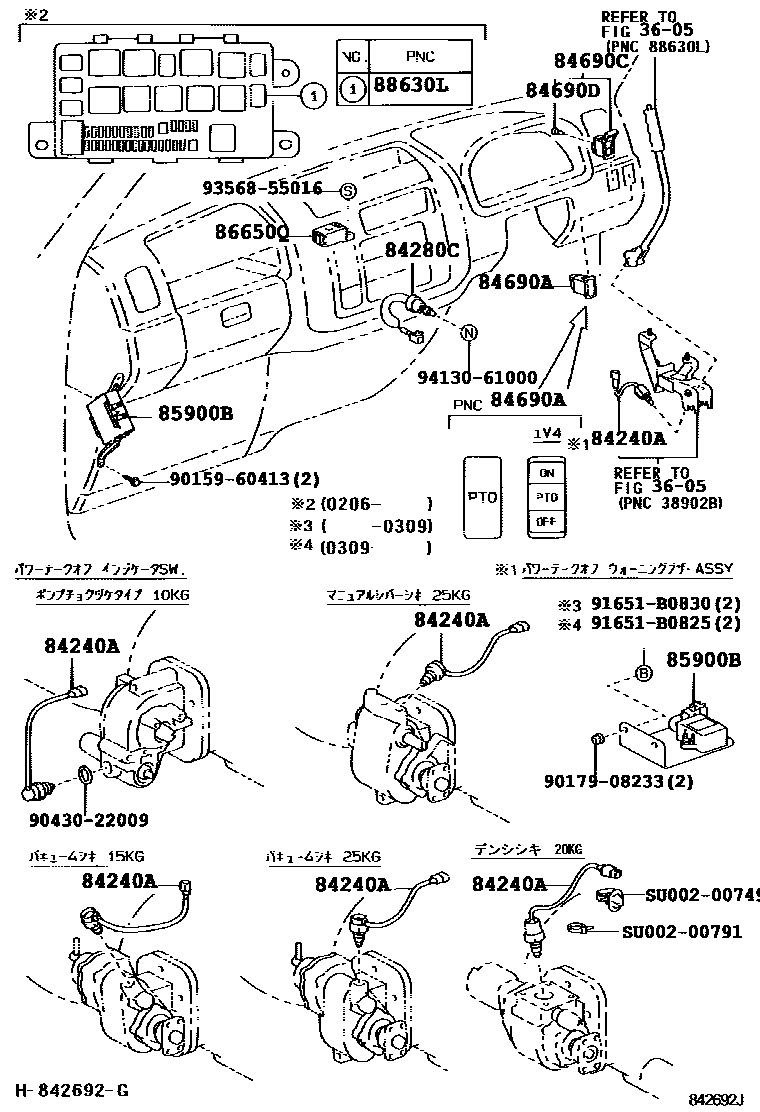

POWER TAKE-OFF CONTROL

0001 1 0003 1

3605POWER TAKE-OFF LEVER & LINK

→ Go to FIG 36-05

84240ASWITCH ASSY, POWER TAKE-OFF INDICATOR

main84240-37010iXZU362..DM5,DM7199907-200406

main84240-37020iXZU306..T4..DSLL;XZU302..5F..20T..1NO;XZU301,322,330..(T3,T5)..5F..(20T,40T);XZU301..(DM6,T3)..5F..(20T,30T)..(DSL,DSLL)..(CBU,IV3)199905-200206

main84240-37021iBZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340..5F..(EFI,LPG)200703

main84240-37030iXZU321..DM8;XZU321..5F..1NO;XZU301,302,31#,320,351,352..(DM2,DM3,DM5,DM7)..5F199905-200406

main84240-37040iXZU334,344..(35T,40T)..IV3200505-200610

main84240-93100iRZU30#,340,XZU304,334..5F..(DSL,EFI,LPG)200406-200702

mainSU00200790iXZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..5F..(20T,30T)..DSL..(CBU,IV3)..1NO200206-200406

84280CSWITCH ASSY, POWER TAKE-OFF CLUTCH

main88280-37010iBU30#,XZU301..(DM6,T1,T2,T3,T4,T5)..5F..(CBU,IV3);BU346,RZU300,340,XZU300,302,306,307,322,33#,34#,362,372,382..(DM6,T2,T3,T4,T5)..MTM..(DSL,DSLL,EFI,LPG)..(CBU,IV3)199905-200206

84690ASWITCH ASSY, POWER TAKE-OFF INDICATOR

main84690-37010iXZU322..4FC;XZU322..T5..5F;XZU301..4FC..IV6;XZU301..(DM6,T3,T4,T5)..(CBU,IV3);XZU301,312,321..(DM3,DM5,DM7)..4FC;BU30#,346,RZU300,340,XZU300,302,306,307,33#,34#,362,372,382..(DM6,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI,LPG)..(CBU,IV3)199905-200206

main84690-37020iXZU304,334,378..IV4200406-200610

84690CSWITCH ASSY, POWER TAKE-OFF INDICATOR, NO.2

main84690-37030iXZU304,334,378..IV4200406-200610

84690DBULB, POWER TAKE OFF INDICATOR, NO.2

main84999-10100iXZU331..4FC..IV4;XZU301,371..DSL..IV4;XZU331..5F..DSL..IV4;XZU301..4FC..DSLL..IV4199908-200406

85900BRELAY ASSY, CONTROL UNIT

main85900-37030iXZU301,331,371..IV4199908-200104

main85900-37031iXZU301,331..5F..DSLL..IV4200104-200206

main85900-37070iXZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..5F..(20T,30T)..DSL..(CBU,IV3)..1NO200206-200210

main85900-37081iXZU301..5F..DSLL..1NO;XZU302,330..5F..(20T,40T)..1NO; XZU301..T5..20T;XZU301..5F..(20T,30T)..DSL..(CBU,IV3)..1NO200311-200406

86650QBUZZER ASSY, POWER TAKE-OFF WARNING

main86650-37040iXZU301,331,371..IV4199908-200206

main86650-37120iXZU301,331,371..DSL..IV4;XZU301,302,32#,352..(DM3,DM5,DM6,DM7)..4FC..DSL..(CBU,IV3)200206-200210

88630LRELAY, POWER TAKE-OFF CONTROL

main90987-02017iXZU302..5F..20T..1NO;XZU301,330..(T3,T5)..(20T,40T);XZU301..5F..(20T,30T)..DSL..(CBU,IV3)..1NO200206-200210

9015960413

main90159-60413

9017908233

main90179-08233

9043022009

main90430-22009

91651B0825

main91651-B0825

91651B0830

main91651-B0830

9356855016

main93568-55016

9413061000

main94130-61000

SU00200749

mainSU002-00749

SU00200791

mainSU002-00791

18 parts on this diagram · 2 diagrams in section
