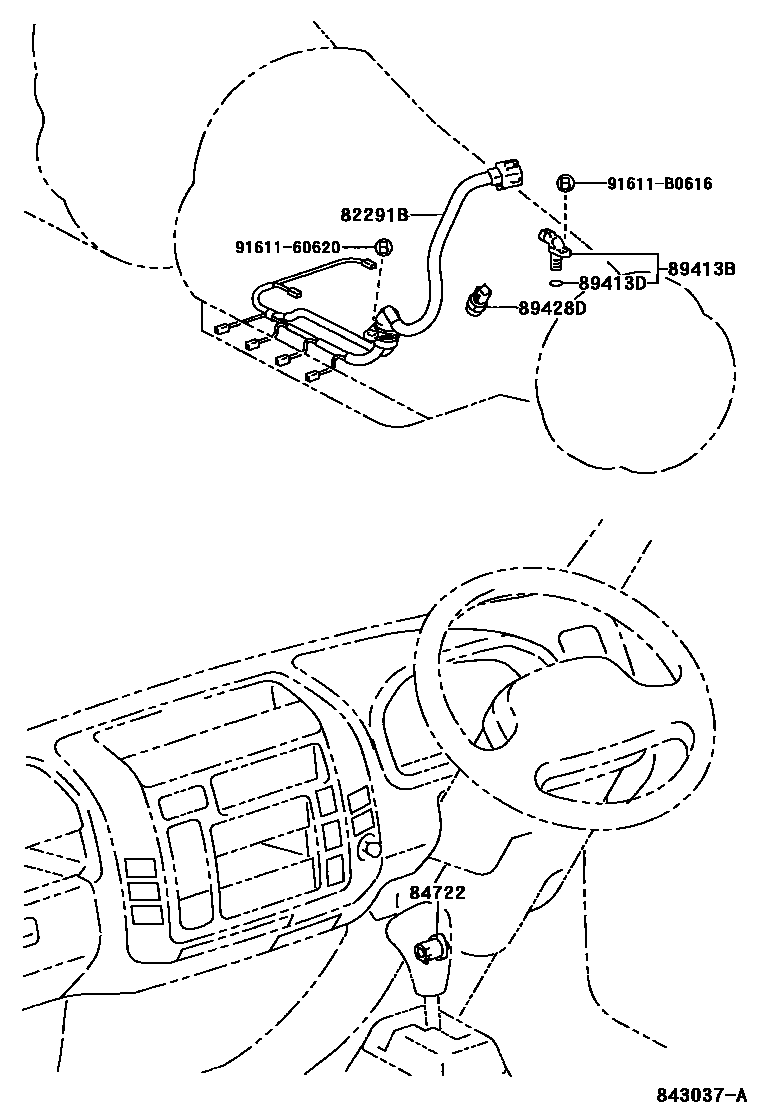

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0003 1 0004 1

82291BWIRE, TO SOLENOID (FOR TRANSMISSION)

main82291-37020iXZU301,331..4FC..DSLL199905-200206

84722SWITCH, TRANSMISSION CONTROL

main84722-37020-B0iXZU301,302,306,307,312,321,322,331,337,341,347..4FC199905-200206

DK.CHARCOAL,TRIM1#

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-32010iXZU301,331..4FC..DSL;XZU302,306,307,312,321,322,337,341,347,352..4FC199905-200406

main89413-37010×2iXZU301,304,306,331,334,336,341,346,351..6FC200406-200610

main89413-60020iXZU304,308,334,338,348..4FC200406-200610

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008iXZU301,331..4FC..DSLL200210-200406

89428DSWITCH, TEMPERATURE, NO.2

main89428-60090iXZU301,331..4FC..DSLL199905-200206

9161160620

main91611-60620

91611B0616

main91611-B0616

7 parts on this diagram · 3 diagrams in section
