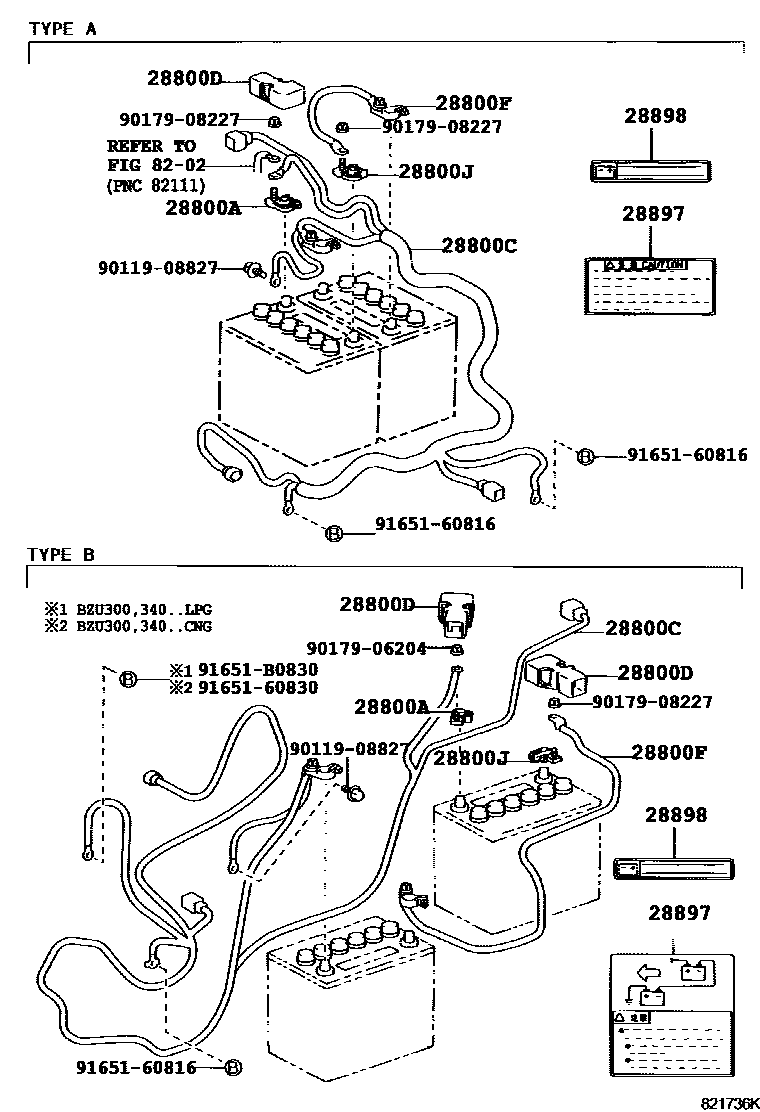

BATTERY & BATTERY CABLE

0001 12BATTERY 0002 11BATTERY 0003 1����� 0004 1

28800ATERMINAL, BATTERY POSITIVE

main90982-05040iS05D..XZU301,331..4FC..DSLL..IV4199908-200206

main90982-05042iN04C..XZU304,305,308,314,334,338,354..(DCB,SCB)..(CBU,IV3,IV6)200406-200609

main90982-05044iN04C,S05D..XZU306,308..VAN200406-200610

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82122-37070iS05C..XZU362199907-200206

main82122-37071iS05C..XZU362200206-200406

main82122-37080iS05C..XZU372,382..SCB199907-200206

main82122-37081iS05C..XZU372,382..SCB200206-200406

main82122-37090iS05D..XZU371199908-200206

main82122-37091iS05D..XZU371200206-200406

main82122-37110iJ05C,S05#..XZU32#199905-200206

main82122-37111iS05#..XZU32#200206-200406

main82122-37160i4B..BU30#..DCB,SCB199905-200406

main82122-37170i4B..BU346199905-200406

main82122-37180i4B..BU306..VAN199905-200406

main82122-37200i3RZFE..RZU300..DCB200005-200306

main82122-37220iS05C..XZU307..SCB..T4..4FC..CBU; S05C..XZU347..DCB;S05D..XZU306..IV3;S05C..XZU307..T2,T5;S05C..XZU307..T4..5F;S05D..XZU306..T5..CBU;S05C..XZU307..T4..4FC..IV3;S05C..XZU307..DCB..4FC..CBU;J05C,S05#..XZU300,301,302,31#,33#,351,352..CBU,IV3; S05D..XZU306..T4..5F..CBU199905-200206

main82122-37221iS05D..XZU306..5F..DSLL..IV3;S05D..XZU301..DSLL..IV3..1NO200210-200406

main82122-37230iS05C..XZU307..5F..IV3;S05C..XZU337..T4..IV3;S05D..XZU331..T3..5F..IV3;S05C..XZU307..T4..4FC..IV3199905-200206

main82122-37231iS05C..XZU307..5F..IV3;S05D..XZU301..295T..1NO;S05C..XZU307..T4..4FC..IV3;S05C..XZU302,337..T4..20T..IV3;S05D..XZU306,331..(T3,T5)..5F..IV3200206-200406

main82122-37240iS05D..XZU306..T4..CBU;J05C,S05#..XZU34#..SCB;S05C..XZU307..SCB..T4..4FC..CBU199905-200206

main82122-37241iJ05C,S05#..XZU340,341,342,346,347..SCB200206-200406

main82122-37250iS05D..XZU341..295T200005-200206

main82122-37251iS05D..XZU341..6F..IV3;S05#..XZU342,346..T4..IV3;S05C..XZU347..SCB..5F..IV3;S05D..XZU341..6F..295T..CBU;S05C..XZU347..SCB..T4..4FC..IV3200206-200406

main82122-37260iS05D..XZU301..IV6,IV7199905-200206

main82122-37261iS05D..XZU301..IV6,IV7200206-200406

main82122-37270iJ05C..XZU350199906-200206

main82122-37271iJ05C..XZU350200206-200406

main82122-37280iS05D..XZU301,331..IV4199908-200206

main82122-37281iS05D..XZU301,331..DSLL..IV4200210-200406

main82122-37290iS05C..XZU307..03S199908-200206

main82122-37291iS05C..XZU307..03S200206-200406

main82122-37300i3RZ#..RZU300,340..SCB200005-200306

main82122-37320i15BLPG,1BZFPE..BZU300,XZU301,302..DM6,T4200005-200406

main82122-37340i1BZFPE..BZU300..T4..20T..IV3; 1BZFPE..BZU340;1BZFPE..BZU300..T3200406

main82122-37370iS05C..XZU372,382..T3..20T199908-200206

main82122-37371iS05C..XZU372,382..T3..20T200206-200406

main82122-37470i1BZFNE..BZU300,340200406

main82122-37660i3RZFE..RZU340..IV3;3RZ#..RZU300..SCB..T4..20T..IV3200206-200306

main82122-37740i3RZFE..RZU300..DCB200306-200406

main82122-37750i3RZ#..RZU30#,340..SCB200306-200406

main82122-37760i3RZ#..RZU30#,340..SCB..T4..5F..20T..IV3; 3RZFPE..RZU301..4FC..IV3200406

main82122-37830iN04C..XZU304,305,308,314,334,338,354..(DCB,SCB)..(CBU,IV3,IV6)200406

main82122-37840iN04C..XZU344,348200406-200610

main82122-37860iS05D..XZU346..DCB;S05D..XZU301,306,311,331,336,351..DCB,SCB200406-200610

main82122-37870iS05D..XZU341,346..SCB200406-200610

main82122-37880iS05D..XZU306..03S200406-200610

main82122-37890iS05D..XZU321200406-200610

main82122-37A30iN04C..XZU304..IV7200406-200610

main82122-37A40iN04C..XZU304,334..IV4200406-200505

main82122-37A50iN04C..XZU368,378,388..CBU,IV3200406-200604

main82122-37A51iN04C..XZU368,378,388..CBU,IV3200605-200610

main82122-37A60iN04C..XZU378..IV4200406-200505

main82122-37A70iN04C..XZU308..VAN200406-200610

main82122-37B40iN04C..XZU304,334..IV4200505-200610

main82122-37B50iN04C..XZU378..IV4200505-200606

main82122-37B51iN04C..XZU378..IV4200607-200610

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-37071×2i1BZFPE..BZU300..T4..20T..IV3; 1BZFPE..BZU340;N04C,S05D,1BZFPE..BZU300,XZU306,308..03S,06S,T3; 3RZ#..RZU30#,340..CBU;3RZFE..RZU300..DCB..IV3;3RZFE..RZU300..T4..30T..IV3;3RZFE..RZU300..(DM5,T2,T3)..IV3;N04C,S05D,1BZFNE..BZU340,XZU301,304,331,334,341,344,346,354,378,388;N04C,S05D,1BZ#,3RZFPE..BZU300,RZU300,XZU305,306,308,31#,321,336,338,348,351,368..DM2,DM5,DM6,DM7,T2,T4,T5; 3RZ#..RZU30#,340..SCB..T4..5F..20T..IV3; 3RZFPE..RZU301..4FC..IV3200406

28800FCABLE, BATTERY TO BATTERY

main82123-37040iS05D..XZU301,331..4FC..DSLL;S05D..XZU301..(DM6,T3)..(IV6,IV7);S05D..XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3199905-200206

main82123-37050iS05C,4B..BU306,XZU307..VAN199905-200406

main82123-37090i1BZFPE..BZU340;1BZFPE..BZU300..T3;1BZFPE..BZU300..T4..20T..IV3200406

main82123-37130i3RZFE..RZU340..IV3;3RZ#..RZU30#..SCB..T4..20T..IV3200206-200406

main82123-37170iN04C..XZU304200610

28800JTERMINAL, BATTERY NEGATIVE

main90982-05056iN04C..XZU304200610

main90982-06028iS05D..XZU331..DSL;S05D..XZU306..DSLL..CBU;S05D..XZU301..5F..DSL..IV3;S05D..XZU301..T4..IV6..1NO;S05D..XZU301..5F..(CBU,IV4);S05D..XZU306..4FC..DSLL..IV3;S05D..XZU301..DSLL..IV3..4NO;S05D..XZU306,331..(T3,T5)..5F..DSLL;S05D..XZU301..4FC..DSL..(CBU,IV3,IV4);S05D,3RZFE..RZU300,XZU306..SCB..(DSL,EFI);J05C,S05#,15BCNG,1BZFNE,4B..BU30#,346,BZU340,XZU300,302,307,31#,321,330,340,341,342,346,347,350,351,37#,382;J05C,S05C,15B#,1BZ#,3RZ#..BZU300,RZU30#,340,XZU301,302,320,322,337,352,362..SCB..(DM2,DM5,DM6,DM7,DM8,T2,T4,T5)199905-200406

28897PLATE, BATTERY CAUTION

main28897-54030i15BLPG..XZU342;15BLPG..XZU301,341..T3200005-200206

main28897-78020iN04C,S05D..XZU306,308..VAN200406-200610

28898PLATE, BATTERY

main28898-78010×2iS05C,4B..BU306,XZU307..VAN199905-200406

8202WIRING & CLAMP

→ Go to FIG 82-02

9011908827

main90119-08827

9017906204

main90179-06204

9017908227

main90179-08227

9165160816

main91651-60816

9165160830

main91651-60830

91651B0830

main91651-B0830

14 parts on this diagram · 4 diagrams in section
