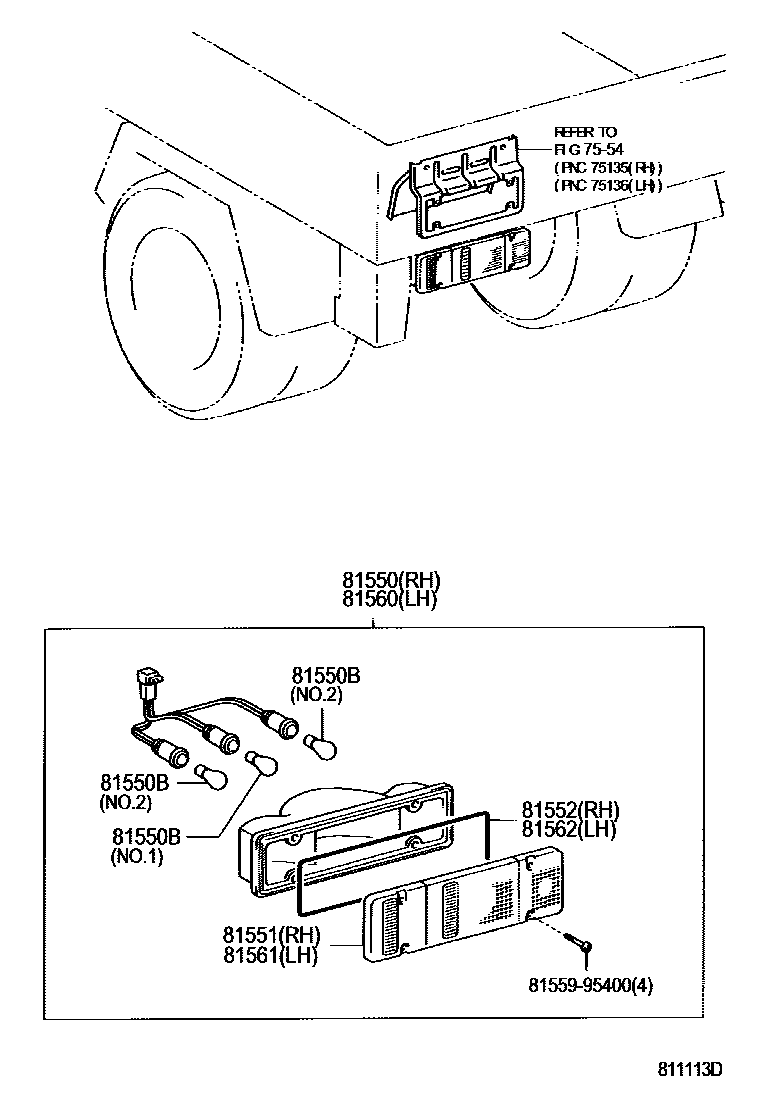

REAR COMBINATION LAMP

0001 1TYPE A 0002 1TYPE B 0003 1TYPE A 0004 1TYPE A 0006 1TYPE B 0007 1

7554TOOL BOX & LICENSE PLATE BRACKET

→ Go to FIG 75-54

81550LAMP ASSY, REAR COMBINATION, RH

main81550-27070iRZU300..LPG;BZU300,340..T4..CNG;BZU300,340,RZU30#,340..(T2,T3,T4)..CBU200505-200705

main81550-37050iXZU306,322..T5..4FC..CBU;XZU347..DCB..T3..4FC..CBU;XZU301,302..T4..(CBU,IV6)..1NO199905-200206

main81550-37060iBZU300,340..T4..CNG;BZU300,340,RZU30#,340..CBU200005-200406

main81550-37080iBZU300..T4..30T..CBU;BZU300,340,RZU30#,340..IV3200406-200505

main81550-37100iBU306,XZU307..VAN199905-200406

main81550-37120iXZU304,305,344..IV3200310-200406

main81550-37170iRZU300..DM5..CBU;BZU300..T4..30T..CBU;BZU300,340,RZU30#,340..IV3200505-200705

main81550-37180iXZU301..ST..CBU;XZU306..DCB..IV3;XZU301..(DM6,T4)..6FC..IV3;XZU301,306..(T2,T3,T5)..IV3;XZU308..SCB..(T2,T4)..5F..CBU;XZU306,368..(DM5,T2,T5)..5F..CBU;XZU301..(DM3,DM6,T4)..5F..(CBU,IV3);XZU304,346..SCB..(T4,T5)..5F..DSL..CBU;XZU304,308,33#,34#,368,378,388..IV3,IV4,IV7;XZU305,306,31#,321,35#..SCB..(DM2,DM5,DM6,DM7,T4)..(CBU,IV3)200505-200705

main81550-37210iXZU306,308..VAN200505-200610

main81550-37240iXZU306..SCB..T4..6FC..IV3;XZU334,344..(35T,40T)..IV3;XZU301,304,306,308,33#,34#,354,368,378,388..(DM6,T1,T2,T3,T4,T5)..(CBU,IV6)200505-200610

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-16014×4iXZU306,308..VAN200505-200610

main90981-16015×2iXZU30#,31#,321,33#,34#,35#,368,378,388..DCB,SCB200505

main90981-16026×4iXZU306,308..VAN200406-200505

main90981-16027×2iXZU304,305,344200310-200406

main99132-11210×4iRZU300..LPG;BZU300,340..T4..CNG;BZU300,340,RZU30#,340..(T2,T3,T4)..CBU200406

main99132-21210×2iRZU300..EFI;RZU300..30T..LPG;BZU300,340,RZU301,340200005-200406

main99134-11250×4iXZU302..T3..CBU;XZU347..SCB..CBU;XZU347..DCB..5F..CBU;XZU306,322..T5..5F..CBU;XZU302..(T4,T5)..CBU..4NO;XZU347..DCB..T4..4FC..CBU;XZU301..(T3,T5)..(CBU,IV6);XZU301,306..T4..(CBU,IV6)..4NO;BU30#,346,XZU300,307,33#,340,341,342,346,362,372,382..(T1,T2,T3,T4,T5)..CBU199905-200406

main99134-12250×4iXZU302..5F..ST..CBU;XZU307..SCB..T4..CBU;XZU302..T4..5F..20T..CBU;XZU307..(T2,T5)..5F..CBU;BU301,XZU347..SCB..(T3,T4,T5)..5F..CBU;BU306,XZU301,306..SCB..(T2,T4)..5F..CBU..4NO; XZU312..DCB;XZU302..T3..IV3;XZU301..DM3..5F;XZU31#..30T..4NO;XZU321..DM7..4NO;XZU347..SCB..IV3;XZU301..T4..IV3..4NO;XZU347..DCB..5F..IV3;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU347..DCB..T4..4FC..IV3;XZU306,322..T5..5F..DSL..IV3;XZU302..(T4,T5)..DSL..IV3..4NO;XZU306,331..(T3,T4)..DSL..(IV3,IV4);XZU301..(DM6,T3,T5)..DSL..(IV3,IV4,IV7);XZU302,322,351,352,362..DM2,DM3,DM5,DM6,DM7,DM8;BU30#,346,XZU300,307,330,337,340,341,342,346,362,37#,382..(T1,T2,T3,T4,T5)..(DSL,DSLL)..(IV3,IV4)199905-200406

81551LENS, REAR COMBINATION LAMP, RH

main81551-37100iXZU306,308..VAN200406-200505

main81551-37110iXZU301..ST..CBU;XZU306..DCB..IV3;BZU300..T4..30T..CBU;RZU300,XZU368..DM5..CBU;XZU306..(T2,T5)..5F..CBU;XZU301..(DM6,T4)..6FC..IV3;XZU301,306..(T2,T3,T5)..IV3;XZU308..SCB..(T2,T4)..5F..CBU;XZU301..(DM3,DM6,T4)..5F..(CBU,IV3);XZU304,346..SCB..(T4,T5)..5F..DSL..CBU;XZU306,31#,321,35#..SCB..(DM2,DM5,DM7,T4)..(CBU,IV3);BZU300,340,RZU30#,340,XZU304,305,308,33#,34#,368,378,388..IV3,IV4,IV7200505

main81551-37120iRZU300..20T..LPG;XZU301,302,341,342..CNG,LPG199905-200306

main81551-37210iXZU306,308..VAN200505-200610

main81551-60442iRZU300..LPG;XZU344..35T..IV3;XZU306..SCB..T4..6FC..IV3;BZU300,340,XZU334..(T3,T4)..(20T,40T)..(CNG,DCRL);BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#,354,368,378,388..(DM6,T1,T2,T3,T4,T5)..(CBU,IV6)200505

main81551-60451iXZU301,350..(20T,40T)..IV6199908-200406

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-37120iXZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3200210-200406

main81552-95400iXZU306..SCB..T4..6FC..IV3;XZU334,344..(35T,40T)..IV3200505

81560LAMP ASSY, REAR COMBINATION, LH

main81560-27040iRZU300..LPG;BZU300,340..T4..CNG;BZU300,340,RZU30#,340..(T2,T3,T4)..CBU200505-200705

main81560-37070iXZU306..DSLL..CBU;XZU301..(DM6,T3)..IV6;XZU341..4FC..295T..CBU;XZU372,382..T3..20T..CBU;BU301,XZU342,350..WT..(CBU,IV6);XZU301,302..(T4,T5)..WT..(CBU,IV6)..4NO199908-200406

main81560-37080iRZU300..30T..LPG200206-200406

main81560-37090iRZU300..20T..LPG;XZU301,302,341,342..CNG,LPG200005-200306

main81560-37110iBU306,XZU307..VAN199905-200406

main81560-37130iXZU306,322..T5..4FC..IV3;BU301,XZU311,320,321..1NO;XZU347..DCB..T3..4FC..IV3;XZU301,302..T4..DSL..IV3..1NO;XZU31#,321..SCB..(DM5,DM8)..20T; XZU311..DCB;XZU306..T5..DSLL;XZU301..DM3..4FC..30T;XZU301,331..5F..DSLL..IV4199905-200206

main81560-37170iRZU300..DM5..CBU;BZU300..T4..30T..CBU;BZU300,340,RZU30#,340..IV3200505-200705

main81560-37180iXZU301..ST..CBU;XZU306..DCB..IV3;XZU301..(DM6,T4)..6FC..IV3;XZU301,306..(T2,T3,T5)..IV3;XZU308..SCB..(T2,T4)..5F..CBU;XZU306,368..(DM5,T2,T5)..5F..CBU;XZU301..(DM3,DM6,T4)..5F..(CBU,IV3);XZU304,346..SCB..(T4,T5)..5F..DSL..CBU;XZU304,308,33#,34#,368,378,388..IV3,IV4,IV7;XZU305,306,31#,321,35#..SCB..(DM2,DM5,DM6,DM7,T4)..(CBU,IV3)200505-200705

main81560-37210iXZU306,308..VAN200505-200610

main81560-37240iXZU306..SCB..T4..6FC..IV3;XZU334,344..(35T,40T)..IV3;XZU301,304,306,308,33#,34#,354,368,378,388..(DM6,T1,T2,T3,T4,T5)..(CBU,IV6)200505-200610

81561LENS, REAR COMBINATION LAMP, LH

main81561-37110iBU306,XZU307..VAN199905-200406

main81561-37120iXZU301..ST..CBU;XZU306..DCB..IV3;BZU300..T4..30T..CBU;RZU300,XZU368..DM5..CBU;XZU306..(T2,T5)..5F..CBU;XZU301..(DM6,T4)..6FC..IV3;XZU301,306..(T2,T3,T5)..IV3;XZU308..SCB..(T2,T4)..5F..CBU;XZU301..(DM3,DM6,T4)..5F..(CBU,IV3);XZU304,346..SCB..(T4,T5)..5F..DSL..CBU;XZU306,31#,321,35#..SCB..(DM2,DM5,DM7,T4)..(CBU,IV3);BZU300,340,RZU30#,340,XZU304,305,308,33#,34#,368,378,388..IV3,IV4,IV7200505

main81561-37130iXZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3200210-200406

main81561-37210iXZU306,308..VAN200505-200610

main81561-60372iRZU300..LPG;XZU344..35T..IV3;XZU306..SCB..T4..6FC..IV3;BZU300,340,XZU334..(T3,T4)..(20T,40T)..(CNG,DCRL);BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#,354,368,378,388..(DM6,T1,T2,T3,T4,T5)..(CBU,IV6)200505

main81561-60381iXZU304..CBU200310-200406

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-37120iXZU301..ST..CBU;XZU306..DCB..IV3;BZU300..T4..30T..CBU;RZU300,XZU368..DM5..CBU;XZU306..(T2,T5)..5F..CBU;XZU301..(DM6,T4)..6FC..IV3;XZU301,306..(T2,T3,T5)..IV3;XZU308..SCB..(T2,T4)..5F..CBU;XZU301..(DM3,DM6,T4)..5F..(CBU,IV3);XZU304,346..SCB..(T4,T5)..5F..DSL..CBU;XZU306,31#,321,35#..SCB..(DM2,DM5,DM7,T4)..(CBU,IV3);BZU300,340,RZU30#,340,XZU304,305,308,33#,34#,368,378,388..IV3,IV4,IV7200406

main81552-95400iXZU301,350..(20T,40T)..IV6199908-200406

8155995400MOULDING, REAR COMBINATION LAMP, RH

main81559-95400

9 parts on this diagram · 6 diagrams in section
