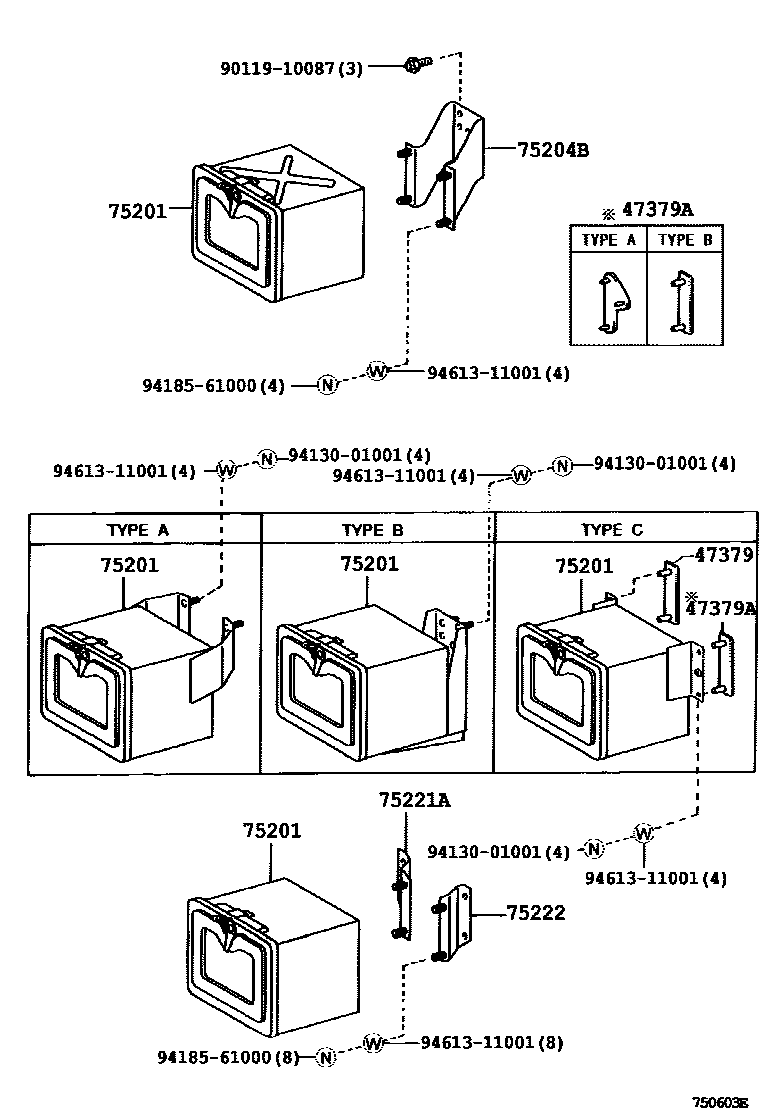

TOOL BOX & LICENSE PLATE BRACKET
47379SPACER, BRAKE TUBE, NO.1
main47379-37040iXZU331..SCB;BU301,XZU300,301,302,330..(T3,T5)..(20T,295T,30T)..(CBU,IV3)199905-199909
47379ASPACER, BRAKE TUBE, NO.2
main47379-37030iXZU306..T4..IV3;XZU307..SCB..T4..4FC..IV3;BU30#,XZU307..SCB..(T1,T4)..5F199905-199909
main47379-37080iXZU301..ST;XZU368..T4..20T..IV3;XZU304..20T..DSLL..4NO;XZU304..SCB..(T1,T3,T4)..(DCRL,DSL)..(CBU,IV3);BZU300,RZU300,XZU304..SCB..(T3,T5)..(DSL,DSLL,EFI,LPG);BZU300,RZU300,XZU301,306,308..SCB..T4..20T..(DSL,EFI,LPG)..(CBU,IV3);BZU340,RZU301,340,XZU301,33#,34#,378,388..SCB..(T3,T4)..(20T,30T,35T)..(DCRL,DSL,DSLL,EFI,LPG)..(CBU,IV3)..1NO200406
75201BOX SUB-ASSY, TOOL W/STAY
main75210-37100iRZU300..T2;RZU300..T4..30T;XZU331,372..SCB;BU30#,XZU30#,337..SCB..(T2,T4,T5)..WT..(DSL,DSLL,LPG)..(CBU,IV3)199905-200108
main75210-37101iRZU300..T2;RZU300..T4..30T;XZU331,372..SCB;BU30#,XZU30#,337..SCB..(T2,T4,T5)..WT..(DSL,DSLL,LPG)..(CBU,IV3)200108-200206
main75210-37130iXZU302..ST;RZU300,XZU302..SCB..T4..20T..(DSL,EFI,LPG);BU306,XZU306,307,337,340..SCB..(T3,T4)..DSL;RZU300,XZU300,301,302..T3..(DSL,EFI,LPG)..(CBU,IV3);BU301,346,RZU340,XZU330,331,341,342,346,347,382..SCB..(T2,T3,T4,T5)..(20T,295T,30T)..(DSL,EFI,LPG)200206-200210
75204BSTAY SUB-ASSY, TOOL BOX
75221ABRACKET, TOOL BOX, RH
75222BRACKET, TOOL BOX, LH
9011910087
main90119-10087
9413001001
main94130-01001
9418561000
main94185-61000
9461311001
main94613-11001
10 parts on this diagram · 4 diagrams in section
