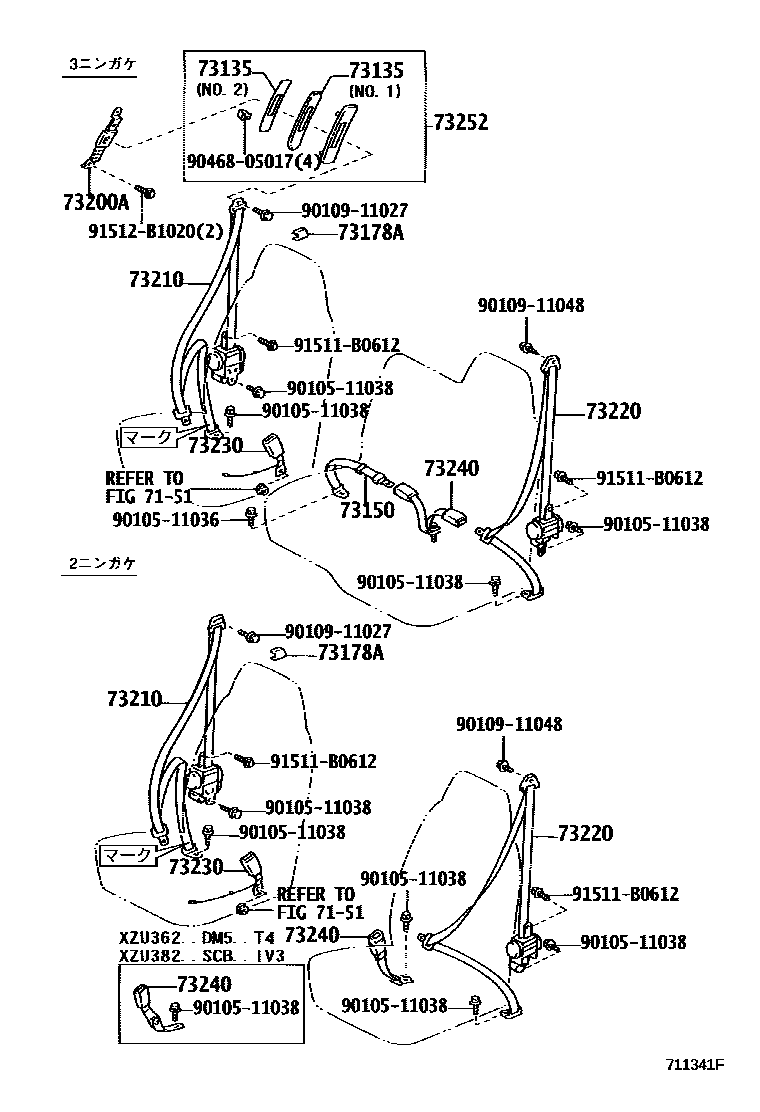

SEAT BELT

0001 1 0002 1 0004 1��(SRS �������, �������� �-��0006 1���� 0007 1�� 0008 1��

7151SEAT & SEAT TRACK

→ Go to FIG 71-51

73135COVER, SHOULDER BELT ANCHORAGE PLATE

main73135-35010-B1iBZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388200406-200705

main73135-35020-B1iXZU306..5F..DSLL..IV3;XZU301..DSLL..IV3..1NO200210-200406

73150BELT ASSY, FRONT SEAT LAP TYPE, CENTER

main73150-37030-B0iBZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB200406-200705

GRAY,TRIM1#

main73150-37050-B0iXZU301,331..4FC..DSLL..IV4199905-200206

DK.CHARCOAL,TRIM1#

73178ACAP, SEAT BELT ANCHOR COVER

main73178-12040-B4iRZU300..30T..LPG;XZU341..6F..295T;XZU341..(20T,30T)..DSL;XZU301..T4..DSL..(CBU,IV3);XZU301,351,352..SCB..(DM2,DM3,DM6,T3,T5)..DSL;BU30#,346,RZU300,340,XZU300,302,306,307,31#,32#,33#,340,342,346,347,350,362,372,382..SCB..(DSL,EFI); XZU301..IV6..4NO;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301,341..T4..30T..DSLL;BZU300,340,RZU301,XZU311,346..CNG,DSLL,LPG;XZU341,351,352..(DM5,T4)..(4FC,5F)..(20T,295T)200206-200308

main73178-33020-B1iXZU306..5F..DSLL..IV3;XZU301..DSLL..IV3..1NO200210-200308

main73178-33020-P4iBU306,XZU307..VAN200308-200406

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-34030iXZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3199905-200206

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-37110-B0iBZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3; XZU362..1NO;XZU382..SCB..CBU;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..SCB..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,34#,35#,372..SCB; XZU362..4NO;XZU382..SCB..IV3200206-200308

main73210-37120-B0iXZU301..5F..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4;BU30#,RZU300,XZU307,31#,331,347,37#,382..DCB..(DSL,EFI)199905-200406

main73210-37190-B0iXZU301,331..DSLL..IV4200210-200406

main73210-37200-B0iBU306,XZU307..VAN; BZU300,340,XZU362..(DM5,DM6,T4)..(CNG,DSL)200308-200406

main73210-37210-B0iBZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388200406-200705

main73210-37220-B0iBZU300,340..T4..CNG; BZU300..DM6,T3;BZU300..T4..LPG;BZU340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI,LPG200406-200705

73220BELT ASSY, FRONT SEAT OUTER, LH

main73210-37130-B0iXZU301,331..4FC..DSLL..IV4; XZU302..20T;XZU322..T5..5F;XZU322..DM7,DM8;XZU382..SCB..CBU;XZU301..4FC..20T..DSL;XZU302..(DM3,T3,T5)..30T;XZU306,321..(DM7,T4)..4NO;XZU301..SCB..(T3,T5)..4FC;XZU301..(CNG,DSLL,LPG)..IV3;XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;XZU301,306,362..SCB..(DM3,DM6,DM7,T3,T5)..5F..DSL;BU30#,346,RZU300,340,XZU300,307,33#,34#,35#,372..SCB..(DM2,T1,T2,T3,T4,T5)199905-200206

main73210-37140-B0iXZU372,382..SCB;XZU301..30T..IV7;XZU351,352,362..DM2,DM7;XZU301,302,31#,32#..SCB..(DM3,DM5,DM6,DM7,DM8)..(DSL,LPG)..(CBU,IV3,IV7)200206-200304

main73210-37210-B0iXZU304,305,344200310-200406

GRAY,TRIM1#

main73210-37220-B0iXZU301,331..4FC..DSLL..IV4199905-200210

main73220-37010-B0iBZU300,XZU301,304,305..DM6..IV3200406-200705

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-37090-B0iXZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3199905-200206

DK.CHARCOAL,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-37090-B0iBZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB200406-200705

DK.CHARCOAL,TRIM1#

main73230-37140-B0iXZU301,331..DSLL..IV4200210-200406

GRAY,TRIM1#

main73230-37150-B0iXZU301,331..DSLL..IV4200210-200406

main73240-37160-B1iXZU362..1NO;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..SCB..(CNG,DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,372,382..SCB199905-200406

main73240-37170-B0iXZU362..1NO;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..SCB..(DSL,LPG);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,33#,340,341,342,346,347,35#,372,382..SCB..(DSL,DSLL,EFI,LPG)199905-200406

main73240-37180-B0iXZU304,344..T3,T4,T5200310-200406

main73240-37190-B0iXZU301..20T..IV6;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;BU306,346,BZU340,XZU301,306..SCB..(T2,T3,T4,T5)..(DSL,LPG)..(CBU,IV3,IV6);BU301,BZU300,RZU30#,340,XZU300,302,307,322,33#,340,341,342,346,347,350..SCB..(T1,T2,T3,T4,T5)..(DSL,DSLL,EFI,LPG)199905-200406

main73240-37190-B1iXZU301..20T..IV6;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#,354..SCB..(T1,T2,T3,T4,T5)..(DCRL,DSL,DSLL,EFI,LPG)..(CBU,IV3,IV6)200406-200705

main73240-37200-B0iXZU362..4NO;XZU382..SCB..IV3200308-200406

DK.CHARCOAL,TRIM1#

main73240-37210-B0iXZU362..4NO;XZU382..SCB..IV3199907-200206

73252COVER, SHOULDER BELT ANCHOR ADJUST, RH

main73252-37010-B0iXZU306..T5..DSLL;XZU306,322..T5..4FC;XZU301..DM3..4FC..30T;XZU301,302..T4..DSL..1NO;BU301,XZU311,320,321..1NO;XZU31#,321..SCB..(DM5,DM8)..20T199905-200206

MD.CHARCOAL,TRIM1#

9010511036

main90105-11036

9010511038

main90105-11038

9010911027

main90109-11027

9010911048

main90109-11048

9046805017

main90468-05017

91511B0612

main91511-B0612

91512B1020

main91512-B1020

17 parts on this diagram · 6 diagrams in section
