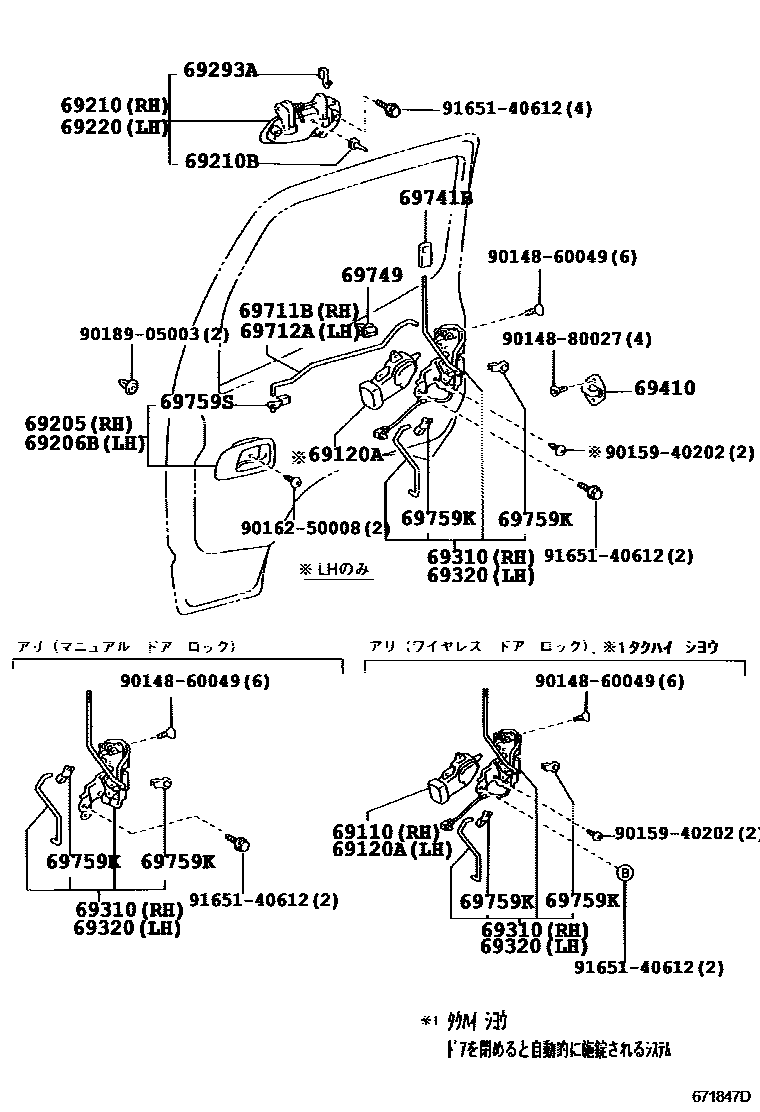

FRONT DOOR LOCK & HANDLE

0001 1 0002 1��(���� �������� = LH)

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-37030iBU30#,346,XZU30#,31#,32#,33#,34#,35#,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7)199905-200206

main69110-37040iRZU300,340,XZU301,302,341,342..CNG,EFI,LPG200005-200206

main69110-37050iBZU300,340,RZU30#,340200206-200406

main69110-37060iXZU306..5F..DSLL..IV3;XZU301..DSLL..IV3..1NO200206-200610

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-37030iBU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL199905-200206

main69120-37040iRZU300,340,XZU301,302,341,342..CNG,EFI,LPG200005-200206

main69120-37050iBZU300,340,RZU30#,340,XZU301,302,341,342..CNG,EFI,LPG200206-200406

main69120-37060iXZU30#,31#,321,33#,34#,35#,368,378,388200206-200406

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-37010-B0iXZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZ199905-200705

MD.CHARCOAL,TRIM1#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-37010-B0iXZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3199905-200705

MD.CHARCOAL,TRIM1#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-37020iXZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZ199905-200406

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04015iBU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3199905-200406

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-37020iXZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZ199905-200406

main69220-37030iBU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3199905-200406

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12050iXZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZ199905-200406

main69293-12050iXZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZ199905-200406

main69293-12060iBU301,BZU300,XZU301,302..DM6..IV3199905-200406

main69293-12060iXZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3199905-200406

69310LOCK ASSY, FRONT DOOR, RH

main69310-37070iXZU354..4NO;BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,351,368,378,388199905-200406

main69310-37080iXZU304,344..T3,T4,T5199905-200406

main69310-37090iXZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZ199905-200406

main69310-37090iBZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388200406

69320LOCK ASSY, FRONT DOOR, LH

main69320-37060iXZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3199905-200406

main69320-37090iBU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3199905-200406

main69320-37110iBZU300,340..T3,T4;RZU30#,340,XZU301,304,306,308,33#,341,346,348,368,378,388..SCB..(T1,T2,T3,T4,T5)..(DSL,EFI,LPG)..(CBU,IV3)199912-200406

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110iXZU304,305..(DM6,T5)..IV3199905-200705

main69410-37020iXZU304,305..(DM6,T5)..IV3199905-200705

69711LINK, FRONT SLIDE DOOR KEY CYLINDER

main69711-37030iXZU301..20T..DSLL199905-200406

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-37010iXZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3199905-200406

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-37010iBZU300,XZU301,304,305..DM6..IV3200406

main69710-37010iBU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3199905-200406

main69712-37010iXZU304,305,344199905-200406

main69712-37040iBZU300,XZU301,304,305..DM6..IV3200406

sub69712-37041

main69712-37040iBU301,BZU300,XZU301,302..DM6..(CNG,DSL,LPG)..IV3199905-200406

sub69712-37041

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-12040-B3iXZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3199905-200705

MD.CHARCOAL,TRIM1#

sub69741-12040

69749CLAMP, FRONT DOOR LOCK LINK

main69749-12070iXZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZ199905-200406

69759KSNAP, DOOR LOCK CONTROL LINK

main69759-20040iXZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3199905-200705

main69759-20050iXZU304,305,344199905-200705

main69759-24010iXZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3199905-200705

main69759-24020iXZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3199905-200705

main69759-95701iXZU301..20T..DSLL199905-200705

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-22040iBZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388199905-200406

main69759-22050iBZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388199905-200406

9014860049

main90148-60049

9014880027

main90148-80027

9015940202

main90159-40202

9016250008

main90162-50008

9018905003

main90189-05003

9165140612

main91651-40612

24 parts on this diagram · 2 diagrams in section
