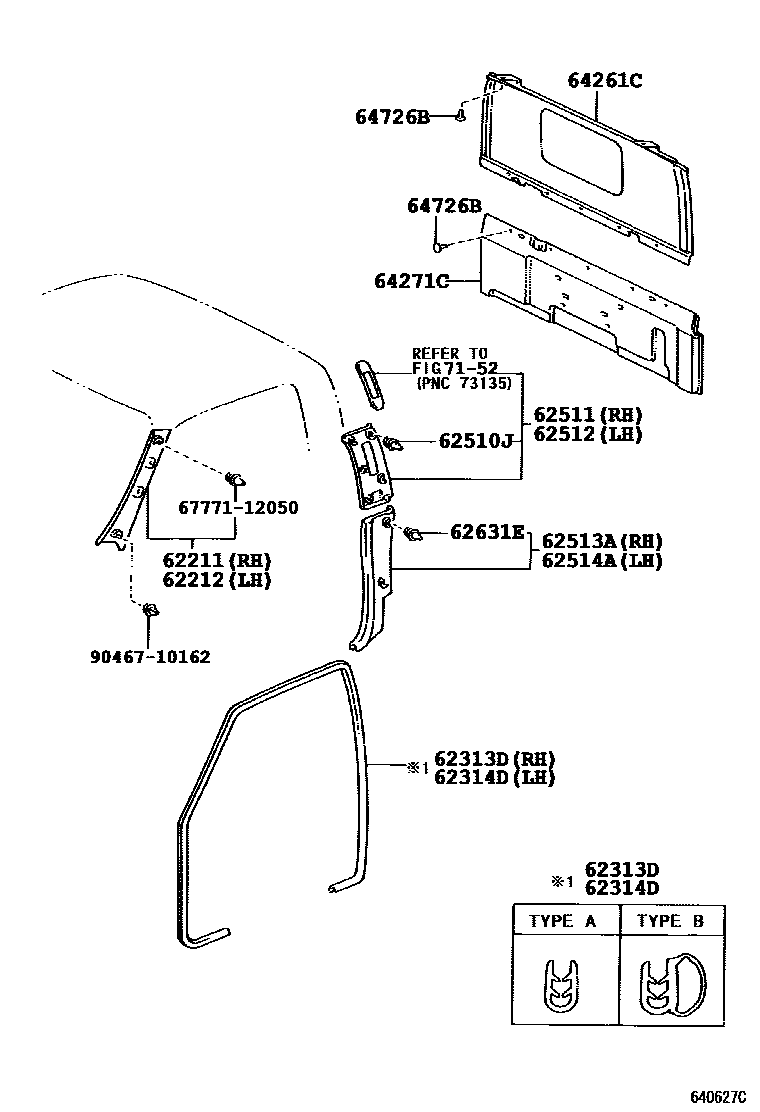

INSIDE TRIM BOARD

0001 1 0002 1 0003 1 0004 1 0005 1

62211GARNISH, FRONT PILLAR, RH

main62211-37010-B0iXZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3200210-200406

MD.CHARCOAL,TRIM1#

main62211-37011-B0iBZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388200607-200705

MD.CHARCOAL,TRIM1#

62212GARNISH, FRONT PILLAR, LH

main62212-37010-B0iBZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388200406-200606

MD.CHARCOAL,TRIM1#

main62212-37011-B0iBZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388200607-200705

MD.CHARCOAL,TRIM1#

62313DTRIM, FRONT DOOR OPENING, RH

main62313-37040-B0iRZU300..20T..LPG;XZU301,302,341,342..CNG,LPG; XZU306..T5..DSLL;XZU306,322..T5..4FC;XZU301..DM3..4FC..30T;XZU301,302..T4..DSL..1NO;BU301,XZU311,320,321..1NO;XZU31#,321..SCB..(DM5,DM8)..20T; XZU311..DCB;XZU347..DCB..T3..4FC;XZU301,331..5F..DSLL..IV4; XZU322..DM7,DM8;XZU302..20T..DSL;XZU301..4FC..20T..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU301,302,311..(DM5,T4)..(295T,30T)..4NO;XZU301,306,322..SCB..(DM3,DM6,T3,T5)..5F..DSL;BU30#,346,RZU300,340,XZU300,307,33#,34#,35#,362,372,382..SCB..(DM2,DM5,DM7,T1,T2,T3,T4,T5)..(DSL,EFI)199905-200206

main62313-37041-B0iBU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382200312-200406

MD.CHARCOAL,TRIM1#

main62313-37050-B0iBU306,346,RZU340,XZU300,306,307,31#,32#,33#..SCB;BU301,RZU300,XZU301,302,34#,351,352,362,372,382..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI)..(CBU,IV3)199905-200206

main62313-37060-B0iBZU300,340,RZU30#,340,XZU304200610-200705

MD.CHARCOAL,TRIM1#

62314DTRIM, FRONT DOOR OPENING, LH

main62313-37040-B0iRZU300..20T..LPG;XZU301,302,341,342..CNG,LPG; XZU306..T5..DSLL;XZU306,322..T5..4FC;XZU301..DM3..4FC..30T;XZU301,302..T4..DSL..1NO;BU301,XZU311,320,321..1NO;XZU31#,321..SCB..(DM5,DM8)..20T; XZU311..DCB;XZU347..DCB..T3..4FC;XZU301,331..5F..DSLL..IV4; XZU322..DM7,DM8;XZU302..20T..DSL;XZU301..4FC..20T..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU301,302,311..(DM5,T4)..(295T,30T)..4NO;XZU301,306,322..SCB..(DM3,DM6,T3,T5)..5F..DSL;BU30#,346,RZU300,340,XZU300,307,33#,34#,35#,362,372,382..SCB..(DM2,DM5,DM7,T1,T2,T3,T4,T5)..(DSL,EFI)199905-200206

main62313-37041-B0iBU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382200312-200406

MD.CHARCOAL,TRIM1#

main62314-37010-B0iBU306,346,RZU340,XZU300,306,307,31#,32#,33#..SCB;BU301,RZU300,XZU301,302,34#,351,352,362,372,382..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI)..(CBU,IV3)199905-200206

main62314-37020-B0iBZU300,340,RZU30#,340,XZU304200610-200705

MD.CHARCOAL,TRIM1#

62510JRETAINER, QUARTER TRIM

main67771-12050×10iBU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,372,382..SCB199905-200310

main90467-10188×10iXZU301..IV7;XZU301..295T;XZU301..IV6..4NO;XZU306..4FC..DSL;XZU301..4FC..(CBU,IV6);XZU301,351..(DM2,DM3)..IV3;XZU321,331,341..SCB..(4FC,6F);XZU301,306,311,346,351..SCB..DSLL;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;BU30#,346,XZU300,302,307,312,322,330,337,340,342,347,350,352,362,372,382..SCB; XZU301..T4..5F..DSL..CBU;XZU306,321,331,341..SCB..5F..DSL;XZU301..(DM6,T3,T4,T5)..5F..(20T,30T)..DSL..IV3;XZU301,351..(DM2,DM3,DM6,T3,T5)..5F..(20T,30T)..(CBU,IV6);BZU300,340,RZU30#,340,XZU311,346,351..SCB..(DM5,DM6,T2,T3,T4)..(CNG,DSL,EFI,LPG); XZU304,305,344200310-200406

62511BOARD, QUARTER INSIDE TRIM, RH

main62511-37010-B0iXZU306..5F..DSLL..IV3;XZU301..DSLL..IV3..1NO200210-200406

MD.CHARCOAL,TRIM1#

main62511-37011-B0iBZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB200608-200705

MD.CHARCOAL,TRIM1#

62512BOARD, QUARTER INSIDE TRIM, LH

main62512-37010-B0iBZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB200406-200607

MD.CHARCOAL,TRIM1#

main62512-37011-B0iBZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB200608-200705

MD.CHARCOAL,TRIM1#

62513APANEL, QUARTER TRIM, LOWER RH

main62513-37010-B0iXZU306..T5..DSLL;XZU312..SCB..20T;XZU306,322..T5..4FC;XZU347..DCB..T3..4FC;XZU301..DM3..4FC..30T;XZU301,302..T4..DSL..1NO;BU301,XZU311,320,321..1NO;XZU301,331..5F..DSLL..IV4;XZU311,321..(DM5,DM8)..20T199905-200206

MD.CHARCOAL,TRIM1#

62514APANEL, QUARTER TRIM, LOWER LH

main62514-37010-B0iXZU306..T5..DSLL;XZU312..SCB..20T;XZU306,322..T5..4FC;XZU347..DCB..T3..4FC;XZU301..DM3..4FC..30T;XZU301,302..T4..DSL..1NO;BU301,XZU311,320,321..1NO;XZU301,331..5F..DSLL..IV4;XZU311,321..(DM5,DM8)..20T199905-200206

MD.CHARCOAL,TRIM1#

main62514-37020-B0iXZU301..20T..(CNG,LPG)199905-200306

62631ERETAINER, QUATER TRIM

main67771-12050×4iBU30#,346,BZU300,340,RZU30#,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382199905-200308

main90467-10161×4iXZU301..295T;XZU301..IV4,IV7;XZU331..5F..IV4;XZU306..4FC..DSL;XZU301..IV6..4NO;XZU301..4FC..(CBU,IV6);XZU321,331,341..4FC,6F;XZU301,351..(DM2,DM3)..IV3;XZU301,306,311,346,351..SCB..DSLL;XZU301..(DM6,T3,T4,T5)..4FC..DSL..IV3;BU30#,346,XZU300,302,307,312,322,330,337,340,342,347,350,352,362,37#,382; XZU301..T4..5F..DSL..CBU;XZU306,321,331,341..SCB..5F..DSL;XZU301..(DM6,T3,T4,T5)..5F..(20T,30T)..DSL..IV3;XZU301,351..(DM2,DM3,DM6,T3,T5)..5F..(20T,30T)..(CBU,IV6);BZU300,340,RZU30#,340,XZU311,346,351..(DM5,DM6,T2,T3,T4)..(CNG,DSL,EFI,LPG); XZU304,305,344200310-200406

64261CGARNISH, BACK PANEL, UPPER

main64261-37010-B0iXZU306,322..T5..4FC;XZU301..T3..(IV6,IV7);XZU301..DM3..4FC..30T;XZU31#,321..SCB..(DM5,DM8)..20T;BU30#,346,RZU300,340,XZU320,350..SCB;XZU301,302,306,341,342..(CNG,DSLL,LPG)..IV3;XZU301,302,311,321..(DM5,DM6,DM7,T4)..DSL..1NO199905-200206

MD.CHARCOAL,TRIM1#

main64261-37020-B0iXZU382..SCB..IV3199907-200206

64271CTRIM, BACK PANEL

main64271-37010-B0iXZU362..1NO;BU30#,346,XZU30#,31#,32#,33#,34#,35#,372,382..SCB199905-200001

MD.CHARCOAL,TRIM1#

main64271-37011-B0iXZU302..20T;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..CNG,LPG;XZU301..4FC..20T..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;XZU306,321..(DM7,T4)..DSL..4NO;XZU301,302,31#..(DM5,T4)..(295T,30T)..4NO;XZU301,306,362..SCB..(DM3,DM6,DM7,T3,T5)..5F..DSL;BU30#,346,RZU300,340,XZU300,307,33#,34#,35#,372,382..SCB..(DM2,DM5,T1,T2,T3,T4,T5)200001-200207

MD.CHARCOAL,TRIM1#

main64271-37012-B0iRZU300..20T..LPG;XZU301,302,341,342..CNG,LPG200207-200306

MD.CHARCOAL,TRIM1#

main64271-37020-B0iXZU306,322..T5..4FC;XZU301,302..T4..DSL..1NO;XZU301,306..(T3,T4,T5)..DSLL..IV3199905-200206

main64271-37021-B0iRZU300..30T..LPG;XZU301..20T..IV6;XZU301..DSLL..4NO;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301,306..(T3,T4,T5)..DSL..(CBU,IV3,IV6);RZU300,XZU302,341,342..SCB..(T2,T3,T4,T5)..(DSL,DSLL,EFI);BU30#,346,BZU300,340,RZU301,340,XZU300,307,322,33#,340,346,347,350..SCB..(T1,T2,T3,T4,T5)200207-200406

main64271-37030-B0iXZU362..4NO; XZU382..SCB..IV3199907-200406

main64271-37050-B0iBU301,XZU301,302..20T..IV3..1NO199905-200001

main64271-37051-B0iXZU301,302..20T..(CNG,DSL,LPG)..IV3..1NO200001-200207

main64271-37052-B0iXZU301..20T..DSLL200210-200406

main64271-37100-B0iXZU306..T5..DSLL;XZU306,322..T5..4FC;XZU301..DM3..4FC..30T;XZU301,302..T4..DSL..1NO;BU301,XZU311,320,321..1NO;XZU31#,321..SCB..(DM5,DM8)..20T199905-200206

main64271-37101-B0iXZU306..5F..DSLL..IV3;XZU301..DSLL..IV3..1NO200210-200406

main64271-37110-B0iXZU301,302..20T..(CNG,DSL,LPG)..IV3..1NO199905-200207

main64271-37111-B0iBZU300,XZU302..DM6;XZU301..20T..DSL..IV3..1NO200207-200406

main64271-37140-B0iXZU301,304,306,308,31#,321,33#,34#,35#..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3)200408-200605

MD.CHARCOAL,TRIM1#

main64271-37150-B0iXZU368,378,388..SCB200408-200605

MD.CHARCOAL,TRIM1#

main64271-37460-B0iXZU301,304,306,308,31#,321,33#,34#,35#..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3)200605-200610

MD.CHARCOAL,TRIM1#

main64271-37470-B0iXZU368,378,388..SCB200605-200610

MD.CHARCOAL,TRIM1#

64726BCLIP, DECK REAR TRIM

main64726-37010-B0×9iXZU306,322..T5..4FC;XZU301,306..DSLL..IV3;XZU301..DM3..4FC..30T;XZU301,302..T4..DSL..1NO;BU301,XZU311,320,321..1NO;XZU31#,321..SCB..(DM5,DM8)..20T; XZU306..T5..DSLL;BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,372,382..SCB..(CNG,DSL,EFI,LPG)199905-200206

7152SEAT BELT

→ Go to FIG 71-52

6777112050WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12050

9046710162

main90467-10162

16 parts on this diagram · 5 diagrams in section
