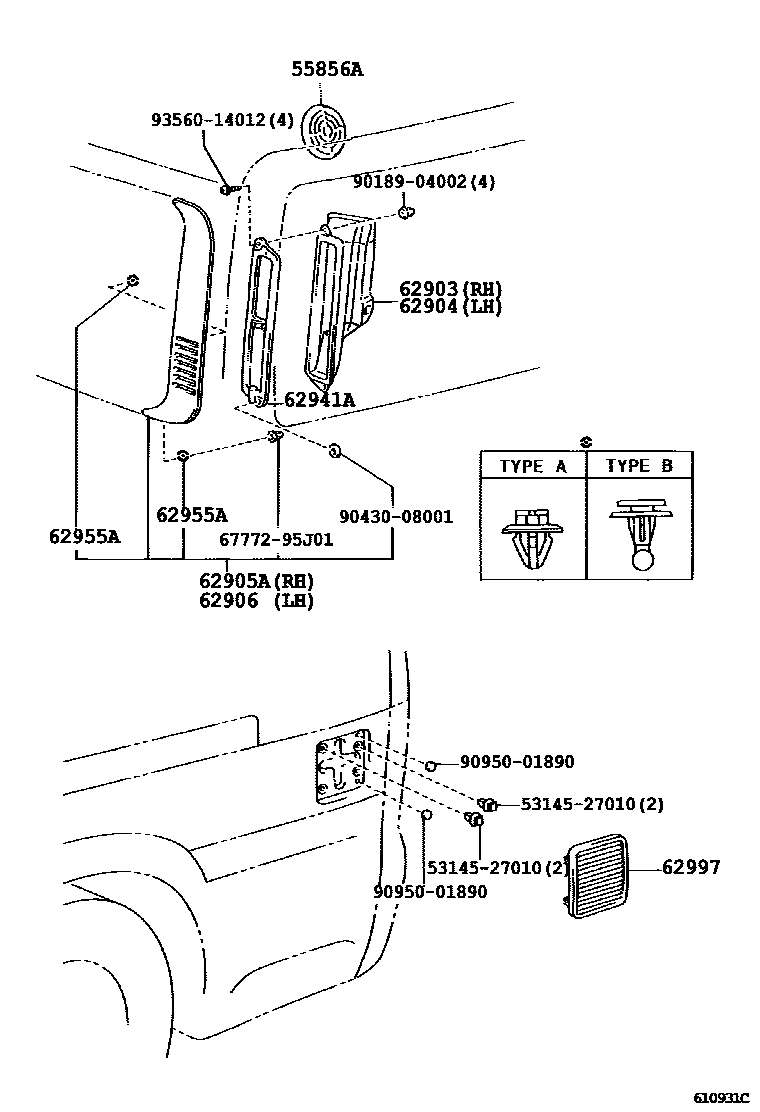

REAR VENTILATOR & ROOF VENTILATOR

55856ALOUVER, REAR VENTILATOR

main55856-95J00-B1×2iBU306,XZU307..VAN199905-200406

LT. BLUISH GRAY,TRIM1#

62903DUCT SUB-ASSY, QUARTER VENTILATOR, RH

main62903-95J00iBU306,XZU307..VAN199905

62904DUCT SUB-ASSY, QUARTER VENTILATOR, LH

main62904-95J00iBU306,XZU307..VAN199905

62905ALOUVER, QUATER VENTILATION, RH

main62905-26030iBU306,XZU307..VAN200106

main62905-95J00iBU306,XZU307..VAN199905-200106

62906LOUVER, QUATER VENTILATION, LH

main62906-26030iXZU306,308..VAN200406-200610

main62906-95J00iBU306,XZU307..VAN199905-200106

62941ARETAINER, QUARTER VENT DUCT

main62941-95J01iBU306,XZU307..VAN199905

main62942-95J01iBU306,XZU307..VAN199905

62955ARETAINER, QUARTER VENT LOUVER

main62955-26010×2iBU306,XZU307..VAN199905

main90467-10077×6iXZU306,308..VAN200406-200610

62997COVER, QUARTER VENT HOLE

main62997-37010iXZU306,308..VAN200406-200610

5314527010BRACKET,RADIATOR GRILLE MOUNTING, RH

main53145-27010

6777295J01WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-95J01

9018904002

main90189-04002

9043008001

main90430-08001

9095001890

main90950-01890

9356014012

main93560-14012

14 parts on this diagram · 1 diagram in section
