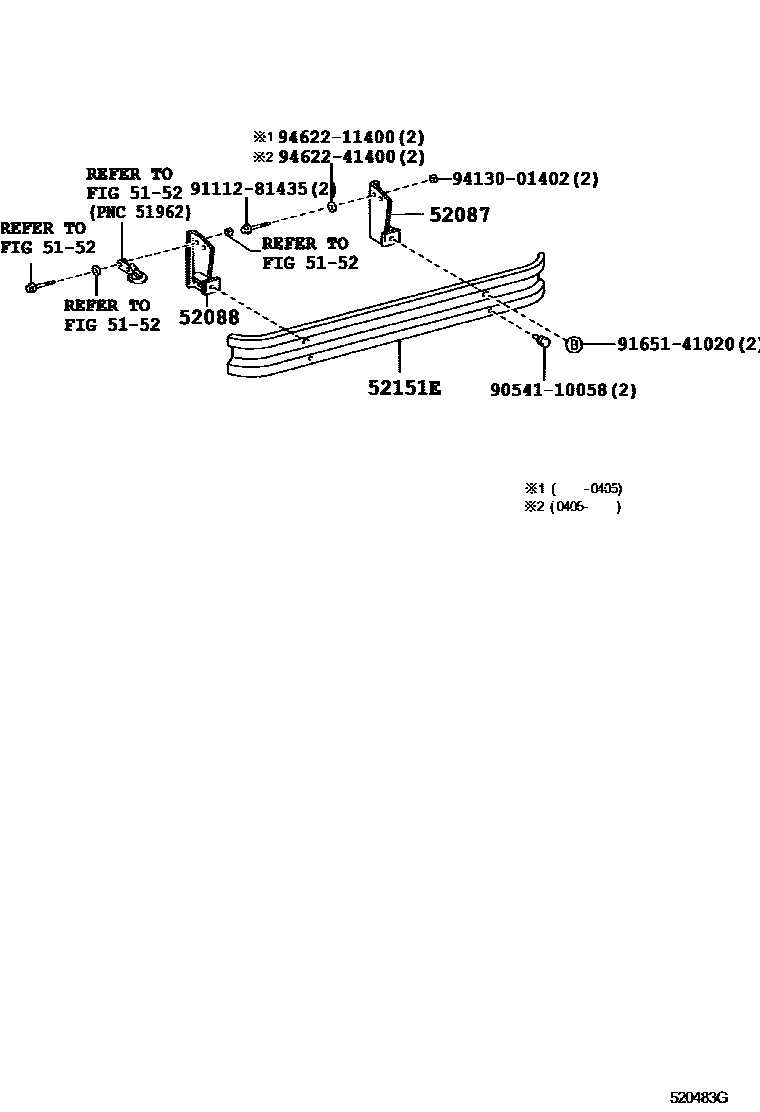

REAR BUMPER & BUMPER STAY

0001 1TYPE A 0003 1TYPE B 0004 1TYPE C 0006 1TYPE D 0009 1BZU340,XZU341,344,38#;����� �0012 1 0013 1 0015 1 0016 1�������� ������� 0017 1������� �������

5152SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-52

52087STAY SUB-ASSY, REAR BUMPER SIDE, RH

main52087-37120iBU346,XZU33#,34#,372,382..(T3,T4)..CBU199905-200003

main52087-37121iBZU340..CNG;XZU347..DCB..5F..CBU;XZU347..SCB..(T3,T4)..CBU;XZU347..DCB..T4..4FC..CBU;BU346,BZU340,RZU340,XZU33#,340,341,342,346,372,382..(T3,T4)..CBU200003-200406

main52087-37130iXZU301..T3..LPG200206-200306

main52087-37140iXZU301,302..T4..CBU..1NO199905-200206

main52087-37150iBU346,XZU337,347..T2..CBU199905-200406

main52087-37170iXZU302..CNG200206-200306

main52087-37180iBZU300,RZU30#..SCB..20T..CBU200406-200505

main52151-37060iXZU341..LPG199905-200306

main52151-37200iBZU300,RZU30#,XZU301,304,306,308..(T2,T4)..20T..(DCRL,DSL,DSLL,EFI,LPG)..IV3200505

main52151-37210iXZU378..20T..IV3;XZU378..30T..DCRL;XZU334..DCRL..CBU;XZU334,336,338..IV3;BZU300,RZU300..T4..30T;BZU340,RZU340,XZU331,34#,388;XZU301,304,306,308..T5..20T..IV3;XZU301,304,368..(T4,T5)..30T..IV3200505

main52151-37220iBZU300,RZU300,XZU301,304..T3..(CBU,IV3);BZU300,XZU368..T4..20T..(CNG,DCRL,DSL)..IV3200505

52088STAY SUB-ASSY, REAR BUMPER SIDE, LH

main52087-37170iXZU302..CNG200206-200306

main52088-37120iBU346,XZU33#,34#,372,382..(T3,T4)..CBU199905-200003

main52088-37121iXZU347..DCB..T3..4FC..CBU200003-200206

main52088-37130iXZU301..5F..DSL..IV4199905-200403

main52088-37140iRZU300..LPG;BZU300,RZU300..T4..30T..CBU200406-200505

main52088-37150iXZU336,338,346,348..T2..CBU200406-200505

main52088-37170iRZU300,XZU302..20T..LPG200206-200306

main52152-37040iXZU344..30T200310-200406

main52152-37080iBZU300,RZU30#,XZU301,304,306,308..(T2,T4)..20T..(DCRL,DSL,DSLL,EFI,LPG)..IV3200505

main52152-37090iXZU378..20T..IV3;XZU378..30T..DCRL;XZU334..DCRL..CBU;XZU334,336,338..IV3;BZU300,RZU300..T4..30T;BZU340,RZU340,XZU331,34#,388;XZU301,304,306,308..T5..20T..IV3;XZU301,304,368..(T4,T5)..30T..IV3200505

main52152-37100iBZU300,RZU300,XZU301,304..T3..(CBU,IV3);BZU300,XZU368..T4..20T..(CNG,DCRL,DSL)..IV3200505

52151EBAR, REAR BUMPER

main52105-37030iXZU334..40T;BZU340,XZU341,344,388..30T,35T200406-200505

main52105-37180iBZU300,RZU30#,XZU301,304,306,308,334,336,338,368..(T2,T4,T5)..IV3200505-200705

main52105-37190iXZU331,378..IV3;XZU334..DCRL..IV3;BZU340,RZU340,XZU34#,388;BZU300,RZU300,XZU301,304..T3..(CBU,IV3)200505-200705

main52105-37200iXZU331,334,378..30T..CBU200505-200610

main52105-37280iRZU300..LPG;BZU300,RZU300..T4..30T..CBU200505-200705

main52151-37030iXZU301..T3..LPG200206-200406

main52151-37150iBZU300..T4..CNG;RZU300..DCB..CBU200406-200505

main52151-92805iBZU340..CNG;BZU300,RZU300,XZU300,301,302..SCB..(T2,T4)..CBU..1NO;BU346,BZU340,RZU301,340,XZU33#,340,341,342,346,347,372,382..CBU199905-200406

9054110058

main90541-10058

9111281435

main91112-81435

9165141020

main91651-41020

9413001402

main94130-01402

9462211400

main94622-11400

9462241400

main94622-41400

10 parts on this diagram · 10 diagrams in section
