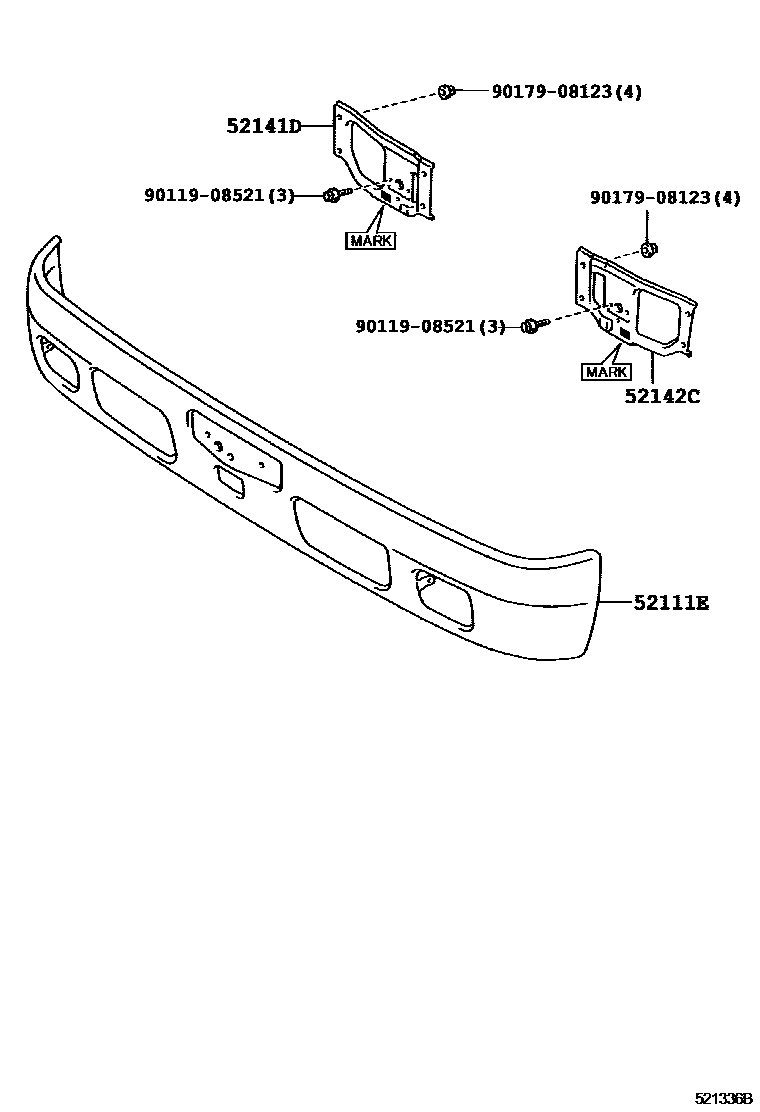

FRONT BUMPER & BUMPER STAY

0001 1���� ���� 0002 1���� ���� ��(���� �����) 0003 1 0004 1���� ����

52111EBAR, FRONT BUMPER

main52101-37130-A0iXZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..4NO;XZU306..4FC..DSLL..IV3;XZU301,306..(T3,T4,T5)..(DSL,LPG)..(CBU,IV3);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,322,33#,340,341,342,346,347,362..(03S,06S,T1,T2,T3,T4,T5)..(CBU,IV3)199905-200406

main52101-37130-B0iXZU306..5F..DSLL..IV3;XZU301..30T..DSLL..IV3..1NO200210-200406

main52101-37130-B1iXZU308,348,388..SCB..T4..5F..IV3;BZU300,340,RZU30#,340,XZU301,304,306,334,336,341,368..SCB..T4..(4FC,5F)..20T..(CNG,DSL,EFI,LPG)..IV3200406-200505

main52101-37130-H0iXZU306..5F..DSLL..IV3;XZU301..30T..DSLL..IV3..1NO200210-200406

main52101-37130-J1iXZU378,388..SCB;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#,368..(03S,06S,T1,T2,T3,T4,T5)..(CBU,IV3)200406-200505

main52101-37131-A0iXZU378,388..SCB;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#,368..(T1,T2,T3,T4,T5)..(CBU,IV3)200505-200705

main52101-37131-B0iBZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#,368,378,388..SCB..(T1,T2,T3,T4,T5)..(CBU,IV3)200505-200705

main52101-37131-B1iXZU308,348,388..SCB..T4..5F..IV3;BZU300,340,RZU301,340,XZU301,304,334,336,341,368..T4..(4FC,5F)..20T..(CNG,DSL,EFI,LPG)..IV3200505-200705

main52101-37131-H0iXZU378,388..SCB;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#,368..(T1,T2,T3,T4,T5)..(CBU,IV3)200505-200705

main52101-37131-J1iXZU378,388..SCB;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#,368..(T1,T2,T3,T4,T5)..(CBU,IV3)200505-200705

main52101-37140iXZU301,306..(T3,T4)..DSLL..IV3199905-200206

main52101-37141iXZU378,388..SCB;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#,368..(03S,06S,T1,T2,T3,T4,T5)..(CBU,IV3)200505-200705

main52101-37170-A0iXZU331..DSL;XZU382..SCB..IV3;XZU306..DSLL..CBU;XZU347..DCB..T3..4FC;XZU301..4FC..30T..DSL;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301..5F..30T..DSL..IV3;XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..30T..(CBU,IV4,IV6,IV7);XZU301,306..(20T,295T)..(CNG,DSL,LPG);XZU311,341,362..(DM5,T3,T4)..(DSL,DSLL);BU30#,346,RZU300,340..SCB..(DM6,T3,T4)..20T..IV3;BZU300,340,RZU301,XZU300,302,307,312,32#,330,337,340,342,346,347,35#..SCB199905-200406

WHITE,058

main52101-37170-B0iXZU304,344..T3,T4,T5;XZU304..20T..DCRL..1NO200310-200406

SILVER ME.,199

main52101-37170-B1iBU346..T4..IV3;BU306,XZU382..SCB..(T2,T3)..IV3200011-200206

JORSEY CREAM,9A7

main52101-37170-D0iXZU301,331..IV4199908-200109

RED,391

main52101-37170-D1iXZU301..5F..IV4;XZU331..DSL..IV4;XZU331..5F..DSLL;XZU301..4FC..DSL..IV4200109-200406

RED,3L5

main52101-37170-H0iXZU304,305,344200310-200406

TURQUOISE,766

main52101-37170-J1iBZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCB,SCB200406-200505

BLUE,8P0

main52101-37171-A0iBZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCB,SCB200505-200705

WHITE,058

main52101-37171-B0iBZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#,354,368,378,388..SCB..(T1,T2,T3,T4,T5)200505-200705

SILVER ME.,199

main52101-37171-B1iXZU308,348,388..SCB..T4..5F..IV3;BZU300,340,RZU301,340,XZU301,304,334,336,341,368..T4..(4FC,5F)..20T..(CNG,DSL,EFI,LPG)..IV3200505-200705

JORSEY CREAM,9A7

main52101-37171-D1iXZU304,334,378..IV4200505-200610

RED,3L5

main52101-37171-H0iBZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..(DCB,SCB)..(CBU,IV3,IV6,IV7)200505-200705

TURQUOISE,766

main52101-37171-J1iBZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..(DCB,SCB)..(CBU,IV3,IV6,IV7)200505-200705

BLUE,8P0

main52101-37180iBZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388200406-200505

main52101-37181iBZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388200505-200705

main52101-37190-A0iXZU372,382..T3..20T200306-200406

main52101-37190-B0iXZU372,382..SCB199907-200406

main52101-37190-B1iXZU382..30T..IV3200011-200206

main52101-37190-D0iXZU371199908-200109

main52101-37190-D1iXZU371200109-200406

main52101-37190-H0iXZU372,382..T3..20T199907-200206

main52101-37190-J1iXZU372,382..T3..20T199907-200206

main52101-37200iXZU362,37#,382..1NO199907-200406

main52101-37530iXZU362,372,382..1NO200206-200406

main52111-37300iXZU306..5F..DSLL..IV3;XZU301..30T..DSLL..IV3..1NO200210-200406

52141DSTAY, FRONT BUMPER, RH

main52141-37100iXZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3199905-200206

main52141-37110iXZU382..SCB..IV3;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301,341..T4..30T..DSLL;XZU341,362..(DM5,T4)..(4FC,5F)..(20T,295T);BZU300,340,RZU301,XZU346..(T3,T4)..(CNG,DSLL,LPG)199907-200406

main52141-37120iXZU306..5F..DSLL..IV3;XZU301..30T..DSLL..IV3..1NO200210-200406

52142CSTAY, FRONT BUMPER, LH

main52142-37080iXZU301,331..4FC..DSLL;XZU301,306..(DM6,T3,T4)..5F..DSLL..IV3199905-200206

main52142-37090iXZU306..5F..DSLL..IV3;XZU301..30T..DSLL..IV3..1NO200210-200406

main52142-37100iXZU378,388..DCB200406-200610

MARK = L3

9011908521

main90119-08521

9017908123

main90179-08123

5 parts on this diagram · 4 diagrams in section
