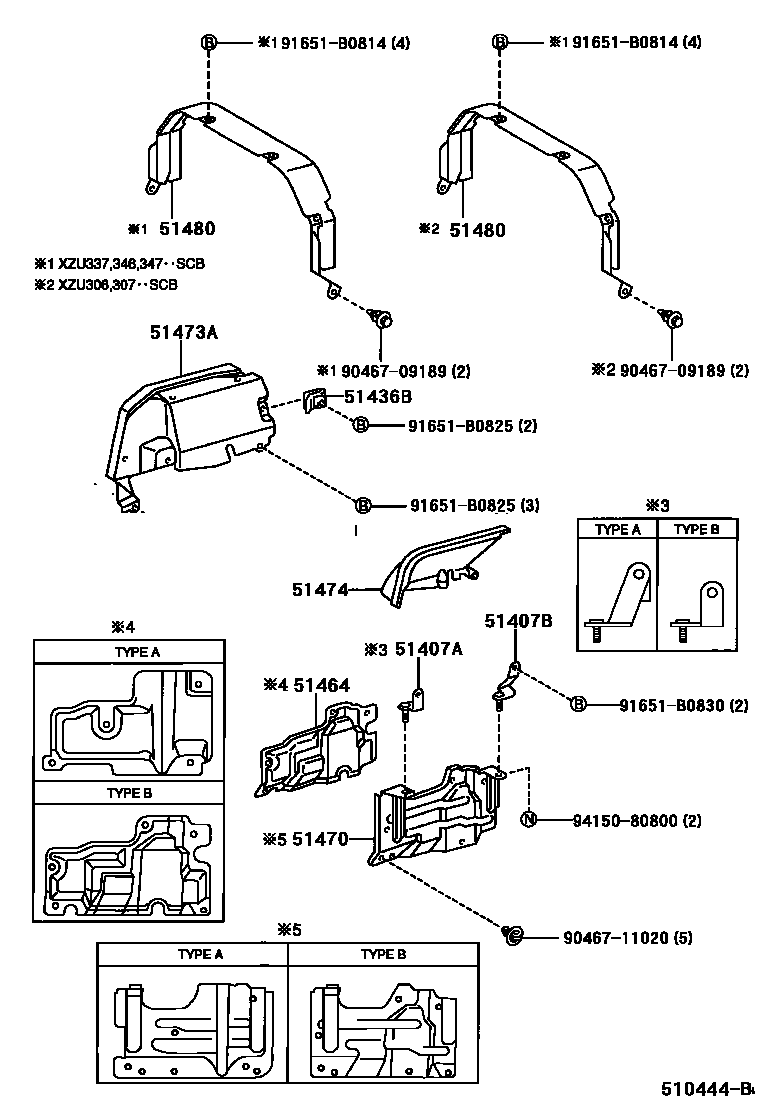

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0004 1 0005 1������ 0006 1 0011 1 0013 1 0015 1 0016 1 0018 1 0019 1 0020 1 0021 1 0022 1 0023 1 0025 1 0026 1 0027 1 0028 1 0029 1 0030 1 0031 1 0032 1 0033 1 0034 1��� 0035 1���

51407ACOVER SUB-ASSY, ENGINE UNDER, NO.3

main51407-37050iXZU362,37#,382199907-200206

main51407-37060iXZU302..DM3,DM6;XZU302..4FC..4NO;XZU306,307..SCB..IV3;XZU347..DCB..5F..IV3;XZU307..DCB..4FC..IV3;XZU306,307..(DCB,SCB)..4FC..CBU;XZU301..(DM3,DM6)..5F..(CBU,IV7);XZU302..(T3,T4,T5)..5F..WT..DSL..IV3;XZU300,301,350..5F..(DSL,DSLL)..(IV3,IV6);XZU301,331,337,341,347..4FC..(CBU,IV3,IV6)200005-200108

main51407-37070iXZU30#,33#,34#..(03S,T2,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV4,IV7)200007-200108

main51407-37080iXZU31#,351,352199905-200108

main51407-37100iXZU32#..5F200108-200206

51407BBRACKET SUB-ASSY, ENGINE UNDER COVER

main51407-37090iXZU331..4FC;XZU301,31#..DCB;XZU307,331,347..(DCB,VAN)..5F;XZU301,302,306,307,312,337,341,347..4FC..(CBU,IV3,IV6)199905-200108

main51407-37110iXZU32#..5F199905-200206

main51407-37140iXZU362,37#,382199907-200206

51436BBRACKET, ENGINE SIDE COVER, NO.1 RH

main51436-37080×2iXZU301,331..DSLL..1NO;XZU306..5F..DSLL..IV3200210-200406

51464SILENCER, TRANSMISSION UNDER, LH

main51464-37040iXZU301..5F..30T..IV6;XZU301..(T3,T4,T5)..(DSL,DSLL)..(CBU,IV3,IV4,IV7);XZU300,302,306,307,33#,34#,350..(03S,T2,T3,T4,T5)..(DSL,DSLL)199905-200007

main51464-37050iXZU302..(DM3,DM6)..5F;XZU31#,32#,351,352..SCB..5F;XZU301..(DM3,DM6)..5F..(CBU,IV7);XZU302..(T3,T4,T5)..5F..WT..DSL..IV3;XZU300,301,306,307,350..SCB..5F..(DSL,DSLL)..(IV3,IV6)200108-200206

main51464-37060iXZU362,37#,382199907-200206

51470COVER ASSY, TRANSMISSION UNDER

main51470-37070iXZU301,350..5F..(30T,40T)..IV6199905-200007

main51470-37080iXZU362,37#,382199907-200206

main51470-37100iXZU301..20T..IV7200005-200206

main51470-37110iXZU32#..5F199905-200206

main51470-37170iRZU300..SCB..EFI;BZU340,RZU301..5F..LPG;BZU300,RZU340,XZU301,304,306,308,33#,341,346,348..(SCB,VAN)..(03S,06S,T1,T2,T3,T4,T5)..5F..(DSL,EFI,LPG)..(CBU,IV3)200406

main51470-37180iXZU306..(DCB,VAN)..5F..CBU;RZU300,XZU304,308,346..(DCB,VAN)..5F..(CBU,IV3);XZU301,304,306..(T2,T3,T4,T5)..5F..WT..DSL..(IV3,IV6);BZU300,XZU301,311,351..(DM2,DM3,DM5,DM6)..5F..(DSL,LPG)200406

main51470-37200iXZU368,378,388..DSL200406-200610

main51470-37220iXZU321200406-200610

main51470-37270iBZU300,XZU31#,351,352..(DM2,DM5,DM6)..5F..(DSL,DSLL,LPG); RZU300,XZU347..DCB..5F;XZU301..DSLL..IV3..4NO;XZU307..(DCB,VAN)..5F..CBU;XZU301,302..(DM3,DM6)..5F..DSL;XZU300,301,302,306,307,350..(T2,T3,T4,T5)..5F..WT..DSL..(IV3,IV6)200206-200406

main51470-37280iXZU32#..5F200206-200406

main51470-37290iXZU306..5F..DSLL..IV3;XZU301..30T..DSLL..IV3..1NO200210-200406

51473ACOVER SUB-ASSY, ENGINE SIDE, RH

main51473-37090iXZU362,37#,382..1NO199907-200406

main51473-37100iXZU362..4NO; XZU382..SCB..IV3199907-200406

main51473-37120iXZU300,320,330,340,350199906-200406

main51473-37130iBU306,346,XZU307,337,346,347199905-199906

main51473-37131iXZU306..5F..DSLL..IV3200210-200406

main51473-37180iXZU304,305,344200310-200406

main51473-37191iXZU362,372,382..SCB..(T3,T4)..IV3199908-200406

main51473-37200iXZU378,388..SCB;XZU306,308,336,338,346,348,368200406-200610

main51473-37210iXZU378,388..DCB200406-200610

51474COVER SUB-ASSY, ENGINE SIDE, LH

main51474-37090iXZU306..5F..DSLL..IV3200210-200310

main51474-37091iXZU306,308,336,338,346,348,368,378,388200406-200610

main51474-37100iXZU362,37#,382..1NO199907-200406

main51474-37110iXZU362..4NO; XZU382..SCB..IV3199907-200406

main51474-37120iXZU301,331..DSLL..1NO200210-200406

main51474-37130iXZU300,320,330,340,350199906-200406

main51474-37161iXZU362,372,382..SCB..(T3,T4)..IV3199908-200406

51480SHUTTER ASSY, ENGINE REAR SIDE, RH

main51480-37010iXZU301..(T4,T5)..CBU;XZU304..DCRL..CBU..4NO;XZU301..(T3,T4,T5)..IV3;XZU304..(T3,T4,T5)..DCRL..IV3;XZU304,306,308..SCB..(T1,T2,T3,T4,T5)..(DSL,DSLL)..(CBU,IV3)200406-200610

main51480-37020iRZU301..4FC;XZU341,342..DSL,DSLL;XZU300,301,302..T3..CBU;BU346,RZU300,XZU33#,340,346,347..SCB..(DSL,DSLL,LPG)200209-200406

main51480-37030iXZU311..DSLL200210-200406

main51480-37040iRZU301..5F..IV3200406-200505

9046709189

main90467-09189

9046711020

main90467-11020

91651B0814

main91651-B0814

91651B0825

main91651-B0825

91651B0830

main91651-B0830

9415080800

main94150-80800

14 parts on this diagram · 26 diagrams in section
