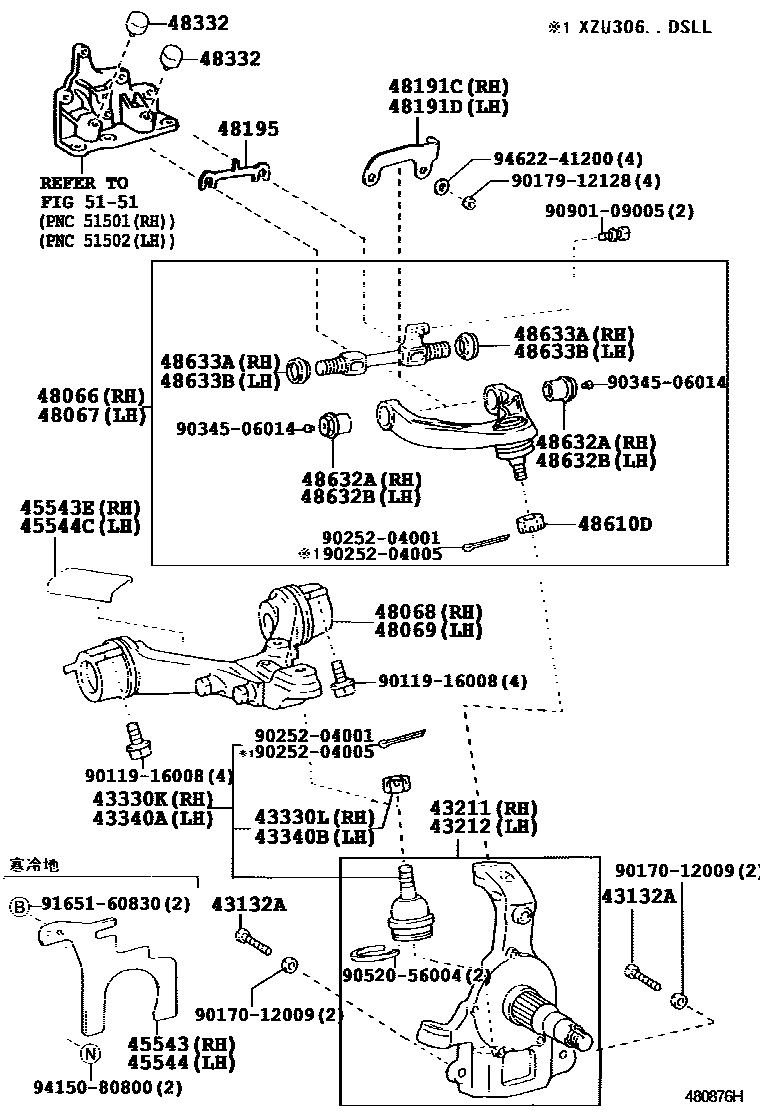

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

43132ABOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT)

main90106-12001×2iXZU330,340,350..35T,40T200206-200406

main90106-12008×2iBZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#..175T,20T,30T200406

main90106-12015×4iXZU306..T4..DSLL200103-200206

main90106-12022×4iBU306,346,XZU306,307,337,346,347199905-200102

43211KNUCKLE, STEERING, RH

main43201-37031iBZU300;RZU300..30T..LPG;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301..4FC..20T..4NO;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..(DM3,T4)..5F..4NO;XZU302..T4..(295T,30T)..4NO;RZU300,XZU341,342..DSL,DSLL,EFI;BU301,BZU340,RZU301,340,XZU300,330,331,340..(T1,T3,T4,T5)..(175T,20T,30T)..(CNG,DSL,EFI,LPG); XZU322..T5..4FC;XZU312..SCB..20T;XZU301..DM3..4FC..30T;XZU301,331..5F..DSLL..IV4;XZU301,302,341,342..CNG,LPG;BU301,XZU320,351,352..(DM5,DM6,DM7)..5F;XZU301,302,311,321..(DM5,DM7,T4)..DSL..1NO;RZU300,XZU311,321..(DM5,DM8,T4)..20T..(DSL,LPG)199905-200406

main43201-37051iXZU330,340,350..35T,40T200307-200406

main43201-37072iBU306,346,XZU306,307,337,346,347199905-200206

main43201-37073iXZU306..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347200206-200311

main43201-37074iBU306,346,XZU306,307,337,346,347200311-200406

main43201-37110iBZU300,340,RZU30#,340,XZU304200610-200705

main43211-37060iXZU362,37#,382199907-200406

main43211-37110iXZU368,378,388200406-200610

43212KNUCKLE, STEERING, LH

main43202-37031iXZU31#,32#;XZU352..4FC;XZU351,352..DM2200311-200406

main43202-37051iXZU330,340,350..35T,40T199906-200306

main43202-37072iBU306,346,XZU306,307,337,346,347199905-200206

main43202-37073iXZU306..5F..DSLL..IV3200210-200311

main43202-37074iBU306,346,XZU306,307,337,346,347200311-200406

main43202-37110iBZU300,340,RZU30#,340,XZU304200610-200705

main43212-37060iXZU362,37#,382199907-200406

main43212-37110iXZU368,378,388200406-200610

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-39515iXZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347199905-200311

main43330-39765iBU306,346,XZU306,307,337,346,347200311-200406

main43330-89015iXZU368,378,388200406-200610

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-20001iBU306,346,XZU306,307,337,346,347199905-200406

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-39515iXZU306..DSL;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346,347199905-200311

main43330-39765iBU306,346,XZU306,307,337,346,347200311-200406

main43330-89015iXZU368,378,388200406-200610

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-20001iBU306,346,XZU306,307,337,346,347199905-200406

45543PROTECTOR, STEERING RACK BOOT, RH

main45543-37010iBU306,346,XZU306,307,337,346,347..DSL199905-200210

main45543-37020iXZU368,378,388200406-200610

45543EPROTECTOR, STEERING RACK BOOT,RH NO.2

main45544-37010iXZU306,308,336,338,346,348,368,378,388200406-200610

45544PROTECTOR, STEERING RACK BOOT, LH

main45543-37010iBU306,346,XZU306,307,337,346,347..DSL199905-200210

main45543-37020iXZU368,378,388200406-200610

45544CPROTECTOR, STEERING RACK BOOT, LH NO.2

main45544-37010iBU306,346,XZU306,307,337,346,347..DSL199905-200210

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48066-39065iBU306,346,XZU306,307,337,346,347199905-200206

main48066-39075iBU306,346,XZU306,307,337,346,347..DSL200206-200210

main48066-89015iXZU368,378,388200406-200610

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48067-39065iBU306,346,XZU306,307,337,346,347199905-200206

main48067-39075iBU306,346,XZU306,307,337,346,347..DSL200206-200210

main48067-89015iXZU368,378,388200406-200610

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48620-37030iBU306,346,XZU306,307,337,346,347199905-200206

main48620-37040iBU306,346,XZU306,307,337,346,347..DSL200206-200210

main48620-37050iXZU368,378,388200406-200610

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48640-37030iBU306,346,XZU306,307,337,346,347199905-200206

main48640-37040iBU306,346,XZU306,307,337,346,347..DSL200206-200210

main48640-37050iXZU368,378,388200406-200610

48191CPLATE, FRONT SUPENSION CASTER ADJUST, RH

main48191-37040iBU306,346,XZU306,307,337,346,347199905-200406

48191DPLATE, FRONT SUPENSION CASTER ADJUST, LH

main48192-37080iBU306,346,XZU306,307,337,346,347199905-200406

48195SHIM, CAMBER ADJUST

main90905-65001iBU306,346,XZU306,307,337,346,347199905-200406

main90905-65002iBU306,346,XZU306,307,337,346,347199905-200406

main90905-65003iXZU306,308,336,338,346,348,368,378,388200406-200610

main90905-65004iXZU306,308,336,338,346,348,368,378,388200406-200610

48332BUMPER, FRONT SPRING, NO.2

main48332-37010×4iBU306,346,XZU306,307,337,346,347199905-200206

48610DNUT(FOR SUSPENSION UPPER ARM)

main90171-18003×2iBU306,346,XZU306,307,337,346,347199905-200406

48632ABUSH, FRONT SUSPENSION UPPER ARM, RH

main48632-37020×2iXZU306,308,336,338,346,348,368,378,388200406-200610

48632BBUSH, FRONT SUSPENSION UPPER ARM, LH

main48632-37020×2iXZU347..DCB..5F;XZU306..DSLL..CBU;XZU306..T5..5F..DSL;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346;XZU306,347..SCB..(T2,T3,T4)..DSL199905-200406

48633ASEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, RH

main48633-37010×2iXZU306..5F..DSLL..IV3200210-200406

48633BSEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, LH

main48633-37010×2iXZU306..DSLL;XZU306..T5..4FC;XZU347..DCB..T3..4FC199905-200206

5151FRAME

→ Go to FIG 51-51

9011916008

main90119-16008

9017012009

main90170-12009

9017912128

main90179-12128

9025204001

main90252-04001

9025204005

main90252-04005

9034506014

main90345-06014

9052056004

main90520-56004

9090109005

main90901-09005

9165160830

main91651-60830

9415080800

main94150-80800

9462241200

main94622-41200

36 parts on this diagram · 6 diagrams in section
