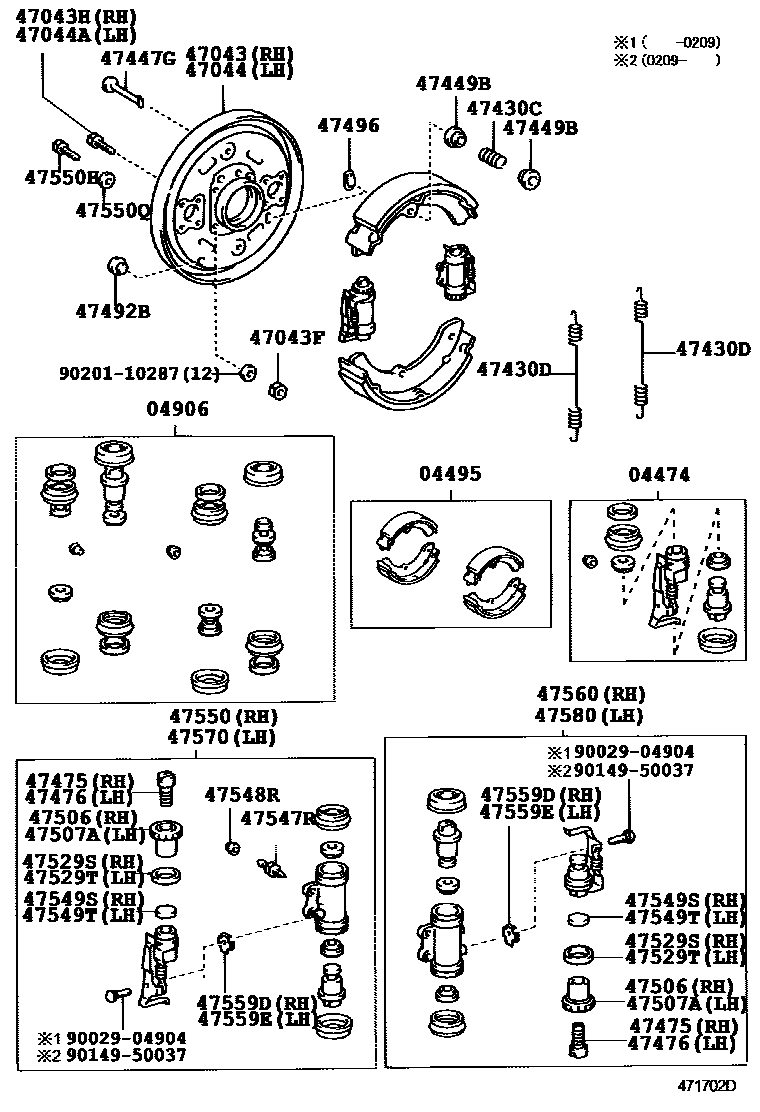

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0006 1 0007 1 0008 1

04474CYLINDER KIT, REAR WHEEL

main04468-37030iXZU368,378,388;XZU341..T3..20T;BZU300,XZU301,304..T4..30T;BZU340,RZU300,XZU31#,331,334,341,344..30T;BZU300,XZU30#,321,346..(DM3,DM6,DM7,T3,T5)..WT200406-200705

main04468-37040iXZU306,308,336,338,346,348..03S,06S,T4;BZU300,340,RZU30#,340,XZU301,304,334,341,344,35#..(DM5,T2,T4)..20T200406-200705

main04468-37060iXZU306,308,336,338,346,348,351..DM2,T2200406-200610

main04474-36040×2iXZU305;XZU304..DSLL..1NO;XZU304..30T..DCRL..1NO;XZU304,344..(T4,T5)..30T200310-200406

main04474-36041×2iXZU301,341,362,372,382;BZU300,XZU302..T4..(295T,30T);RZU300,XZU300,312,331,340..30T;BU30#,346,BZU300,340,XZU302,306,307,311,32#,330,342,346,347,371..(DM3,DM5,DM6,DM7,DM8,T1,T3,T5)..(175T,20T,30T)200307-200406

main04474-36050×2iXZU305;XZU304..DSLL..1NO;XZU304..30T..DCRL..1NO;XZU304,344..(T4,T5)..30T200310-200406

main04474-36051×2iXZU304..20T..DCRL..1NO200310-200406

main04474-37090×2iBU306,346,XZU307,337,347,351,352..DM2,T2199905-200406

main04474-37100×2iBU306,346,XZU307,337,347,351,352..DM2,T2199905-200406

main04474-37110×2iRZU300..20T;BU30#,346,BZU300,340,RZU301,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM5,T4)..20T199905-200406

main04474-37120×2iRZU300..20T;BU30#,346,BZU300,340,RZU301,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM5,T4)..20T199905-200406

main04474-37150×2iXZU330,340,350..35T,40T199906-200206

main04474-37160×2iXZU330,340,350..35T,40T199906-200206

main04474-37190iXZU330,340,350..35T,40T200206-200211

main04474-37191iXZU330,340,350..35T,40T200211-200406

main04474-37200iXZU330,340,350..35T,40T200206-200211

main04474-37201iXZU330,340,350..35T,40T200211-200406

main04474-37240iXZU368,378,388;XZU341..T3..20T;BZU300,XZU301,304..T4..30T;BZU340,RZU300,XZU31#,331,334,341,344..30T;BZU300,XZU30#,321,346..(DM3,DM6,DM7,T3,T5)..WT200406-200705

main04474-37250iXZU306,308,336,338,346,348..03S,06S,T4;BZU300,340,RZU30#,340,XZU301,304,334,341,344,35#..(DM5,T2,T4)..20T200406-200705

main04474-37270iXZU306,308,336,338,346,348,351..DM2,T2200406-200610

04495SHOE KIT, REAR BRAKE

main04494-36160iXZU306..DSLL200206-200210

main04494-36210iXZU301,331..DSLL..1NO200206-200406

main04494-36280iBZU300,340,RZU30#,340,XZU301,304,306,308,334,336,338,34#,35#..(03S,06S,DM2,DM5,T2,T4)..20T200406-200705

main04495-37020iXZU330,340,350..35T,40T199906-200102

main04495-37021iXZU330,340,350..35T,40T200102-200206

main04495-37040iXZU368,378,388;XZU341..T3..20T;BZU300,XZU301,304..T4..30T;BZU340,RZU300,XZU31#,331,334,341,344..30T;BZU300,XZU30#,321,346..DM3,DM6,DM7,T1,T3,T5200406-200705

main04495-37060iXZU330,340,350..35T,40T200206-200406

04906CUP KIT, REAR WHEEL CYLINDER

main04906-25030iXZU306,308,336,338,346,348,351..DM2,T2200406-200610

main04906-36180iXZU301,341,362,372,382;BZU300,XZU302..T4..(295T,30T);RZU300,XZU300,31#,331,340..30T;BU30#,346,BZU300,340,XZU302,306,307,32#,330,342,346,347,371..(DM3,DM6,DM7,DM8,T1,T3,T5)..(175T,20T,30T)199905-200307

main04906-36181iXZU368,378,388;XZU341..T3..20T;BZU300,XZU301,304..T4..30T;BZU340,RZU300,XZU31#,331,334,341,344..30T;BZU300,XZU30#,321,346..DM3,DM6,DM7,T1,T3,T5200406

main04906-36211iXZU306,308,336,338,346,348..03S,06S,T4;BZU300,340,RZU30#,340,XZU301,304,334,341,344,35#..(DM5,T2,T4)..20T200406

main04906-37070iBU306,346,XZU307,337,347,351,352..DM2,T2199905-200406

main04906-37080iXZU330,340,350..35T,40T199906-200206

main04906-37100iXZU330,340,350..35T,40T200206-200211

main04906-37101iXZU330,340,350..35T,40T200211-200406

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-37050iBU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(DM2,DM5,T2,T4)..20T199905-200406

main47043-37060iXZU368,378,388;XZU341..T3..20T;BZU300,XZU301,304..T4..30T;BZU340,RZU300,XZU31#,331,334,341,344..30T;BZU300,XZU30#,321,346..(DM3,DM6,DM7,T3,T5)..WT200406

main47043-37070iXZU301,304..ST200406-200610

main47043-37090iXZU330,340,350..35T,40T199906-200102

main47043-37091iXZU330,340,350..35T,40T200102-200406

main47043-37120iBU306,XZU307..VAN200306-200406

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main94130-01002×12iBU306,XZU307..VAN; XZU302..T4..20T..DSL;BU30#,RZU301,XZU307,351,352..SCB..(DM5,T4)..5F; XZU322..T5..4FC;XZU306..T5..DSLL;XZU347..DCB..T3..4FC;XZU301..DM3..4FC..30T;XZU301,302..T4..DSL..1NO;XZU301,331..5F..DSLL..IV4;BU301,XZU311,320,321..1NO;XZU301,302,341,342..CNG,LPG;XZU31#,321..SCB..(DM5,DM8)..20T; XZU347..SCB;XZU321..DM7..4NO;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU302..DM3,DM6,T3,T5;XZU301..(DM3,T4)..5F..4NO;XZU301..5F..DSLL..IV3..1NO;BU306,XZU307,312,347..DCB..5F;XZU301,307..(DM6,T2,T3,T5)..DSL;RZU300,XZU341,342..DSL,DSLL,EFI;RZU300,XZU312,331..30T..(DSL,LPG);RZU301,XZU301,331..4FC..(DSLL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;XZU301,307,352..(DM3,DM5,T4)..4FC..20T;BU30#,XZU306,322,330,351,352,371..(DM2,T1,T2,T3,T5)..5F..(175T,20T,30T)..DSL;BU346,BZU300,340,RZU340,XZU300,306,322,337,340,346,362,372,382..(DM5,DM6,DM7,DM8,T2,T3,T4)..(20T,30T)199905-200406

main94130-01441×4iXZU330,340,350..35T,40T199906-200406

47043HBOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH)

main90101-14032×4iXZU330,340,350..35T,40T199906-200406

main90114-10063×6iXZU304,305,344200310-200406

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-37050iXZU304,344..T4..20T200310-200406

main47044-37060iXZU368,378,388;XZU341..T3..20T;BZU300,XZU301,304..T4..30T;BZU340,RZU300,XZU31#,331,334,341,344..30T;BZU300,XZU30#,321,346..(DM3,DM6,DM7,T3,T5)..WT200406

main47044-37070iBU301,XZU302..ST199907-200406

main47044-37090iXZU330,340,350..35T,40T199906-200102

main47044-37091iXZU330,340,350..35T,40T200102-200406

main47044-37120iBU306,XZU307..VAN200306-200406

47044ABOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH)

main90101-14032×4iXZU330,340,350..35T,40T199906-200406

main90114-10063×6iBU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T199905-200406

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012×4iBU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T199905-200406

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-12085×4iXZU330,340,350..35T,40T200206-200406

main90506-29006×4iBU30#,346,BZU300,340,RZU30#,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T199905-200406

main90507-29006×4iXZU304,344..T4..30T;XZU304,305..DM6,T3,T5200310-200406

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-35020×4iXZU304,344..T4..20T200310-200406

main47447-36020×4iBU301,XZU302..ST199907-200406

main47447-60010×4iXZU368,378,388;XZU341..T3..20T;BZU300,XZU301,304..T4..30T;BZU340,RZU300,XZU31#,331,334,341,344..30T;BZU300,XZU30#,321,346..(DM3,DM6,DM7,T3,T5)..WT200406

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iBU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T199905-200406

47475BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)

main47553-36070×2iXZU304,305,344200310-200406

main47553-37070iXZU306,308,336,338,346,348,351..DM2,T2200406-200610

main47553-37110×2iXZU330,340,350..35T,40T200206-200406

47476BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47554-36070×2iXZU304,305,344200310-200406

main47554-37110×2iXZU330,340,350..35T,40T200206-200406

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47491-37040×2iXZU330,340,350..35T,40T199906-200107

main47491-37050×2iXZU330,340,350..35T,40T199906-200107

main47491-37090×8iXZU330,340,350..35T,40T200107-200206

main47492-28010×4iXZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,XZU301,306,331..CNG,DSL,LPG;BU346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T199905-200406

main47492-37010×4iXZU330,340,350..35T,40T199906-200107

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-36010×8iXZU301,331..5F..DSLL..IV4;XZU301,306..(DM6,T5)..5F..DSLL;BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,351,352,362,37#,382..(175T,20T,295T,30T)..(CNG,DSL,EFI,LPG)199905-200112

main47491-36020×8iBZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T200406

main47496-37020×2iXZU330,340,350..35T,40T199906-200406

47506NUT SUB-ASSY, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47506-36020×2iBU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T199905-200406

main47506-37110×2iXZU330,340,350..35T,40T200206-200406

47507ANUT SUB-ASSY, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47507-36020×2iXZU304,344..T4..20T; XZU304,344..T4..30T;XZU304,305..DM6,T3,T5200310-200406

main47507-37110×2iXZU330,340,350..35T,40T200206-200406

47529SSEAL, REAR BRAKE ADJUST NUT DUST, RH

main47529-36010×2iXZU301,331..4FC..DSLL;XZU306..T4..5F..DSLL..IV3;XZU301..5F..DSLL..IV3..1NO200005-200406

47529TSEAL, REAR BRAKE ADJUST NUT DUST, LH

main47529-36010×2iRZU300..20T..LPG;XZU301,302,341,342..CNG,LPG200005-200306

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-27020×2iBU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T199905-200406

main47547-37130×2iXZU330,340,350..35T,40T199906-200206

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iXZU304,305,344200310-200406

main31478-37040×2iBZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T200406

47549SSEAT, REAR BRAKE AUTOMATIC ADJUST NUT, RH

main47549-37091×2iXZU306..T5..DSLL;XZU312..SCB..20T;XZU306,322..T5..4FC;XZU347..DCB..T3..4FC;XZU301..DM3..4FC..30T;XZU301,302..T4..DSL..1NO;BU301,XZU311,320,321..1NO;XZU301,331..5F..DSLL..IV4;XZU311,321..(DM5,DM8)..20T; XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG)199905-200406

main47549-37110×2iXZU330,340,350..35T,40T200206-200406

47549TSEAT, REAR BRAKE AUTOMATIC ADJUST NUT, LH

main47549-37091×2iXZU304,305,344200310-200406

main47549-37110×2iXZU330,340,350..35T,40T200206-200406

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-37090iBU306,346,XZU307,337,347,351,352..DM2,T2199905-200209

main47550-37091iBU306,346,XZU307,337,347,351,352..DM2,T2200209-200406

main47550-37100iRZU300..20T;BU30#,346,RZU340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM5,T4)..20T..(CNG,DSL,EFI,LPG)199905-200209

main47550-37101iXZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;RZU300,XZU306..(T2,T4)..20T..(DSL,EFI,LPG);BU30#,346,BZU300,340,RZU301,340,XZU302,307,312,337,342,346,347,351,352..(03S,06S,DM5,T4)..20T200209-200406

main47550-37111iXZU301..5F..20T..DSLL199905-200206

main47550-37112iXZU304,344..T4..30T;XZU304,305..DM6,T3,T5200310-200406

main47550-37130iXZU330,340,350..35T,40T199906-200206

main47550-37150iXZU330,340,350..35T,40T200206-200406

47550HBOLT(FOR REAR WHEEL CYLINDER)

main90101-08081×16iBZU300,340,RZU30#,340,XZU301,304,306,308,334,336,338,34#,35#..(03S,06S,DM2,DM5,T2,T4)..20T200406

main90101-10127×16iXZU301,331..DSLL..1NO200210-200406

47550QWASHER(FOR REAR WHEEL CYLINDER)

main90201-08002×16iXZU306..T4..DSL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;BU30#,346,BZU300,340,RZU30#,340,XZU302,307,31#,337,342,346,347,351,352..(03S,06S,DM2,DM5,T2,T4)..20T199905-200406

main90201-10287×16iXZU301..5F..20T..DSLL199905-200206

47559DSPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, RH

main47559-36010×2iXZU306..T5..DSLL;XZU312..SCB..20T;XZU306,322..T5..4FC;XZU347..DCB..T3..4FC;XZU301..DM3..4FC..30T;XZU301,302..T4..DSL..1NO;BU301,XZU311,320,321..1NO;XZU301,331..5F..DSLL..IV4;XZU311,321..(DM5,DM8)..20T; XZU322..DM7,DM8;XZU306..4FC..DSLL;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU306..5F..DSLL..CBU;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,352,362,37#,382..(20T,30T)..(CNG,DSL,EFI,LPG)199905-200406

47559ESPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, LH

main47559-36010×2iBZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T200406

47560CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)

main47560-37061iBU306,346,XZU307,337,347,351,352..DM2,T2199905-200209

main47560-37062iBU306,346,XZU307,337,347,351,352..DM2,T2200209-200406

main47560-37071iRZU300..20T;BU30#,346,RZU340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM5,T4)..20T..(CNG,DSL,EFI,LPG)199905-200209

main47560-37072iXZU306..5F..DSLL..IV3200210-200406

main47560-37081iXZU302..T4..(295T,30T);XZU301,331..5F..DSLL..IV4;XZU301,341,362,372,382..CNG,DSL,LPG;RZU300,XZU300,31#,331,340..30T..(DSL,EFI,LPG);BU30#,346,XZU302,306,307,32#,330,342,346,347,371..(DM3,DM6,DM7,DM8,T1,T3,T5)..(175T,20T,30T)199905-200209

main47560-37082iXZU368,378,388;XZU341..T3..20T;BZU300,XZU301,304..T4..30T;BZU340,RZU300,XZU31#,331,334,341,344..30T;BZU300,XZU30#,321,346..DM3,DM6,DM7,T1,T3,T5200406

main47560-37100iXZU330,340,350..35T,40T199906-200206

main47560-37180iXZU330,340,350..35T,40T200206-200406

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-37050iBU306,346,XZU307,337,347,351,352..DM2,T2199905-200209

main47570-37051iBU306,346,XZU307,337,347,351,352..DM2,T2200209-200406

main47570-37060iRZU300..20T;BU30#,346,RZU340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM5,T4)..20T..(CNG,DSL,EFI,LPG)199905-200209

main47570-37061iXZU306..5F..DSLL..IV3200210-200406

main47570-37071iXZU302..T4..(295T,30T);XZU301,331..5F..DSLL..IV4;XZU301,341,362,372,382..CNG,DSL,LPG;RZU300,XZU300,31#,331,340..30T..(DSL,EFI,LPG);BU30#,346,XZU302,306,307,32#,330,342,346,347,371..(DM3,DM6,DM7,DM8,T1,T3,T5)..(175T,20T,30T)199905-200209

main47570-37072iXZU301..DSLL..4NO;XZU341,362,372,382;XZU301..CNG,DSL,LPG;BZU300,XZU302..T4..(295T,30T);RZU300,XZU300,312,331,340..30T..(DSL,EFI,LPG);BU30#,346,BZU300,340,XZU302,306,307,311,32#,330,342,346,347,371..(DM3,DM5,DM6,DM7,DM8,T1,T3,T5)..(175T,20T,30T)200209-200406

main47570-37090iXZU330,340,350..35T,40T199906-200206

main47570-37110iXZU330,340,350..35T,40T200206-200406

47580CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)

main47580-37051iBU306,346,XZU307,337,347,351,352..DM2,T2199905-200209

main47580-37052iBU306,346,XZU307,337,347,351,352..DM2,T2200209-200406

main47580-37061iRZU300..20T;BU30#,346,RZU340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM5,T4)..20T..(CNG,DSL,EFI,LPG)199905-200209

main47580-37062iXZU306,308,336,338,346,348..03S,06S,T4;BZU300,340,RZU30#,340,XZU301,304,334,341,344,35#..(DM5,T2,T4)..20T200406

main47580-37071iXZU301..5F..20T..DSLL199905-200206

main47580-37072iXZU304,344..T4..30T;XZU304,305..DM6,T3,T5200310-200406

main47580-37090iXZU330,340,350..35T,40T199906-200206

main47580-37170iXZU330,340,350..35T,40T200206-200406

9002904904

main90029-04904

9014950037

main90149-50037

9020110287

main90201-10287

35 parts on this diagram · 4 diagrams in section
