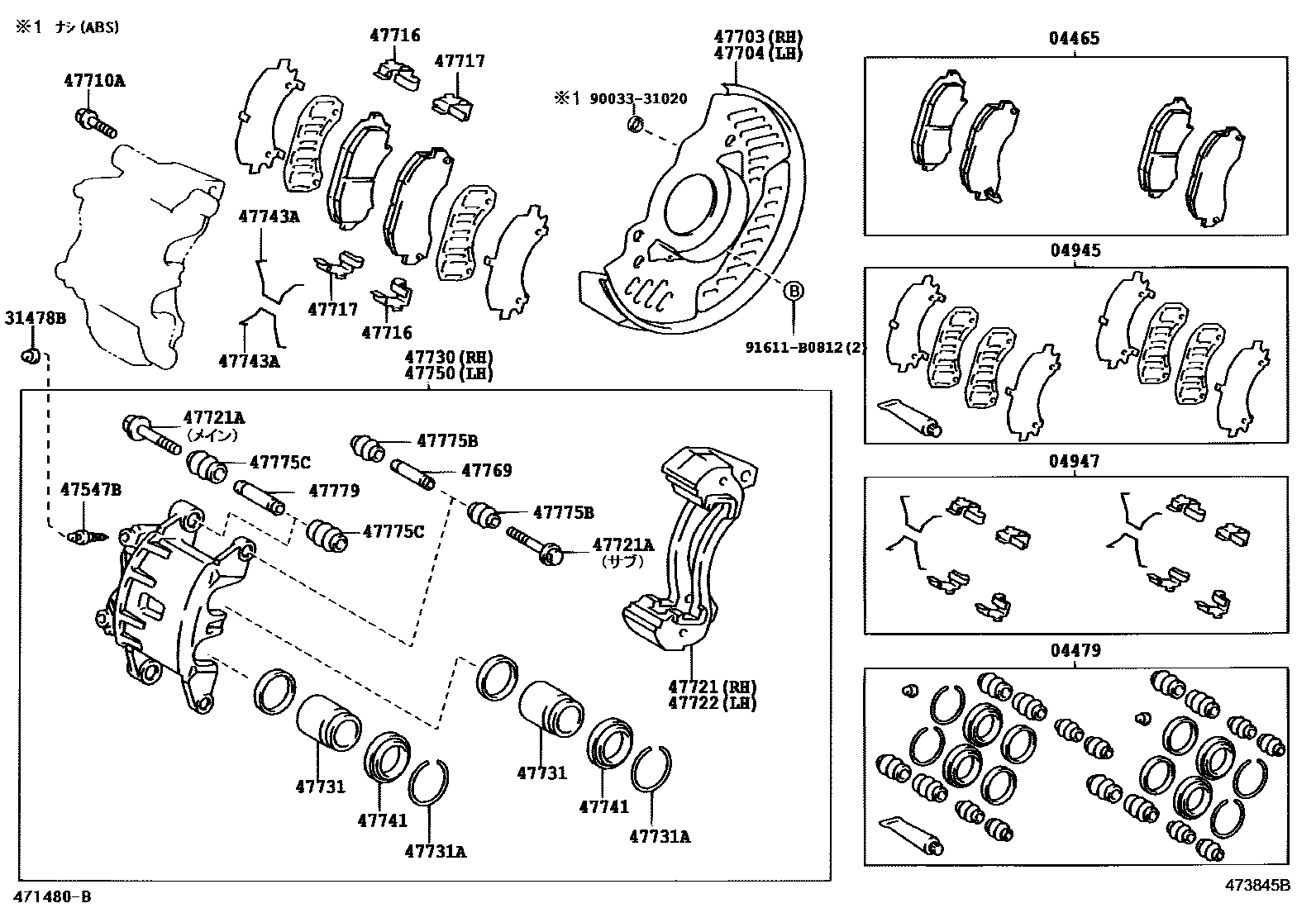

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-37020iXZU306,308,336,338,346,348..03S,06S,T4;BZU300,340,RZU30#,340,XZU301,304,334,341,344,35#..(DM5,T2,T4)..20T200406-200705

main04465-37030iXZU301,341;BU301..DM6,T1,T5;BZU300,XZU302..T4..(295T,30T);RZU300,XZU300,31#,331,340..30T;BU306,346,BZU300,340,XZU302,306,307,32#,330,337,342,346,347,351,352..(DM2,DM3,DM6,DM7,DM8,T2,T3,T5)..(20T,30T)199905-200406

main04465-37040iXZU362,37#,382199907-200406

main04465-37060iBU301..WT..IV3;BZU300,RZU30#,XZU302..SCB..T4..20T..(CNG,EFI,LPG)..IV3200206-200406

main04465-37090iXZU334,344,354..35T,40T200406-200610

main04465-37100iXZU388..T4..DCRL..IV3200505-200610

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-37090iXZU334,344,354..35T,40T200406-200610

main04479-37010iBU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T199905-200406

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-37020iRZU300..20T;BU30#,346,BZU300,340,RZU301,340,XZU302,306,307,31#,337,342,346,347,351,352..(03S,06S,DM5,T4)..20T199905-200406

main04945-37030iXZU368,378,388;XZU341..T3..20T;BZU300,XZU301,304..T4..30T;BZU340,RZU300,XZU31#,331,334,341,344..30T;BZU300,XZU30#,321,336,338,346,348,351..DM2,DM3,DM6,DM7,T1,T2,T3,T5200406

main04945-37050iXZU334,344,354..35T,40T200406-200610

04947FITTING KIT, DISC BRAKE, FRONT

main04947-36020iBZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T200406

main04948-37010iXZU334,344,354..35T,40T200406-200610

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iBU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T199905-200406

main31478-37030×2iXZU334,344,354..35T,40T200607-200610

main31478-37040×2iXZU304,305,344200310-200406

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010×2iBU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T199905-200406

main47547-37120iXZU334,344,354..35T,40T200406-200607

main47847-37030×2iXZU334,344,354..35T,40T200607-200610

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-37030iXZU322..T5..4FC;XZU312..SCB..20T;XZU301..DM3..4FC..30T;XZU301,302..T4..DSL..1NO;BU301,XZU311,320,321..1NO;XZU301,331..5F..DSLL..IV4;XZU311,321..(DM5,DM8)..20T199905-200206

main47703-37040iXZU347..DCB..5F;XZU306..DSLL..CBU;XZU306..T5..5F..DSL;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346;XZU306,347..SCB..(T2,T3,T4)..DSL199905-200311

main47703-37041iBU306,346,XZU306,307,337,346,347200311-200406

main47703-37070iXZU334,344,354..35T,40T200406-200610

main47781-37020iXZU362,37#,382199907-200406

main47781-37090iXZU368,378,388200406-200610

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-37030iXZU304,305,344200310-200406

main47704-37040iXZU347..DCB..5F;XZU306..DSLL..CBU;XZU306..T5..5F..DSL;XZU347..DCB..T4..4FC;XZU306..4FC..DSLL..IV3;BU306,346,XZU307,337,346;XZU306,347..SCB..(T2,T3,T4)..DSL199905-200310

main47704-37041iBU306,346,XZU306,307,337,346,347200311-200406

main47704-37070iXZU334,344,354..35T,40T200406-200610

main47782-37020iXZU362,37#,382199907-200406

main47782-37070iXZU368,378,388200406-200610

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-16071×6iBZU300,340,RZU30#,340,XZU301,304,305,31#,321,331,334,341,344,35#200406-200705

main90105-16072×2iXZU306..5F..DSLL..IV3200210-200310

main90105-16073×2iXZU306..5F..DSLL..IV3200210-200310

main90105-16074×4iXZU362,37#,382199907-200406

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-36020×4iXZU304,305,344200310-200406

main47716-37120×4iXZU334,344,354..35T,40T200406-200610

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-36020×4iBU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T199905-200406

main47717-37120×4iXZU334,344,354..35T,40T200406-200610

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-37020iXZU304,344..T4..20T200310-200406

main47721-37030iXZU341..T3..20T;BZU300,XZU301,304..T4..30T;BZU340,RZU300,XZU31#,331,334,341,344..30T;BZU300,XZU301,304,305,321,351..DM2,DM3,DM6,DM7,T1,T3,T5200406

main47721-37040iXZU362,37#,382199907-200406

main47721-37050iBU306,346,XZU306,307,337,346,347..03S,06S,T4199905-200406

main47721-37060iBU306,346,XZU306,307,337,346,347..T2,T3,T5199905-200406

main47721-37160iXZU334,344,354..35T,40T200406-200610

main47721-37180iXZU368,378,388;XZU306,308,336,338,346,348..T2,T3,T5200406-200610

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-37120×4iXZU334,344,354..35T,40T200406-200610

main90119-08B87×4iBZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T200406

main90119-12256×4iBU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T199905-200406

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-37040iXZU362,37#,382199907-200406

main47721-37050iBU306,346,XZU306,307,337,346,347..03S,06S,T4199905-200406

main47721-37060iBU306,346,XZU306,307,337,346,347..T2,T3,T5199905-200406

main47721-37180iXZU368,378,388;XZU306,308,336,338,346,348..T2,T3,T5200406-200610

main47722-37010iBZU300,340,RZU30#,340,XZU301,304,334,341,344,35#..(DM5,T2,T4)..20T200406

main47722-37020iXZU341..T3..20T;BZU300,XZU301,304..T4..30T;BZU340,RZU300,XZU31#,331,334,341,344..30T;BZU300,XZU301,304,305,321,351..DM2,DM3,DM6,DM7,T1,T3,T5200406

main47722-37160iXZU334,344,354..35T,40T200406-200610

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-37010iXZU306,308,336,338,346,348..03S,06S,T4200406-200610

main47730-37020iBZU300,340,RZU30#,340,XZU301,304,334,341,344,35#..(DM5,T2,T4)..20T200406

main47730-37030iXZU341..T3..20T;BZU300,XZU301,304..T4..30T;BZU340,RZU300,XZU31#,331,334,341,344..30T;BZU300,XZU301,304,305,321,351..DM2,DM3,DM6,DM7,T1,T3,T5200406

main47730-37040iXZU362,37#,382199907-200406

main47730-37050iBU306,346,XZU306,307,337,346,347..03S,06S,T4199905-200206

main47730-37060iBU306,346,XZU306,307,337,346,347..T2,T3,T5199905-200206

main47730-37070iBU306,346,XZU306,307,337,346,347..T2,T3,T5200206-200406

main47730-37160iXZU334,344,354..35T,40T200406-200610

main47730-37180iXZU368,378,388;XZU306,308,336,338,346,348..T2,T3,T5200406-200610

47731PISTON, FRONT DISC BRAKE

main47731-37010×4iBU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T199905-200406

main47731-37120×4iXZU334,344,354..35T,40T200406-200610

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001×4iBU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T199905-200406

47741BOOT, FRONT DISC BRAKE CYLINDER

main47741-37010×4iXZU304,305,344200310-200406

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-36020×4iBU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T199905-200406

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-37010iBU306,346,XZU306,307,337,346,347..(03S,06S,T4)..DSL200206-200210

main47750-37020iBU301,BZU300,340,RZU30#,340,XZU302,31#,342,351,352..(DM5,T2,T4)..20T199905-200406

main47750-37030iXZU304,344..T4..30T;XZU304,305..DM6,T3,T5200310-200406

main47750-37040iXZU362,37#,382199907-200406

main47750-37050iBU306,346,XZU306,307,337,346,347..03S,06S,T4199905-200206

main47750-37060iBU306,346,XZU306,307,337,346,347..T2,T3,T5199905-200206

main47750-37070iBU306,346,XZU306,307,337,346,347..T2,T3,T5200206-200406

main47750-37160iXZU334,344,354..35T,40T200406-200610

main47750-37180iXZU368,378,388;XZU306,308,336,338,346,348..T2,T3,T5200406-200610

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-36030×4iBU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T199905-200406

47775BBOOT, BUSH DUST, NO.1

main47775-36040×8iBZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T200406

main47775-37120×2iXZU334,344,354..35T,40T200406-200610

47775CBOOT, BUSH DUST, NO.2

main47775-36050×8iBU30#,346;BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T199905-200406

main47775-37120×2iXZU334,344,354..35T,40T200406-200610

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-36010×4iBZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T200406

9003331020

main90033-31020

91611B0812

main91611-B0812
