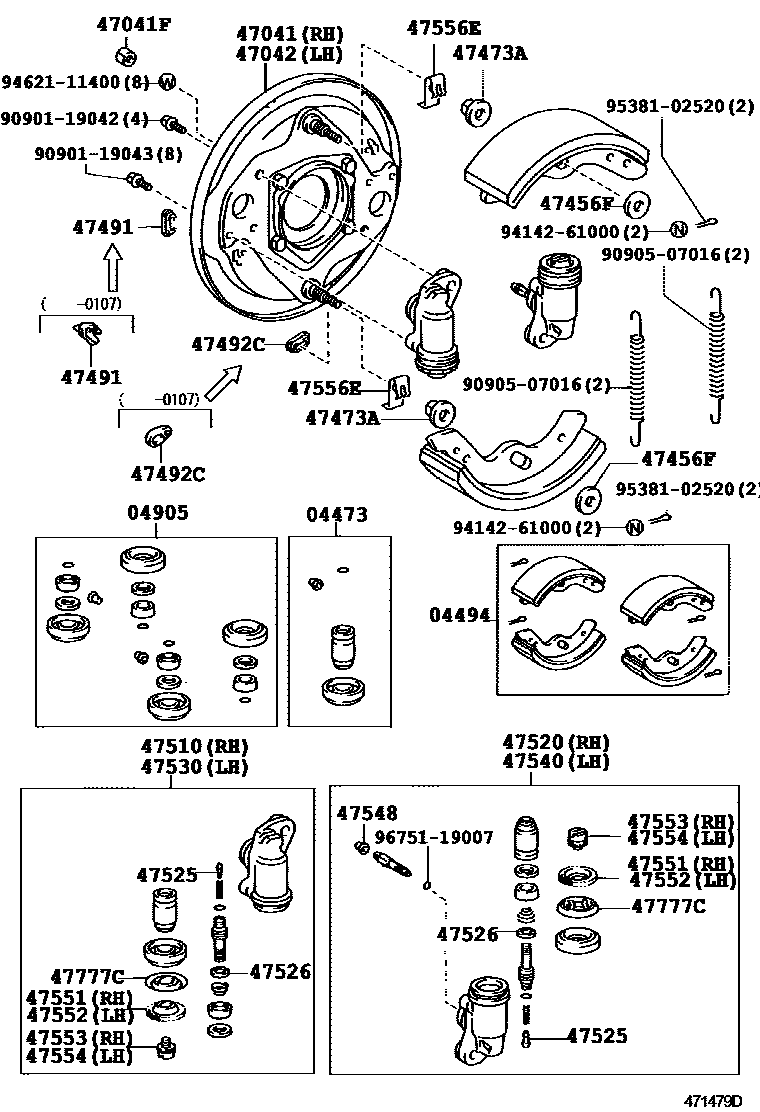

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04473CYLINDER KIT, FRONT WHEEL

main04473-37050×2iXZU330,340,350..35T,40T199906-200206

main04473-37060×2iXZU330,340,350..35T,40T199906-200206

main04473-37090iXZU330,340,350..35T,40T200206-200211

main04473-37091iXZU330,340,350..35T,40T200211

main04473-37100iXZU330,340,350..35T,40T200206-200211

main04473-37101iXZU330,340,350..35T,40T200211

04494SHOE KIT, FRONT BRAKE

main04494-37020iXZU330,340,350..35T,40T199906-200102

main04494-37021iXZU330,340,350..35T,40T200102

04905CUP KIT, FRONT WHEEL CYLINDER

main04905-37050iXZU330,340,350..35T,40T199906-200206

main04905-37070iXZU330,340,350..35T,40T200206-200211

main04905-37071iXZU330,340,350..35T,40T200211

47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

main47041-37110iXZU330,340,350..35T,40T200206

main47041-37111iXZU330,340,350..35T,40T200102-200206

47041FNUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main94130-01441×8iXZU330,340,350..35T,40T199906-200406

47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

main47042-37110iXZU330,340,350..35T,40T199906-200102

main47042-37111iXZU330,340,350..35T,40T200102-200206

47456FPLATE, FRONT BRAKE SHOE GUIDE

main47456-37010×4iXZU330,340,350..35T,40T199906

47473ANUT, FRONT BRAKE SHOE ADJUSTING

main47473-37020×4iXZU330,340,350..35T,40T199906

47491PLUG, HOLE(FOR FRONT BRAKE)

main47491-37070×2iXZU330,340,350..35T,40T199906-200107

main47491-37080×2iXZU330,340,350..35T,40T199906-200107

main47491-37090×4iXZU330,340,350..35T,40T200107-200206

47492CPLUG, HOLE(FOR FRONT BRAKE)

main47491-37090×4iXZU330,340,350..35T,40T200107-200206

main47492-37010×4iXZU330,340,350..35T,40T200206-200406

47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

main47510-37070iXZU330,340,350..35T,40T199906-200206

main47510-37110iXZU330,340,350..35T,40T200206

47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

main47520-37090iXZU330,340,350..35T,40T199906-200206

main47520-37130iXZU330,340,350..35T,40T200206

47525PIN, WHEEL CYLINDER ADJUSTER

main47525-37010×4iXZU330,340,350..35T,40T199906-200206

47526RING, AUTOMATIC ADJUSTER

main47526-37010×2iXZU330,340,350..35T,40T199906-200206

main47526-37020×2iXZU330,340,350..35T,40T199906-200206

47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

main47530-37070iXZU330,340,350..35T,40T199906-200206

main47530-37110iXZU330,340,350..35T,40T200206

47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

main47540-37090iXZU330,340,350..35T,40T199906-200206

main47540-37130iXZU330,340,350..35T,40T200206

47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

main31478-30010×2iXZU330,340,350..35T,40T199906-200206

main31478-37040×2iXZU330,340,350..35T,40T200310-200406

47551NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47506-37110×2iXZU330,340,350..35T,40T200206

main47552-37070×2iXZU330,340,350..35T,40T199906-200206

47552NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47507-37110×2iXZU330,340,350..35T,40T200206

main47552-37070×2iXZU330,340,350..35T,40T199906-200206

47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47445-37040×2iXZU330,340,350..35T,40T199906-200206

main47553-37110×2iXZU330,340,350..35T,40T200206

47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47445-37040×2iXZU330,340,350..35T,40T199906-200206

main47554-37110×2iXZU330,340,350..35T,40T200206

47556ESPRING, ADJUSTER LOCK(FOR FRONT BRAKE)

main47556-37010×4iXZU330,340,350..35T,40T199906

47777CPROTECTOR, DUST BOOT

main47777-37010×4iXZU330,340,350..35T,40T199906-200206

9090119042

main90901-19042

9090119043

main90901-19043

9090507016

main90905-07016

9414261000

main94142-61000

9462111400

main94621-11400

9538102520

main95381-02520

9675119007

main96751-19007

30 parts on this diagram · 2 diagrams in section
